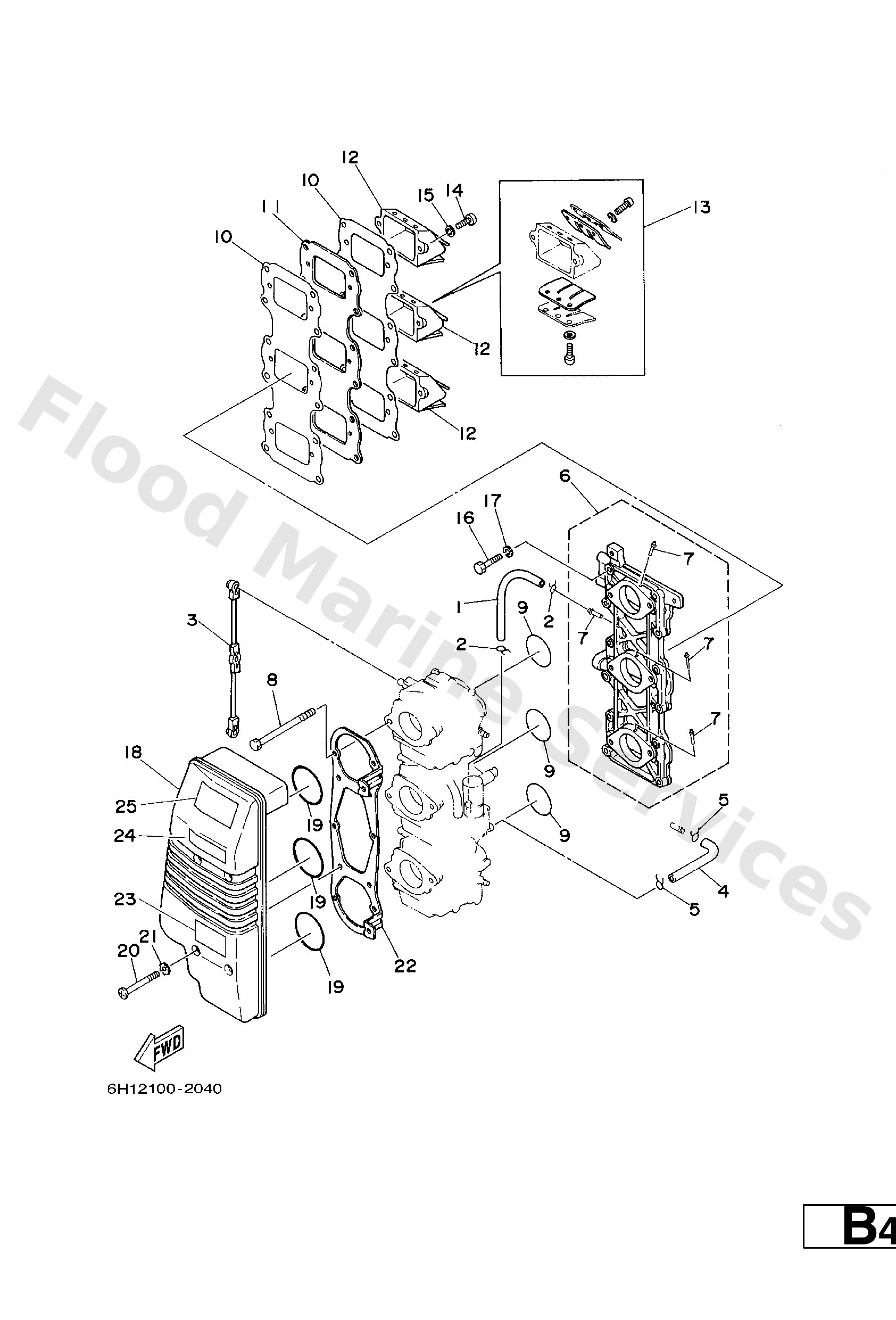

Diagram: INTAKE

Diagram

Parts List

90445--07M23
Hose (l570)
Diagram Reference: 1
Get Part
90467--06016
Clip (655)
Diagram Reference: 2
Get Part
688--41217--01
Rod, accel. lever
Diagram Reference: 3
Get Part
6H3--14349--00
Pipe
Diagram Reference: 4
Get Part
90467--08004
Clip, pipe 6162435600
Diagram Reference: 5
Get Part
6H1136410294
Manifold, intake 1 & hose
Diagram Reference: 6
Get Part
6H1--14485--00
Pipe, joint
Diagram Reference: 7
Get Part
97095--06095
Bolt, hexagon deep recess
Diagram Reference: 8
Get Part
93210--39ME4
O-ring(6h2)
Diagram Reference: 9
Get Part
688--13621--A1
Gasket, valve seat
Diagram Reference: 10
Get Part
688--13624--00
Plate, reed valve
Diagram Reference: 11
Get Part
688--13610--00
Reed valve assembly
Diagram Reference: 12
Get Part
688--W0004--00
Reed set
Diagram Reference: 13
Get Part
97880--05020
Screw, pan head (e22)
Diagram Reference: 14
Get Part
92990--05100
Ybs67-5 washer, spring
Diagram Reference: 15
Get Part
97013--06030
Bolt
Diagram Reference: 16
Get Part
92903--06100
Washer(6a1)
Diagram Reference: 17
Get Part
6H1--14440--02
Silencer assembly
Diagram Reference: 18
Get Part
93210--46044
O-ring
Diagram Reference: 19
Get Part
97885--06050
Screw pan head
Diagram Reference: 20
Get Part
90209--06M05
Washer (688)
Diagram Reference: 21
Get Part
6H1--14413--02
Stay
Diagram Reference: 22
Get Part
6H1--85711--60
Mark, caution
Diagram Reference: 23
Get Part
6A1--83625--41
Mark 5
Diagram Reference: 24
Get Part
6A1--83625--51
Mark 5
Diagram Reference: 25
Get Part
