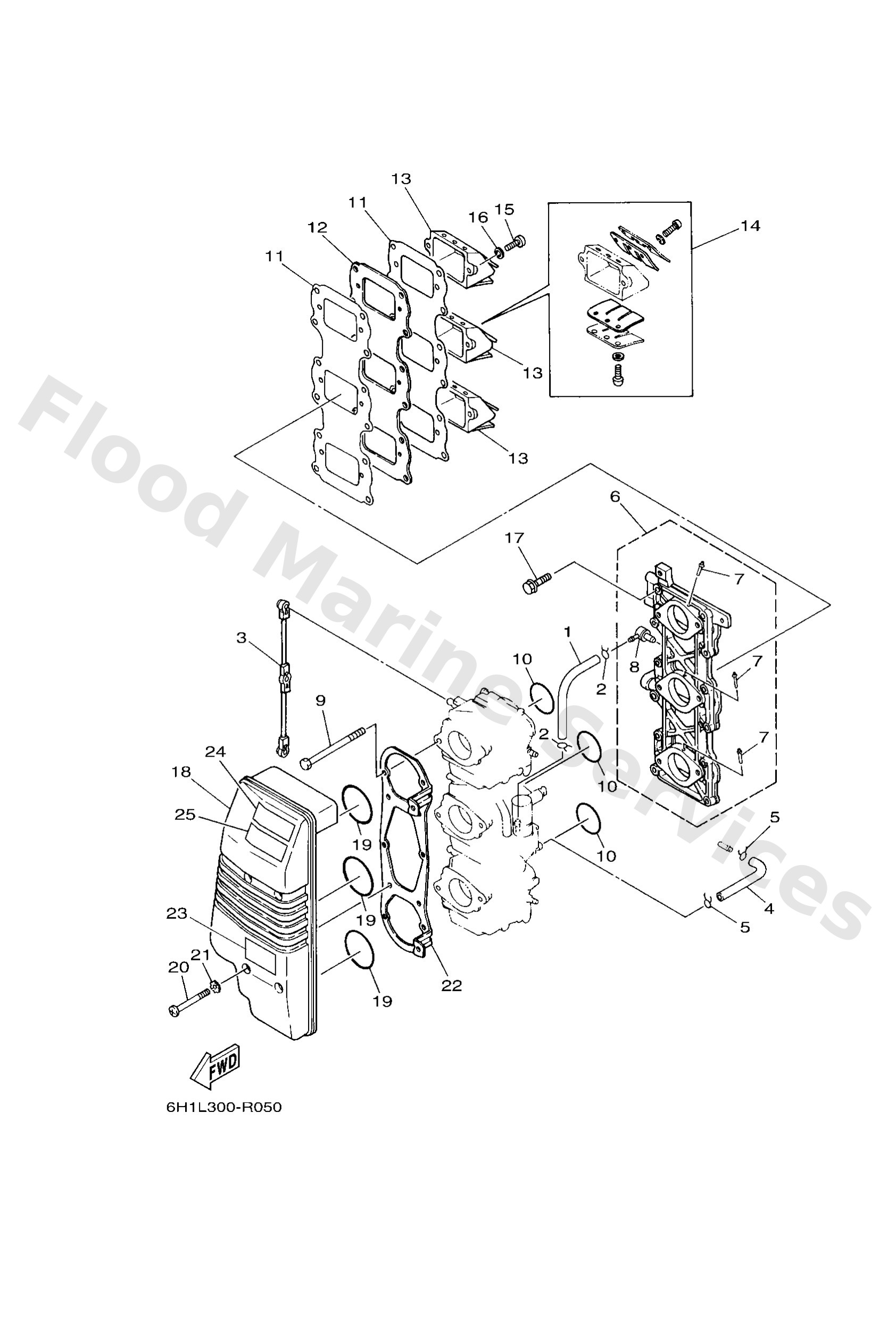

Diagram: INTAKE

Diagram

Parts List

9044507MA5
Hose (l200)
Diagram Reference: 1
Get Part
9046706016
Clip (655)
Diagram Reference: 2
Get Part
6884121701
Rod, accel. lever
Diagram Reference: 3
Get Part
6H31434900
Pipe
Diagram Reference: 4
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 5
Get Part
6H11364103
Manifold, intake 1
Diagram Reference: 6
Get Part
6H11448500
Pipe, joint
Diagram Reference: 7
Get Part
6501448503
Pipe, joint
Diagram Reference: 8
Get Part
9709506095
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
9321039ME4
O-ring(6h2)
Diagram Reference: 10
Get Part
68813621A1
Gasket, valve seat
Diagram Reference: 11
Get Part
6881362400
Plate, reed valve
Diagram Reference: 12
Get Part
6881361000
Reed valve assembly
Diagram Reference: 13
Get Part
688W000400
Reed set
Diagram Reference: 14
Get Part
9788005020
Screw, pan head (e22)
Diagram Reference: 15
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 16
Get Part
9751306530
Bolt, with washer(63m)
Diagram Reference: 17
Get Part
6H11444002
Silencer assembly
Diagram Reference: 18
Get Part
9321046044
O-ring
Diagram Reference: 19
Get Part
9788506050
Screw pan head
Diagram Reference: 20
Get Part
9020906M05
Washer (688)
Diagram Reference: 21
Get Part
6H11441302
Stay
Diagram Reference: 22
Get Part
6H18571160
Mark, caution
Diagram Reference: 23
Get Part
6EE8199440
Label, safety
Diagram Reference: 24
Get Part
6EE8199450
Label, safety
Diagram Reference: 25
Get Part
