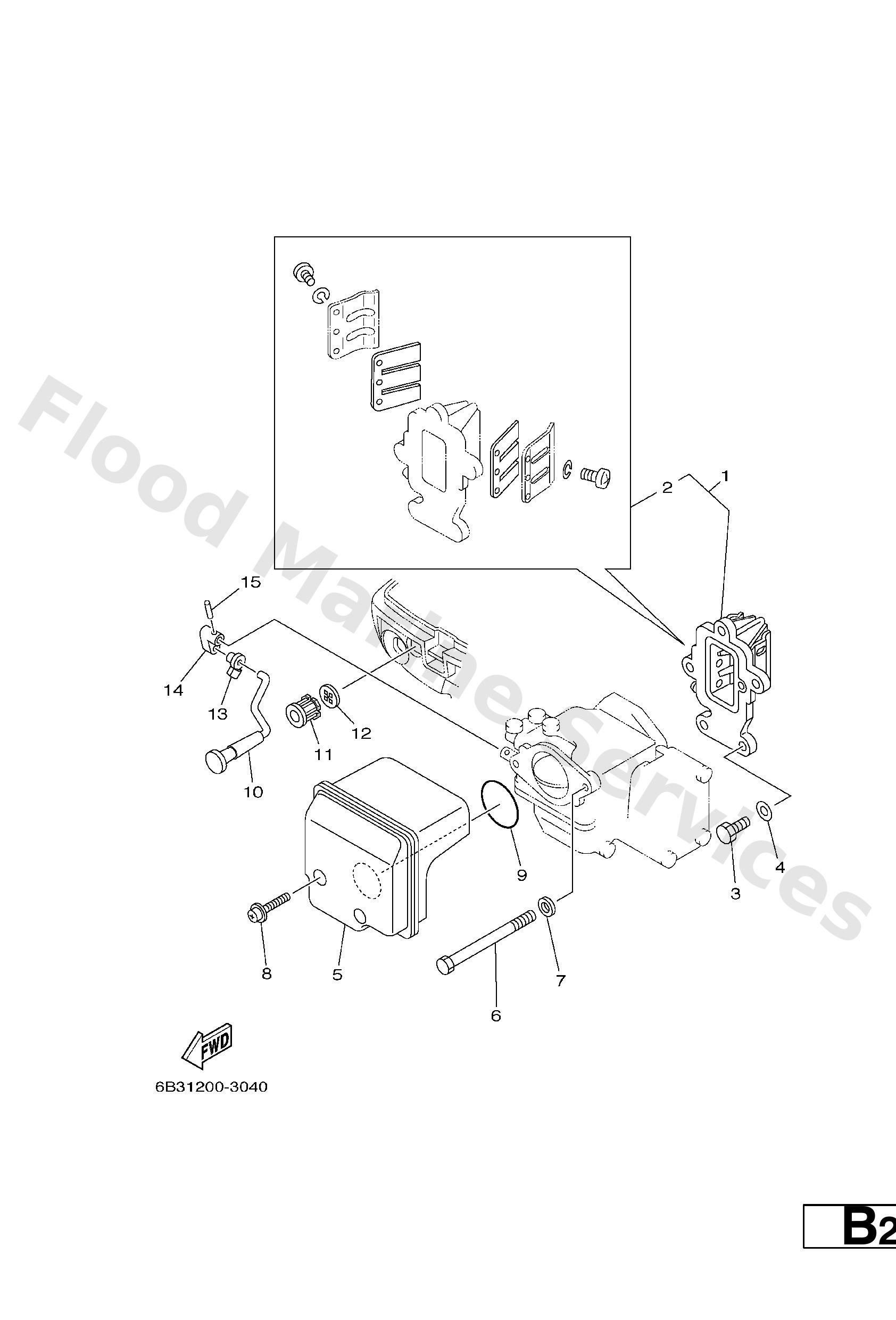

Diagram: INTAKE

Diagram

Parts List

63V−13610−10
Reed valve assembly
Diagram Reference: 1
Get Part
63W−13610−00
Reed valve assembly
Diagram Reference: 1
Get Part
682−W0004−00
Reed set
Diagram Reference: 2
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 3
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 4
Get Part
6B4−14440−00
Silencer assembly, intake
Diagram Reference: 5
Get Part
97095−06095
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
90159−05007
Screw, with washer
Diagram Reference: 8
Get Part
93210−35M86
O-ring(6l2)
Diagram Reference: 9
Get Part
6B4−41271−00
Knob, choke
Diagram Reference: 10
Get Part
6B4−41273−00
Grommet
Diagram Reference: 11
Get Part
6B4−41274−00
Grommet 2
Diagram Reference: 12
Get Part
6B4−41262−00
Joint, choke lever
Diagram Reference: 13
Get Part
6B4−41252−00
Lever, choke 1
Diagram Reference: 14
Get Part
91690−20010
Pin, spring
Diagram Reference: 15
Get Part
