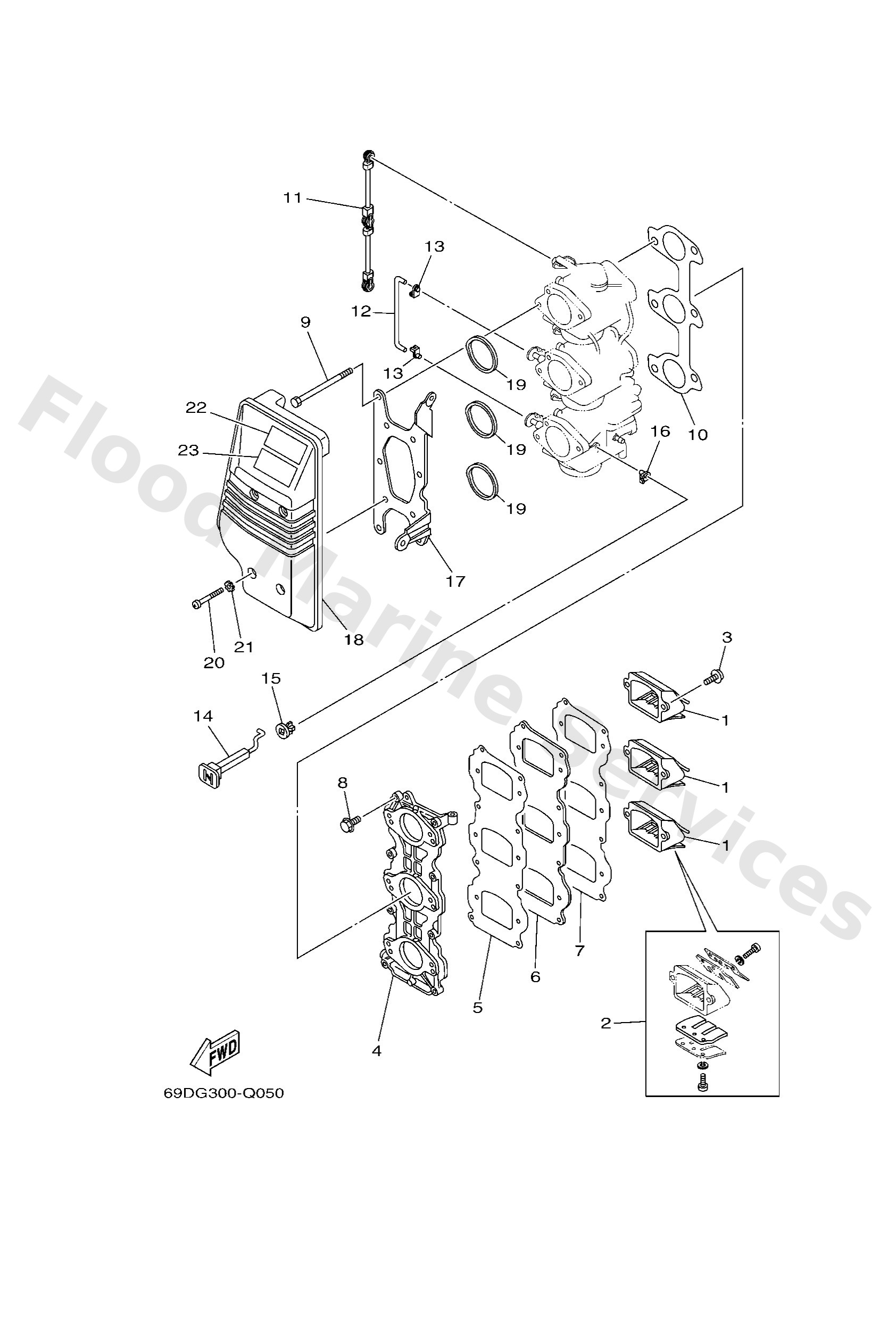

Diagram: INTAKE

Diagram

Parts List

6H21361000
Reed valve assembly
Diagram Reference: 1
Get Part
688W000400
Reed set
Diagram Reference: 2
Get Part
9798005216
Screw, pan w/ plain
Diagram Reference: 3
Get Part
6H31364104
Manifold, intake 1
Diagram Reference: 4
Get Part
6H313621A1
Gasket, valve seat
Diagram Reference: 5
Get Part
6H31362400
Plate, reed valve
Diagram Reference: 6
Get Part
6H313622A1
Gasket, valve seat
Diagram Reference: 7
Get Part
9011906MA3
Bolt, with washer
Diagram Reference: 8
Get Part
9709506095
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
6H314198A1
Gasket
Diagram Reference: 10
Get Part
6H34121700
Rod, accel lever
Diagram Reference: 11
Get Part
6H34125700
Rod, choke link 2
Diagram Reference: 12
Get Part
6614126202
Joint, choke lever
Diagram Reference: 13
Get Part
6H34127101
Knob, choke
Diagram Reference: 14
Get Part
6894127300
Grommet
Diagram Reference: 15
Get Part
6H31441311
Stay
Diagram Reference: 17
Get Part
6H31444002
Silencer assembly, intake
Diagram Reference: 18
Get Part
6H31445701
Seal
Diagram Reference: 19
Get Part
9788506045
Screw, pan head(6b0)
Diagram Reference: 20
Get Part
9020906M05
Washer (688)
Diagram Reference: 21
Get Part
6EE8199440
Label, safety
Diagram Reference: 22
Get Part
6EE8199450
Label, safety
Diagram Reference: 23
