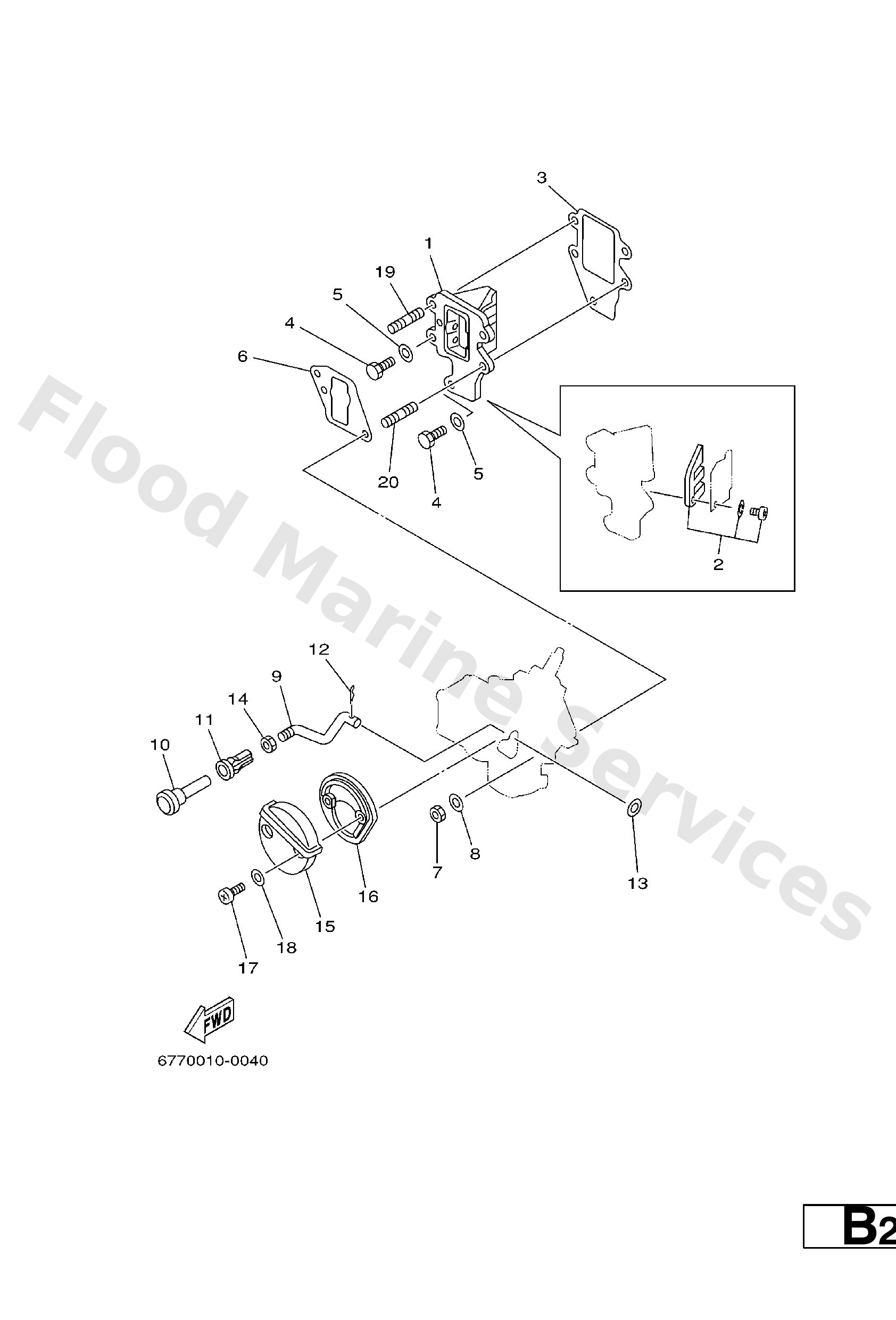

Diagram: INTAKE
Parts List
Reed valve assembly
Diagram Reference: 1
Reed set
Diagram Reference: 2
Gasket, valve seat
Diagram Reference: 3
Bolt, hexagon
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 5
Gasket
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 8
Rod, choke link 1
Diagram Reference: 9
Knob, choke 1
Diagram Reference: 10
Grommet 1 (677)
Diagram Reference: 11
Clip 626412360000
Diagram Reference: 12
Washer, plain (646)
Diagram Reference: 13
Nut(6l4)
Diagram Reference: 14
Silencer 1
Diagram Reference: 15
Silencer 2
Diagram Reference: 16
Screw, pan head (e22)
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Bolt, stud(6e0)
Diagram Reference: 19
Bolt, stud (682)
Diagram Reference: 20
