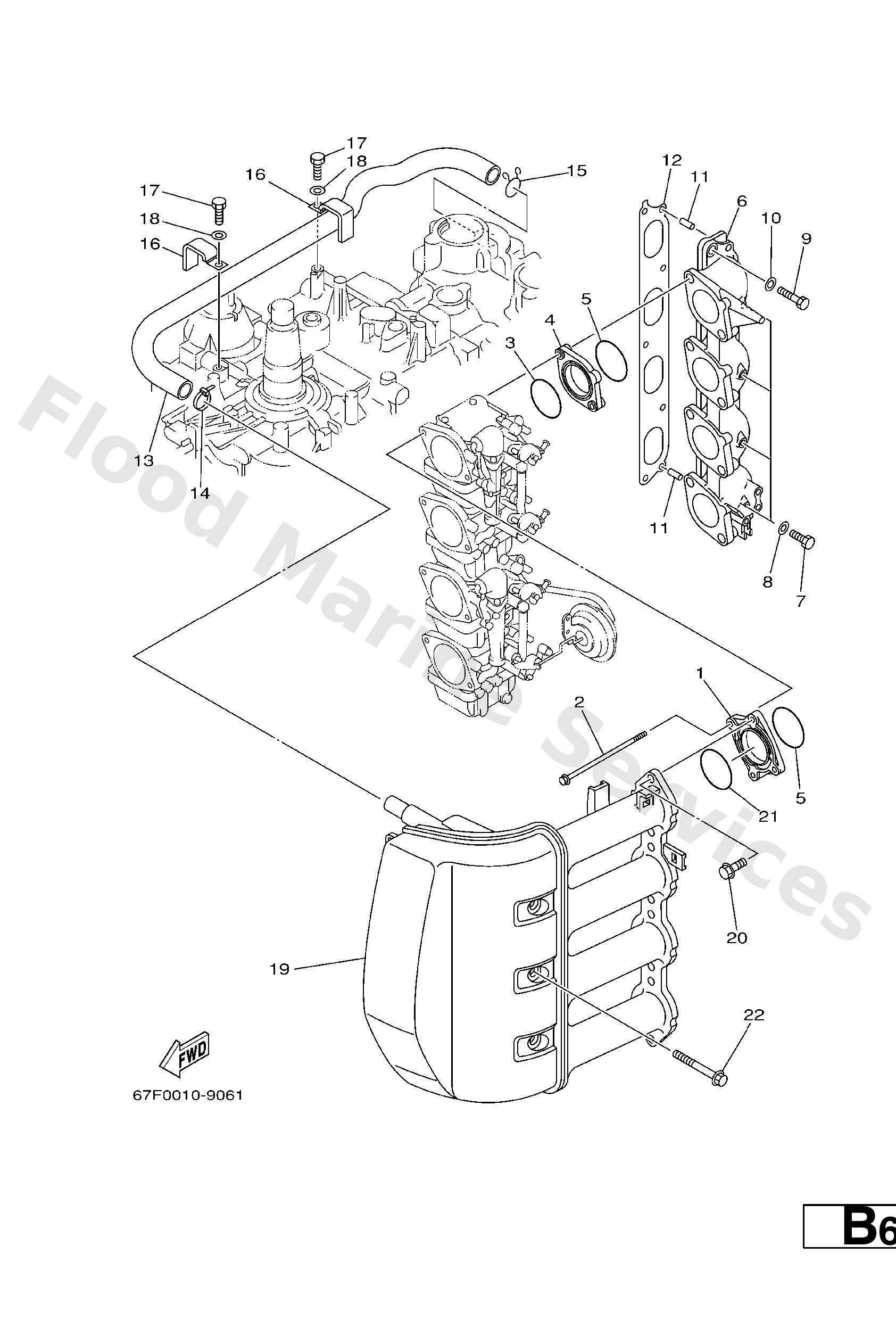

Diagram: INTAKE

Diagram

Parts List

67F−14243−00
Plate
Diagram Reference: 1
Get Part
67F−14216−00
Screw
Diagram Reference: 2
Get Part
67F−14239−00
Seal
Diagram Reference: 3
Get Part
67F−14271−00
Insulator
Diagram Reference: 4
Get Part
93210−40M10
O-ring (682)
Diagram Reference: 5
Get Part
67F−13641−00−94
Manifold 1
Diagram Reference: 6
Get Part
97095−06010
Bolt
Diagram Reference: 7
Get Part
90430−06014
Gasket 256113960000
Diagram Reference: 8
Get Part
97075−08035
Bolt(70w)
Diagram Reference: 9
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 10
Get Part
91690−50014
Pin, spring (647)
Diagram Reference: 11
Get Part
67F−13645−00
Gasket, manifold 1
Diagram Reference: 12
Get Part
67F−15373−00
Pipe, breather
Diagram Reference: 13
Get Part
90465−11M10
Clamp
Diagram Reference: 14
Get Part
90467−20M15
Clip
Diagram Reference: 15
Get Part
90465−12M03
Clamp, cord (688)
Diagram Reference: 16
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 17
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 18
Get Part
67F−14440−00
Silencer assembly, intake
Diagram Reference: 19
Get Part
90119−06M82
Bolt, with washer
Diagram Reference: 20
Get Part
93210−41MJ2
O-ring
Diagram Reference: 21
Get Part
90119−08M59
Bolt, with washer
Diagram Reference: 22
Get Part
