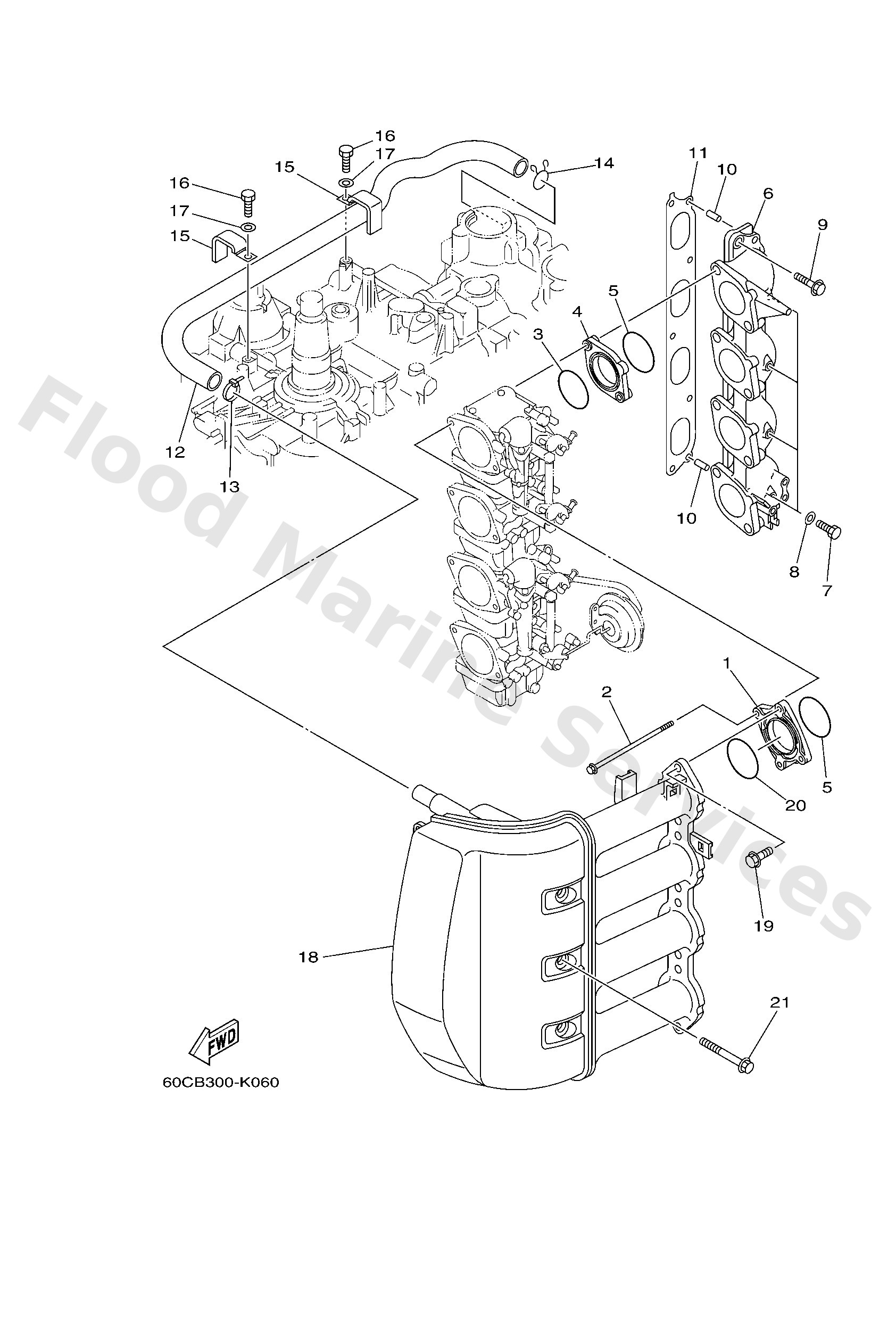

Diagram: INTAKE

Diagram

Parts List

67F1424300
Plate
Diagram Reference: 1
Get Part
67F1421600
Screw
Diagram Reference: 2
Get Part
67F1423900
Seal
Diagram Reference: 3
Get Part
67F1427100
Insulator
Diagram Reference: 4
Get Part
9321040M10
O-ring (682)
Diagram Reference: 5
Get Part
67F136410094
Manifold 1
Diagram Reference: 6
Get Part
9709506010
Bolt
Diagram Reference: 7
Get Part
9043006014
Gasket 256113960000
Diagram Reference: 8
Get Part
9757508535
Bolt(70w)
Diagram Reference: 9
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 10
Get Part
67F1364500
Gasket, manifold 1
Diagram Reference: 11
Get Part
67F1537300
Pipe, breather
Diagram Reference: 12
Get Part
9046511M59
Clamp(63m)
Diagram Reference: 13
Get Part
9046720M15
Clip
Diagram Reference: 14
Get Part
9046512M03
Clamp, cord (688)
Diagram Reference: 15
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 16
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 17
Get Part
67F1444000
Silencer assembly, intake
Diagram Reference: 18
Get Part
9011906M82
Bolt, with washer
Diagram Reference: 19
Get Part
9321041MJ2
O-ring
Diagram Reference: 20
Get Part
9011908M59
Bolt, with washer
Diagram Reference: 21
Get Part
