F2.5AMH (2003)
INTAKE

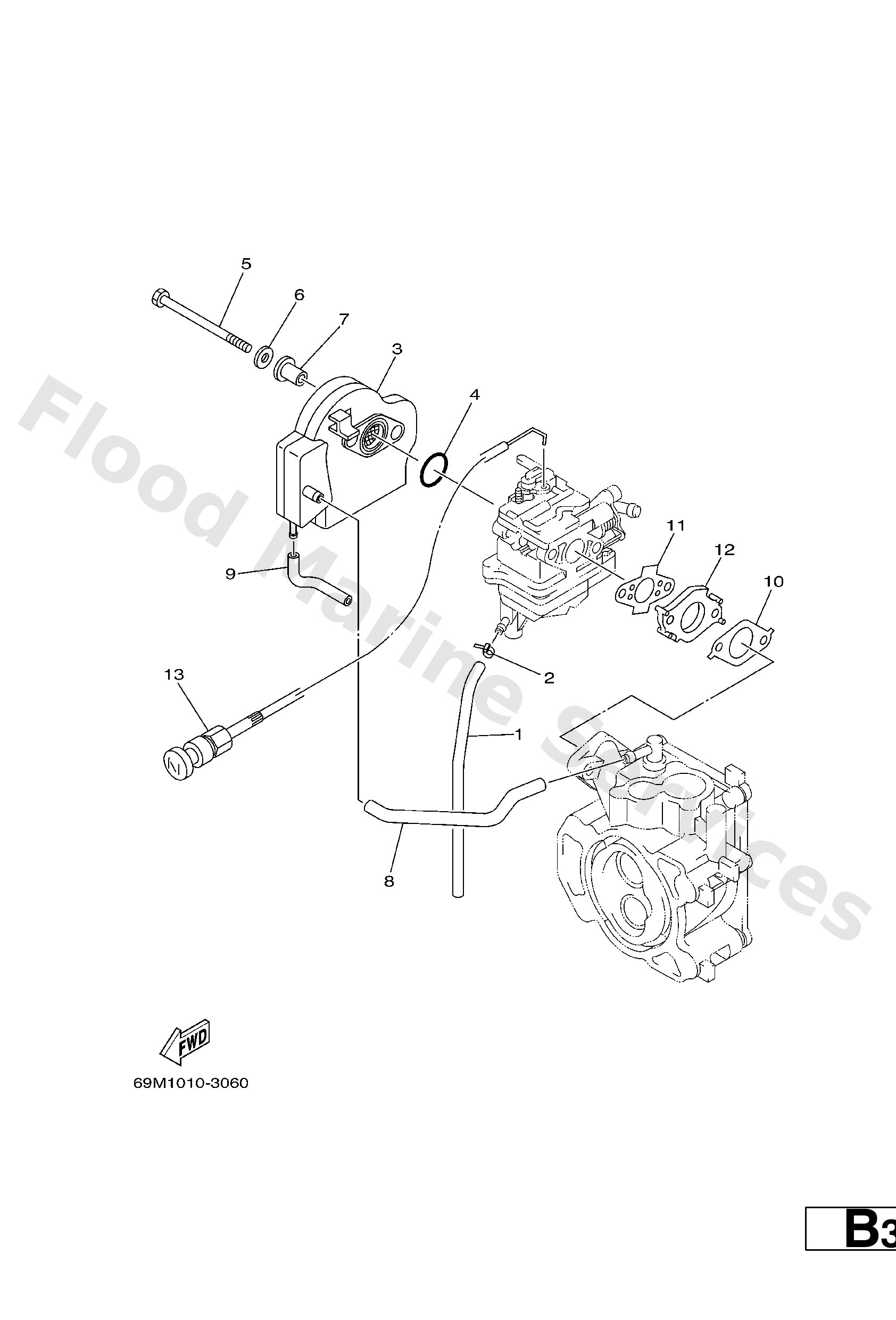

Diagram: INTAKE
Parts List
Reference
Description
Price
1
69M−E4148−00
6−
Loading…
↗
2
90465−11M10
Clamp
Loading…
↗
3
69M−14440−00
Silencer assembly, intake
Loading…
↗
4
93210−20M65
O-ring
Loading…
↗
5
97095−06075
Bolt, hexagon w/w deep recess
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
90387−063Y3
Collar
Loading…
↗
8
69M−E2483−00
Pipe 3
Loading…
↗
9
90445−07805
Hose (l200)
Loading…
↗
10
69M−E3645−A0
Gasket,manifold 1
Loading…
↗
11
69M−E3646−A0
Gasket, manifold 2
Loading…
↗
12
69M−E3647−00
Gasket, manifold 3
Loading…
↗
13
69M−F6330−00
Cable de starter
Loading…
↗
