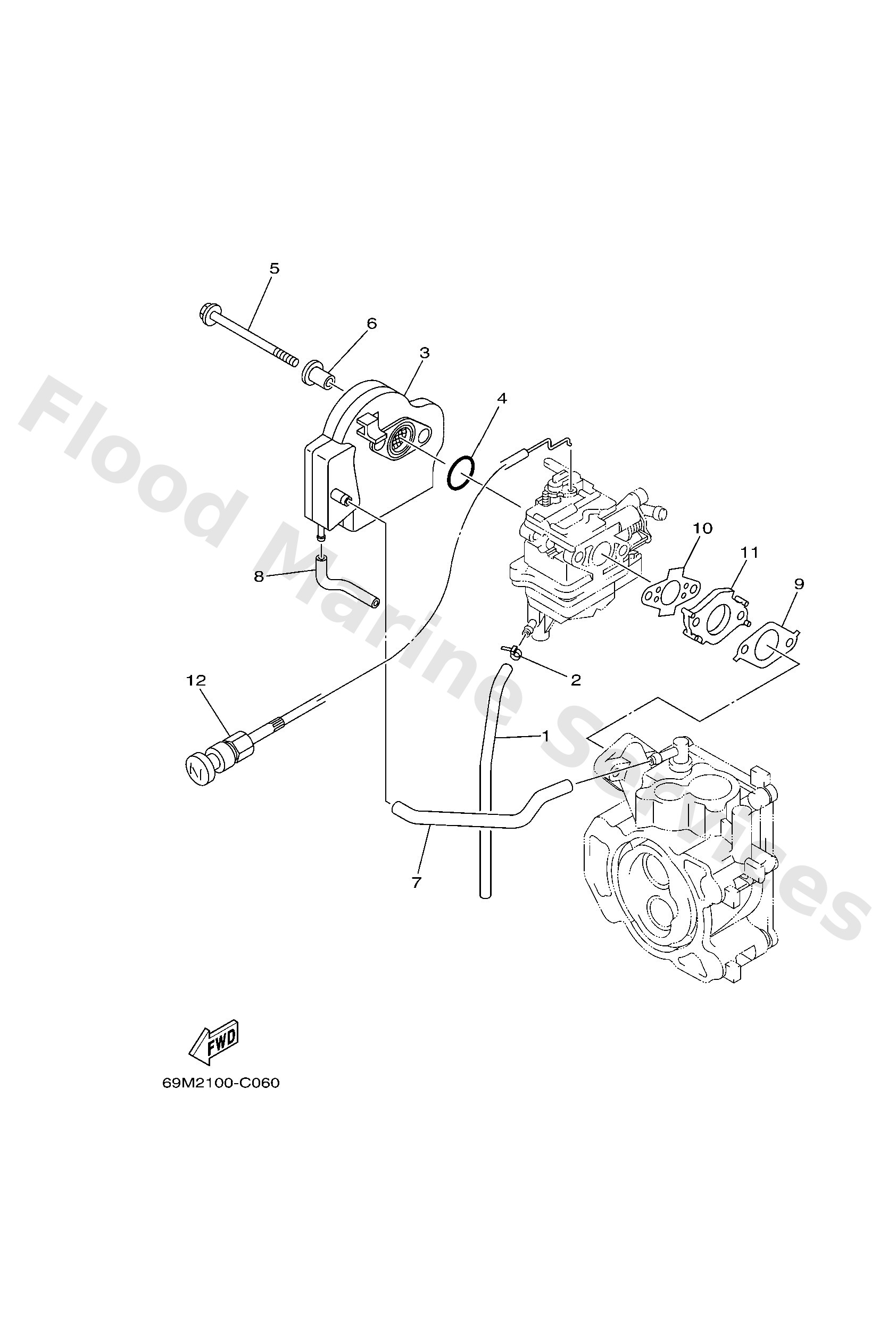

Diagram: INTAKE

Diagram

Parts List

69ME414800
Pipe
Diagram Reference: 1
Get Part
9046511M10
Clamp
Diagram Reference: 2
Get Part
69M1444001
Silencer assembly, intake
Diagram Reference: 3
Get Part
9321020M65
O-ring
Diagram Reference: 4
Get Part
9759506575
Bolt, with washer
Diagram Reference: 5
Get Part
9038706076
Collar
Diagram Reference: 6
Get Part
69ME248300
Pipe 3
Diagram Reference: 7
Get Part
9044507805
Hose (l200)
Diagram Reference: 8
Get Part
69ME3645A0
Gasket,manifold 1
Diagram Reference: 9
Get Part
69ME3646A0
Gasket, manifold 2
Diagram Reference: 10
Get Part
69ME364700
Gasket, manifold 3
Diagram Reference: 11
Get Part
69MF633002
Cable de starter
Diagram Reference: 12
Get Part
