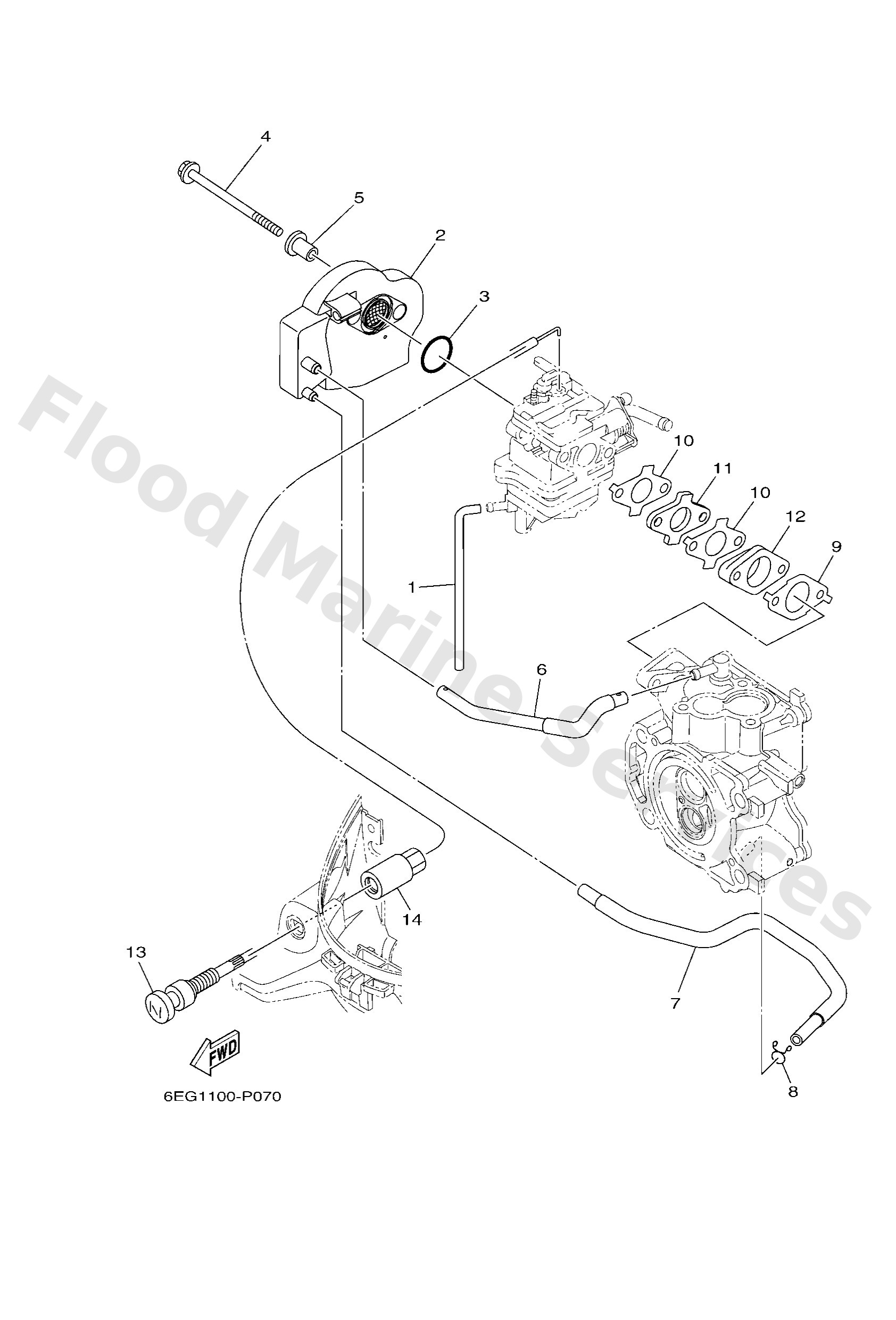

Diagram: INTAKE

Diagram

Parts List

6EGE414801
Pipe
Diagram Reference: 1
Get Part
6EG1444000
Silencer assembly, intake
Diagram Reference: 2
Get Part
9321020801
O-ring
Diagram Reference: 3
Get Part
97E9506585
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Get Part
9038706076
Collar
Diagram Reference: 5
Get Part
6EGE248301
Pipe 3
Diagram Reference: 6
Get Part
6EGE316F01
Hose, oil 1
Diagram Reference: 7
Get Part
9046709M09
Clip(6k8)
Diagram Reference: 8
Get Part
6EGE364500
Gasket, manifold 1
Diagram Reference: 9
Get Part
6EGE364600
Gasket, manifold 2
Diagram Reference: 10
Get Part
6EGE364700
Gasket, manifold 3
Diagram Reference: 11
Get Part
6EGE364101
Manifold, intake 1
Diagram Reference: 12
Get Part
6EGF633000
Starter cable assembly
Diagram Reference: 13
Get Part
9017911800
Nut
Diagram Reference: 14
Get Part
