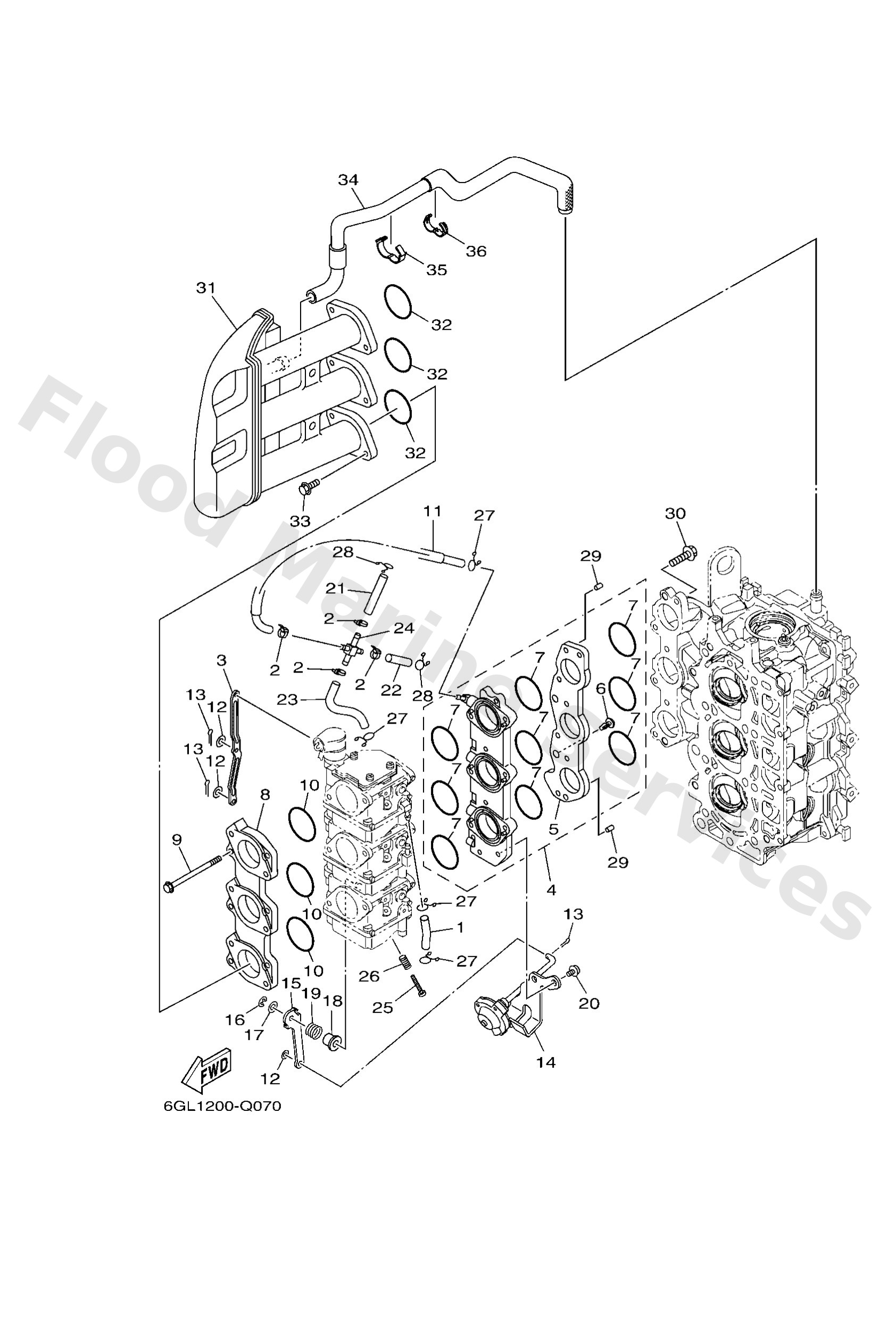

Parts List
Hose
Diagram Reference: 1
Clamp
Diagram Reference: 2
Link, accel.
Diagram Reference: 3
Carburetor joint comp.
Diagram Reference: 4
Insulator
Diagram Reference: 5
Plug(62y)
Diagram Reference: 6
O-ring
Diagram Reference: 7
Plate
Diagram Reference: 8
Bolt, Hexagon W/W Deep Recess
Diagram Reference: 9
O-ring
Diagram Reference: 10
Pipe, Fuel 3
Diagram Reference: 11
Washer, plain (646)
Diagram Reference: 12
Pin, cotter
Diagram Reference: 13
Diaphragm assembly 2
Diagram Reference: 14
Lever, connect
Diagram Reference: 15
Clip
Diagram Reference: 16
Washer
Diagram Reference: 17
Collar
Diagram Reference: 18
Spring
Diagram Reference: 19
Screw, Pan Head
Diagram Reference: 20
Pipe, Fuel 4
Diagram Reference: 21
Pipe, fuel 5
Diagram Reference: 22
Pipe, fuel 6
Diagram Reference: 23
Pipe, joint 4
Diagram Reference: 24
Screw, stop
Diagram Reference: 25
Spring
Diagram Reference: 26
Clip
Diagram Reference: 27
Clip
Diagram Reference: 28
Pin, dowel(6t4)
Diagram Reference: 29
Bolt, hexagon w/w deep recess
Diagram Reference: 30
Silencer assembly, intake
Diagram Reference: 31
O-ring
Diagram Reference: 32
Bolt, with washer
Diagram Reference: 33
Hose, Breather 1
Diagram Reference: 34
Clamp
Diagram Reference: 35
Clamp
Diagram Reference: 36
