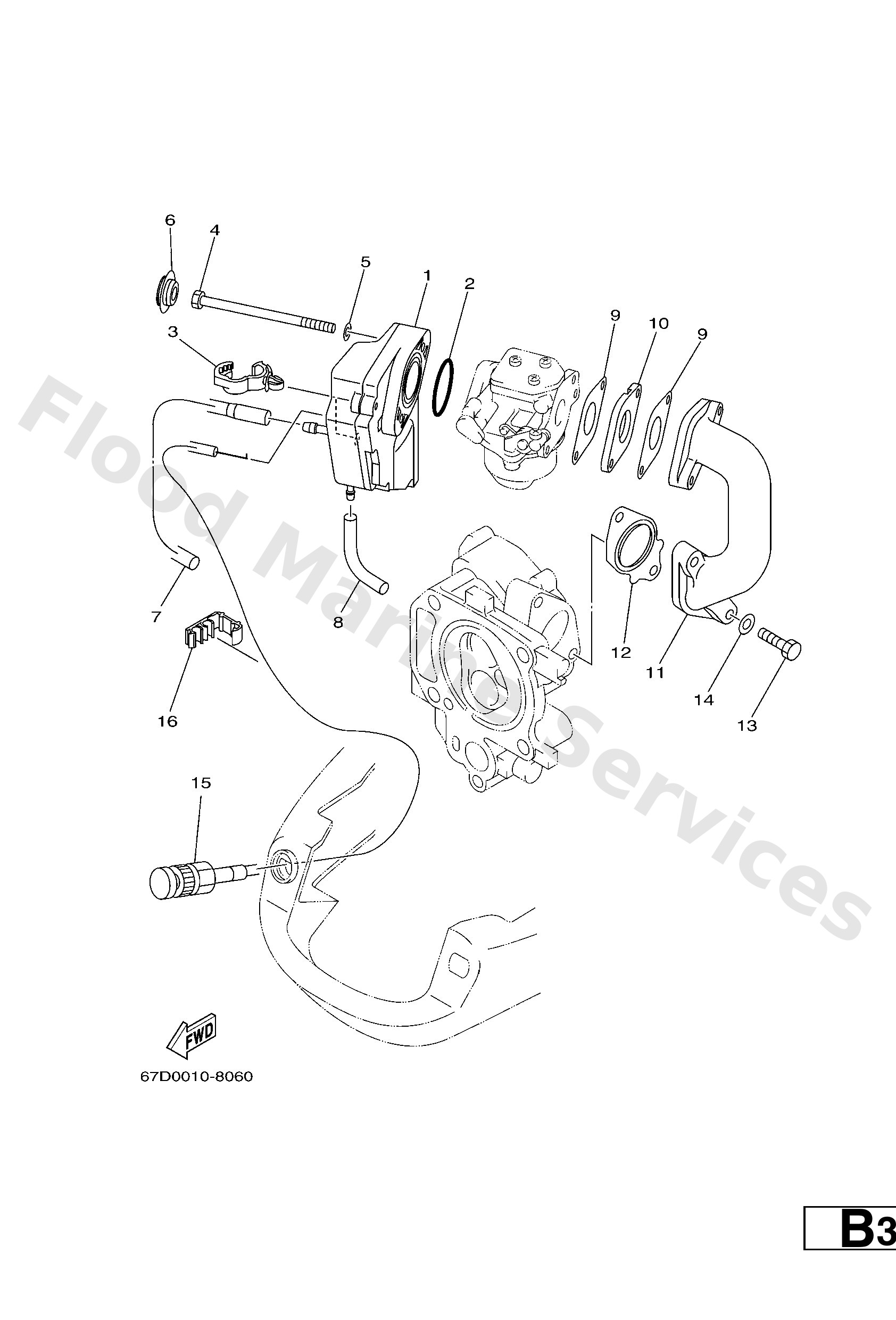

Diagram: INTAKE

Diagram

Parts List

68DE444000
Silencer assembly, Intake
Diagram Reference: 1
Get Part
9321031MJ5
O-ring
Diagram Reference: 2
Get Part
9046413249
Clamp
Diagram Reference: 3
Get Part
9709506090
Bolt(62y)
Diagram Reference: 4
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 5
Get Part
9048018M74
Grommet
Diagram Reference: 6
Get Part
68DF431400
Pipe 4
Diagram Reference: 7
Get Part
9044507805
Hose (l200)
Diagram Reference: 8
Get Part
68DE3646A0
Gasket, Manifold 2
Diagram Reference: 9
Get Part
68DE364700
Gasket, Manifold 3
Diagram Reference: 10
Get Part
68DE36410094
Manifold 1
Diagram Reference: 11
Get Part
68DE3645A0
Gasket int. manifold
Diagram Reference: 12
Get Part
9709506025
Bolt
Diagram Reference: 13
Get Part
68DF633000
Wire starter
Diagram Reference: 15
Get Part
9046405122
Clamp
Diagram Reference: 16
Get Part
