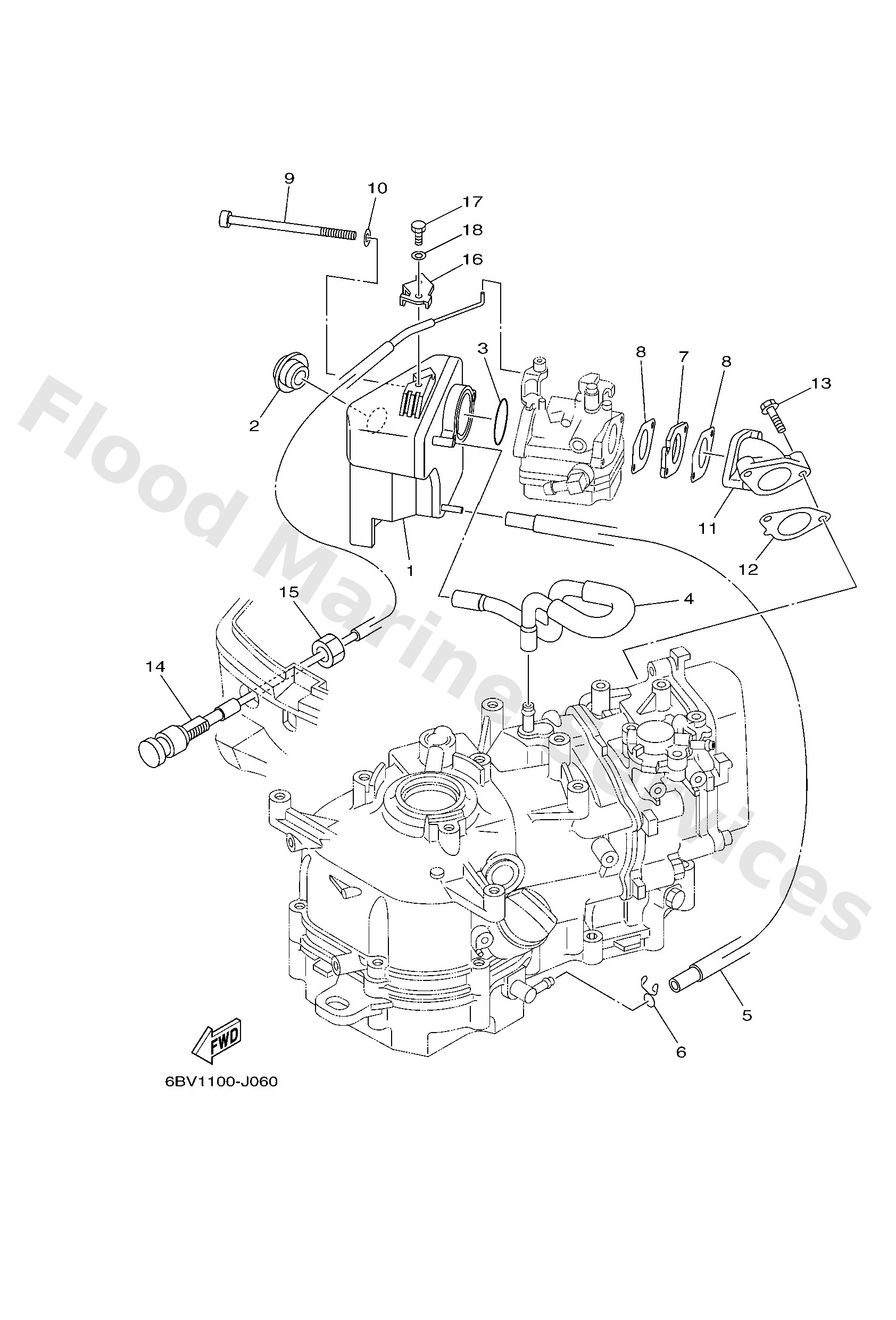

Diagram: INTAKE

Diagram

Parts List

6BX1444000
Silencer assembly, intake
Diagram Reference: 1
Get Part
9048018M74
Grommet
Diagram Reference: 2
Get Part
93210320A7
O-ring
Diagram Reference: 3
Get Part
6BXF431400
Pipe 4
Diagram Reference: 4
Get Part
6BXE316F00
Hose, oil 1
Diagram Reference: 5
Get Part
9046709M09
Clip(6k8)
Diagram Reference: 6
Get Part
6BXE364700
Gasket, manifold 3
Diagram Reference: 7
Get Part
6BXE364600
Gasket, manifold 2
Diagram Reference: 8
Get Part
9011006350
Bolt, hexagon socket head
Diagram Reference: 9
Get Part
9020106106
Washer, plate
Diagram Reference: 10
Get Part
6BXE36411094
Manifold, intake 1
Diagram Reference: 11
Get Part
6BXE364500
Gasket, manifold 1
Diagram Reference: 12
Get Part
9011906MA3
Bolt, with washer
Diagram Reference: 13
Get Part
6BXF633001
Starter cable assembly
Diagram Reference: 14
Get Part
6BXF633300
Nut
Diagram Reference: 15
Get Part
6BXE315100
Stay
Diagram Reference: 16
Get Part
9709505010
Bolt (682)
Diagram Reference: 17
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 18
