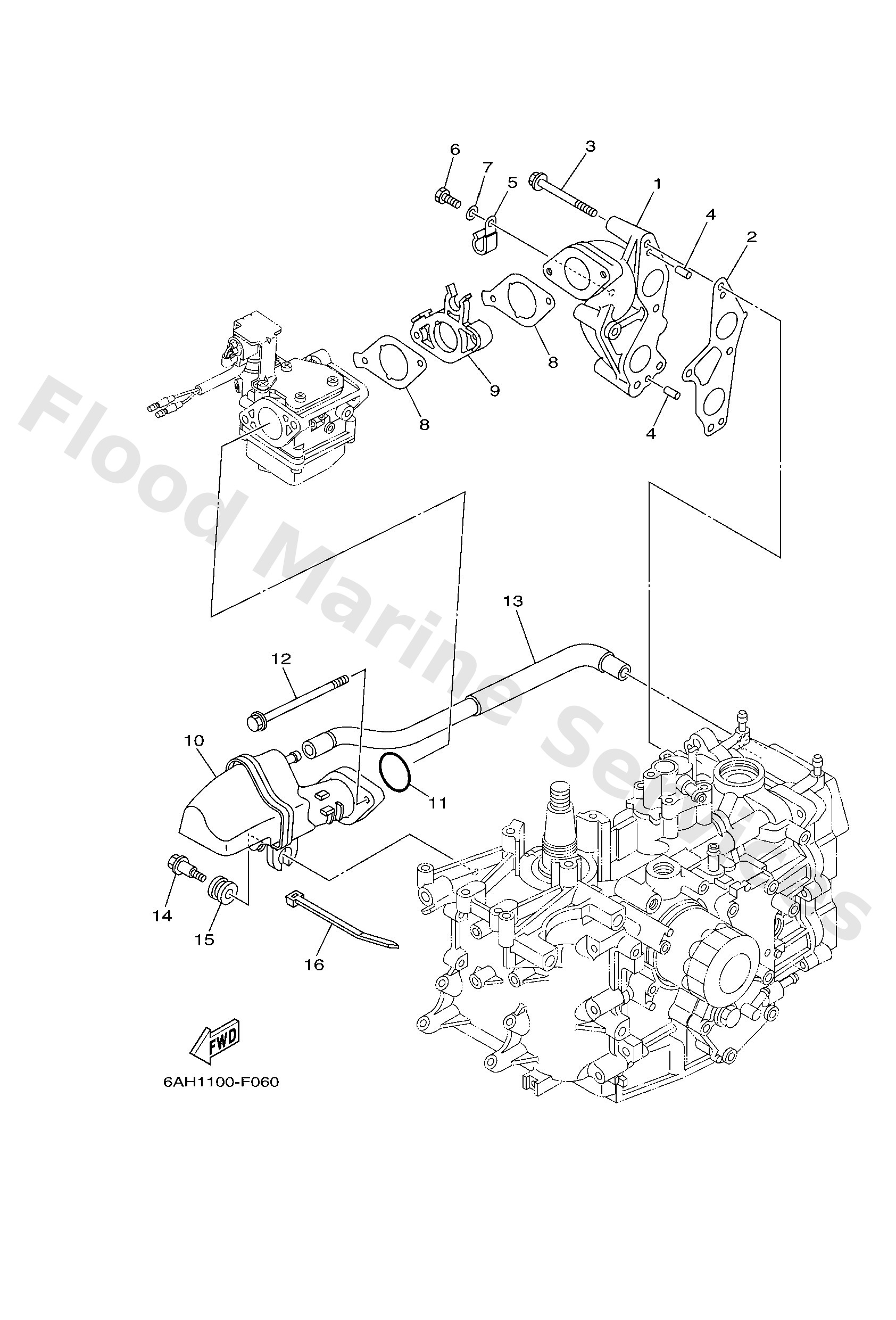

Diagram: INTAKE

Diagram

Parts List

6AH136410094
Manifold 1
Diagram Reference: 1
Get Part
6AH1364500
Gasket, manifold 1
Diagram Reference: 2
Get Part
9759506555
Bolt, hexagon w/w deep recess
Diagram Reference: 3
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 4
Get Part
9046508M83
Clamp
Diagram Reference: 5
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
6AH1364600
Gasket, manifold 2
Diagram Reference: 8
Get Part
6AH1427100
Insulator
Diagram Reference: 9
Get Part
6AH1444000
Silencer assembly, intake
Diagram Reference: 10
Get Part
9321035M86
O-ring(6l2)
Diagram Reference: 11
Get Part
9589506100
Bolt, flange deep recess
Diagram Reference: 12
Get Part
6AH1537300
Pipe, breather
Diagram Reference: 13
Get Part
9010906MA1
Bolt
Diagram Reference: 14
Get Part
9048016616
Grommet
Diagram Reference: 15
Get Part
9046513M18
Clamp
Diagram Reference: 16
