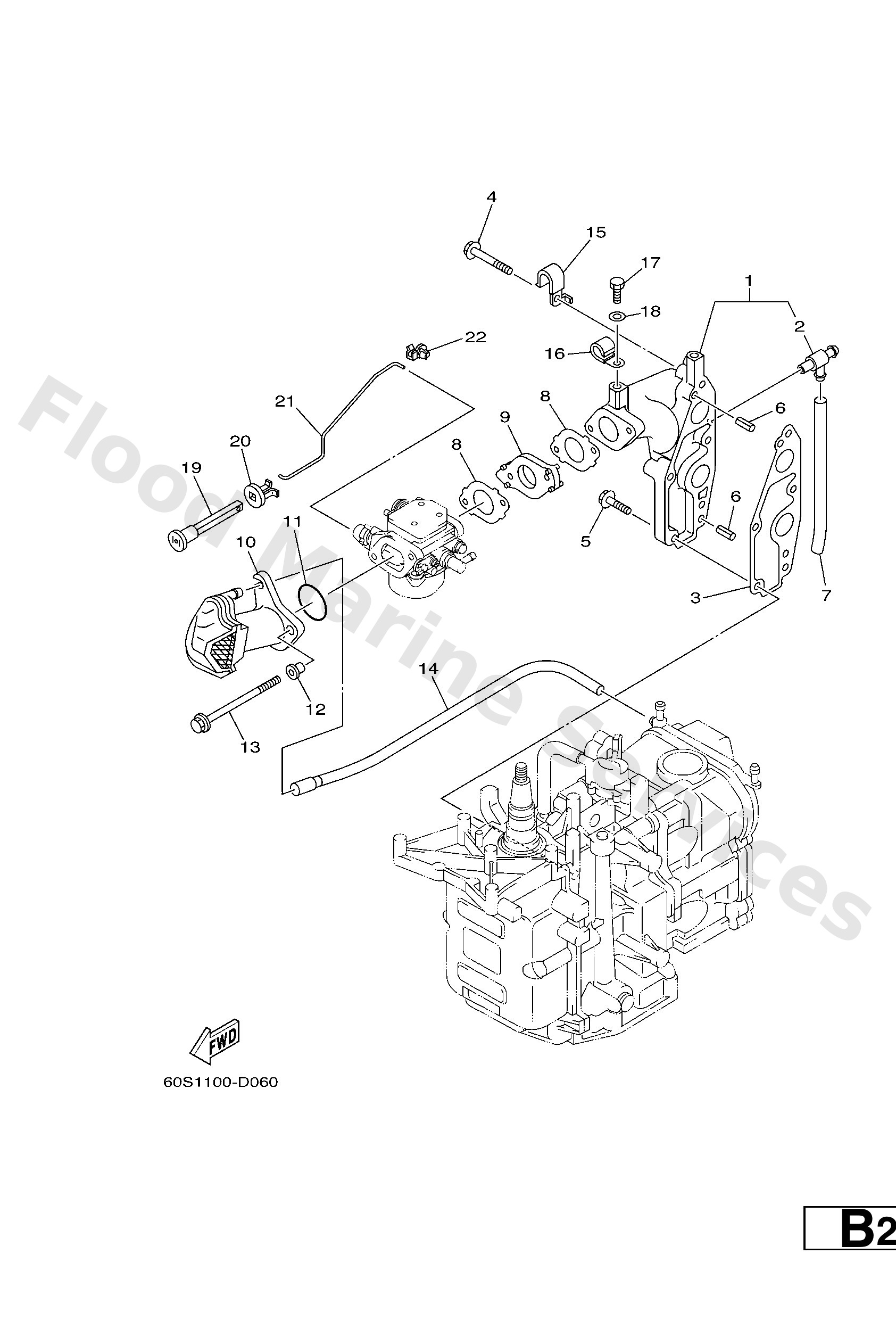

Diagram: INTAKE

Diagram

Parts List

60RE3641201S (FLUSHING KIT)
Manifold 1
Diagram Reference: 1
Get Part
67F1248200
Pipe 2
Diagram Reference: 2
Get Part
68T1364500
Gasket, manifold 1
Diagram Reference: 3
Get Part
9011906MA5
Bolt, with washer
Diagram Reference: 4
Get Part
9011906MA3
Bolt, with washer
Diagram Reference: 5
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 6
Get Part
9044509812 (FLUSHING KIT)
Hose (L93)
Diagram Reference: 7
Get Part
60RE3646A0
Gasket, manifold 2
Diagram Reference: 8
Get Part
68T1427100
Insulator
Diagram Reference: 9
Get Part
60RE444000
Silencer assembly, intake
Diagram Reference: 10
Get Part
9321031MJ5
O-ring
Diagram Reference: 11
Get Part
9038706M70
Collar (6h5)
Diagram Reference: 12
Get Part
9759506585
Bolt, flange
Diagram Reference: 13
Get Part
60RE248300
Pipe 3
Diagram Reference: 14
Get Part
9046508M99
Clamp
Diagram Reference: 15
Get Part
9046508M83 (FLUSHING KIT)
Clamp
Diagram Reference: 16
Get Part
9709506010 (FLUSHING KIT)
Bolt
Diagram Reference: 17
Get Part
9299506600 (FLUSHING KIT)
Washer, plain (646)
Diagram Reference: 18
Get Part
6H44127101
Knob, choke
Diagram Reference: 19
Get Part
6894127300
Grommet
Diagram Reference: 20
Get Part
68T4125600
Rod, choke 1
Diagram Reference: 21
Get Part
6J84126200
Joint, choke lever
Diagram Reference: 22
Get Part
