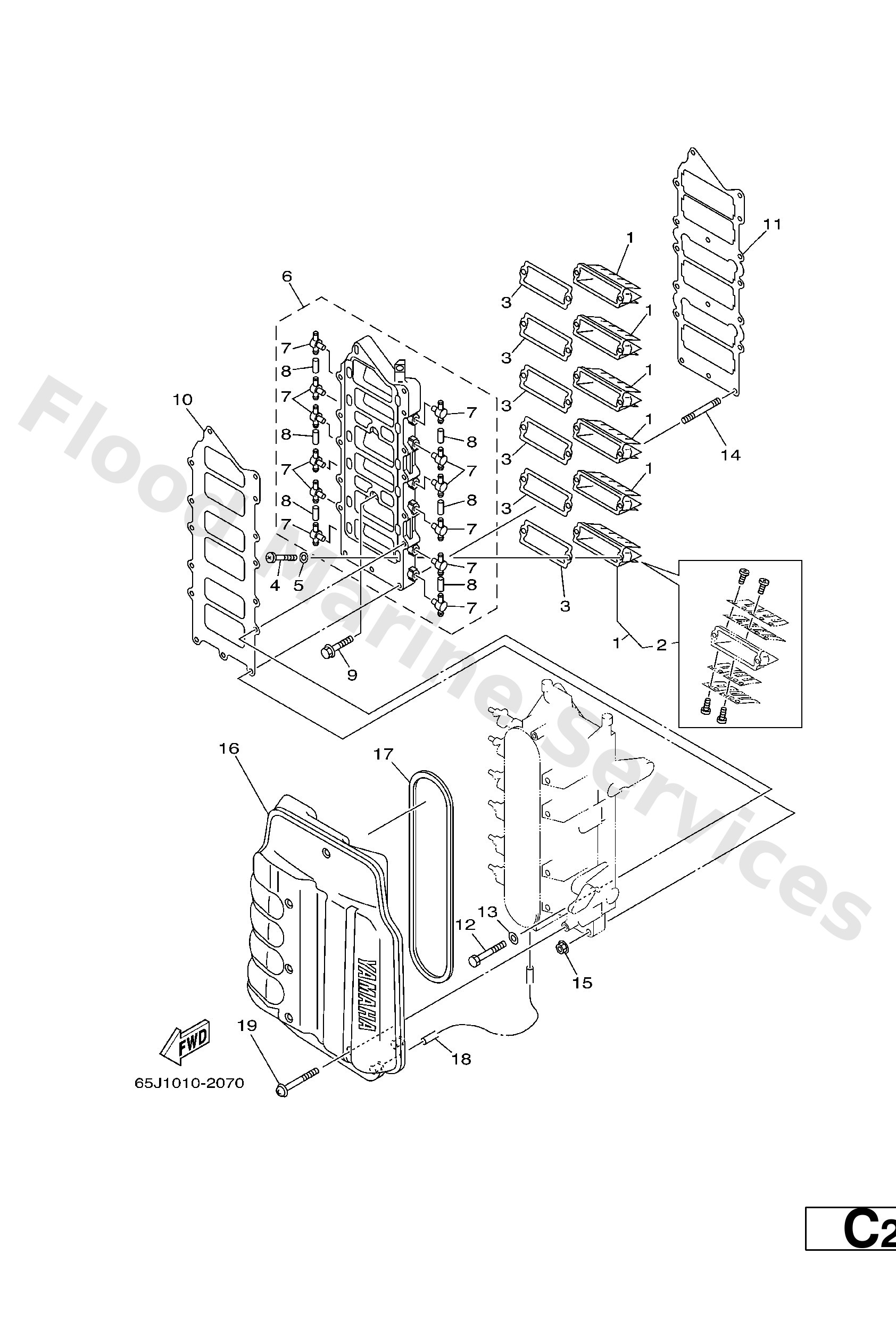

Diagram: INTAKE

Diagram

Parts List

65L−13610−01
Reed valve assembly
Diagram Reference: 1
Get Part
65J−13610−01
Reed Valve assembly
Diagram Reference: 1
Get Part
65J−W0004−01
Reed set
Diagram Reference: 2
Get Part
61A−13621−A0
Gasket, valve seat
Diagram Reference: 3
Get Part
97880−05016
Screw, pan head(6b0)
Diagram Reference: 4
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 5
Get Part
65L−13624−01−1S
Plate,Reed Valve
Diagram Reference: 6
Get Part
6F6−11372−00
Nipple, hose
Diagram Reference: 7
Get Part
90445−07M03
Hose (l200)
Diagram Reference: 8
Get Part
90105−06028
Bolt, washer based
Diagram Reference: 9
Get Part
65L−13646−00
Gasket, manifold 2
Diagram Reference: 10
Get Part
65L−13645−00
Gasket, manifold 1
Diagram Reference: 11
Get Part
97013−06060
Bolt, hexagon
Diagram Reference: 12
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 13
Get Part
95670−06655
Bolt, Stud
Diagram Reference: 14
Get Part
90179−06M24
Nut(6j8)
Diagram Reference: 15
Get Part
65L−14440−00
Silencer assembly, intake
Diagram Reference: 16
Get Part
65L−14483−00
Gasket
Diagram Reference: 17
Get Part
90445−07M44
Hose (l390)
Diagram Reference: 18
Get Part
90159−06M16
Screw, with washer(61a)
Diagram Reference: 19
