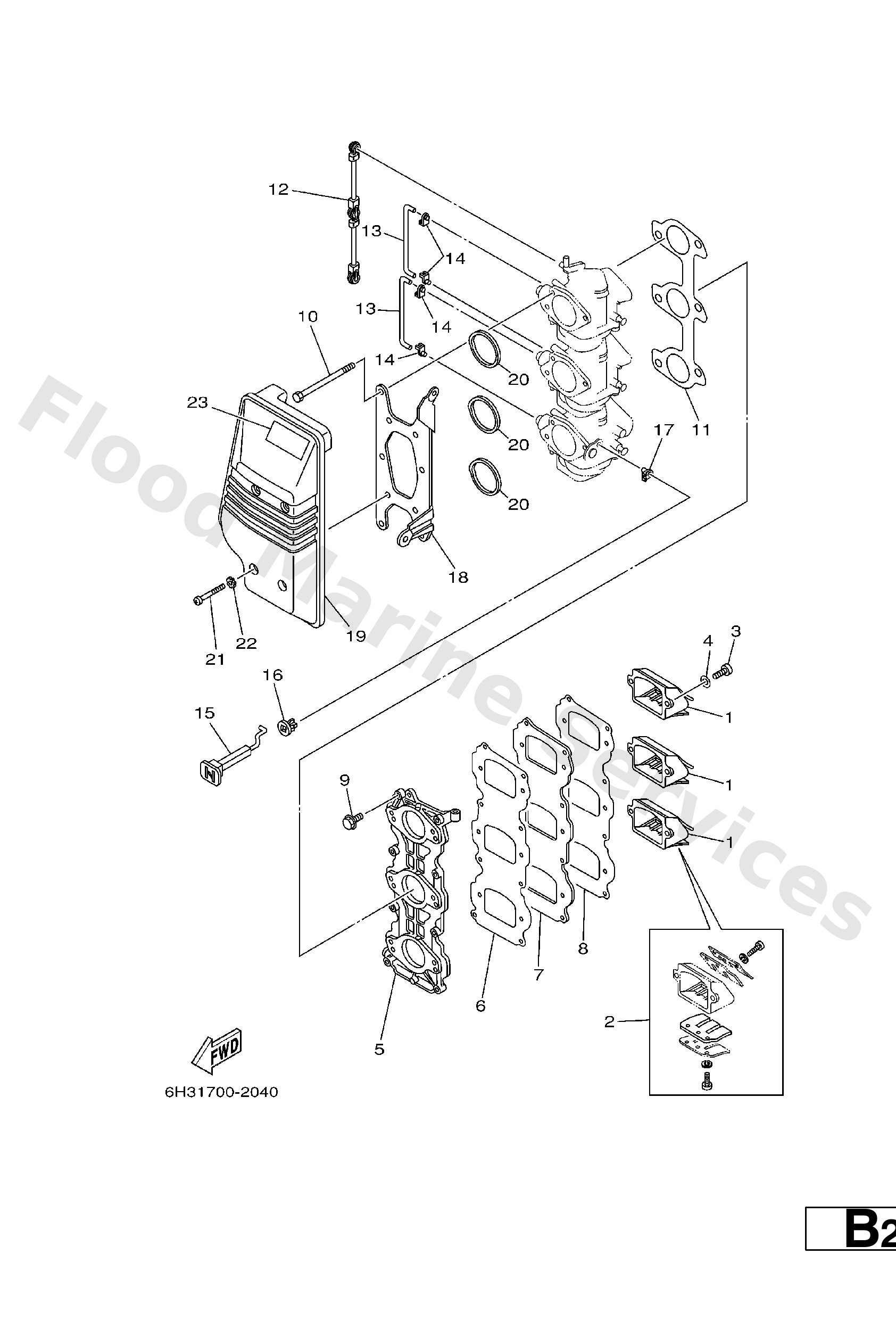

Diagram: INTAKE 1

Diagram

Parts List

6H2−13610−00
Reed valve assembly
Diagram Reference: 1
Get Part
688−W0004−00
Reed set
Diagram Reference: 2
Get Part
97880−05016
Screw, pan head(6b0)
Diagram Reference: 3
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 4
Get Part
6H3−13641−03−94
Manifold, intake 1
Diagram Reference: 5
Get Part
6H3−13621−A1
Gasket, valve seat
Diagram Reference: 6
Get Part
6H3−13624−00−94
Plate, reed valve
Diagram Reference: 7
Get Part
6H3−13622−A1
Gasket, valve seat
Diagram Reference: 8
Get Part
90119−06MA3
Bolt, with washer
Diagram Reference: 9
Get Part
97095−06095
Bolt, hexagon deep recess
Diagram Reference: 10
Get Part
6H3−14198−A1
Gasket
Diagram Reference: 11
Get Part
6H3−41217−00
Rod, accel lever
Diagram Reference: 12
Get Part
6H3−41257−00
Rod, choke link 2
Diagram Reference: 13
Get Part
661−41262−02
Joint, choke lever
Diagram Reference: 14
Get Part
6H3−41271−00
Knob, choke
Diagram Reference: 15
Get Part
689−41273−00
Grommet
Diagram Reference: 16
Get Part
6H3−14413−10
Stay
Diagram Reference: 18
Get Part
6H3−14440−02
Silencer assembly, intake
Diagram Reference: 19
Get Part
6H3−14457−01
Seal
Diagram Reference: 20
Get Part
97885−06045
Screw, pan head(6b0)
Diagram Reference: 21
Get Part
90209−06M05
Washer (688)
Diagram Reference: 22
Get Part
6A1−83625−41
Mark 5
Diagram Reference: 23
