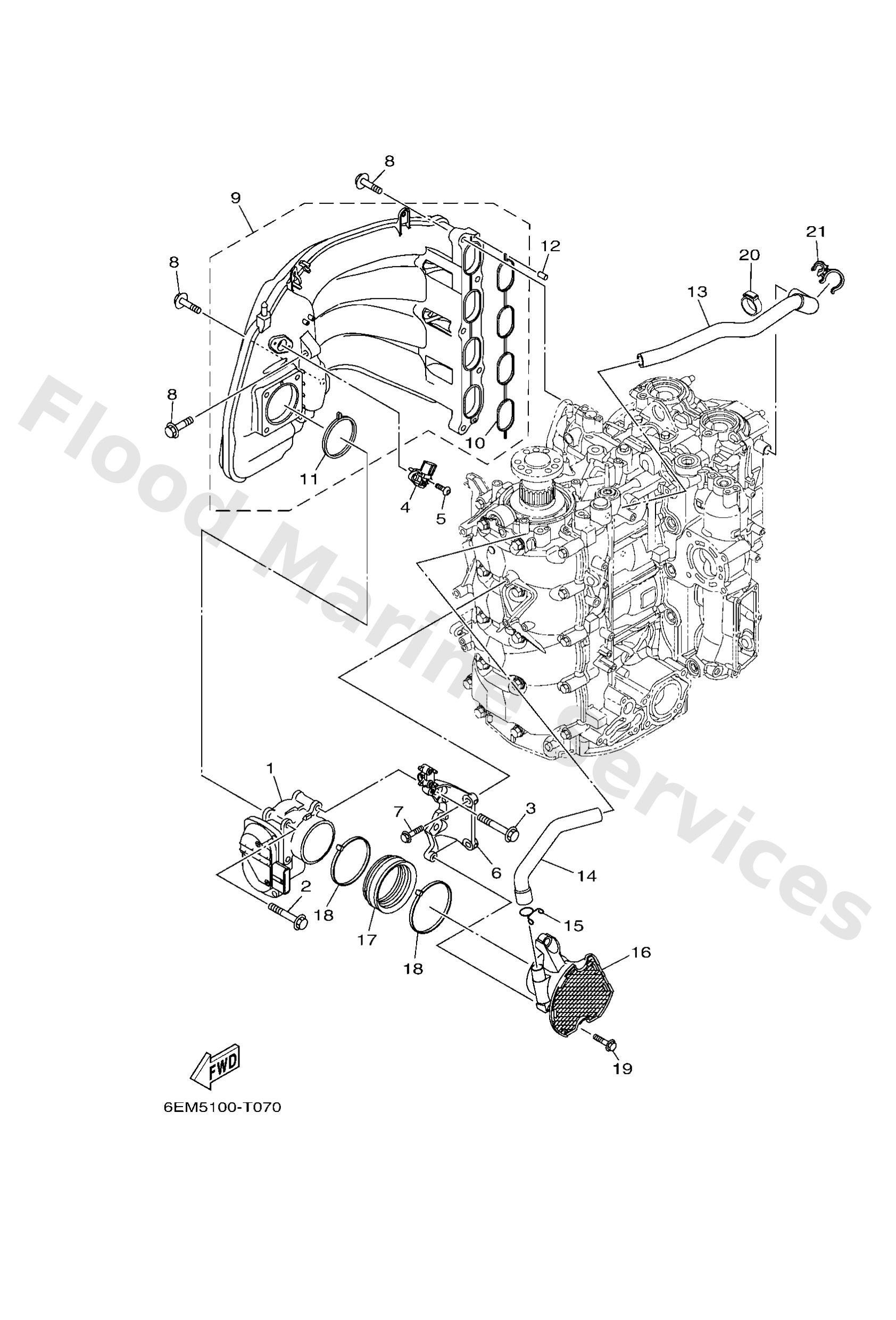

Diagram: INTAKE 1

Diagram

Parts List

6EM1375100
Body, throttle 1
Diagram Reference: 1
Get Part
95D7508060
Bolt, flange deep recess
Diagram Reference: 2
Get Part
9010508186
Bolt, flange
Diagram Reference: 3
Get Part
68F8368810
Sensor assembly
Diagram Reference: 4
Get Part
9011105037
Bolt,hex. socket button
Diagram Reference: 5
Get Part
6EK1315202
Stay 2
Diagram Reference: 6
Get Part
95D7506025
Bolt, flange deep recess
Diagram Reference: 7
Get Part
9011908022
Bolt, with washer
Diagram Reference: 8
Get Part
6EM1364100
Manifold, intake 1
Diagram Reference: 9
Get Part
6EK1364500
Gasket, manifold 1
Diagram Reference: 10
Get Part
6EK1364600
Gasket, manifold 2
Diagram Reference: 11
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 12
Get Part
6EK1537310
Pipe, breather
Diagram Reference: 13
Get Part
6EK1539300
Pipe, breather 2
Diagram Reference: 14
Get Part
9046723M16
Clip
Diagram Reference: 15
Get Part
6DA1444000
Silencer assembly, intake
Diagram Reference: 16
Get Part
6P21441J01
Pipe, silencer
Diagram Reference: 17
Get Part
9046499004
Clamp
Diagram Reference: 18
Get Part
9046426001
Clamp
Diagram Reference: 20
Get Part
9046421002
Clamp
Diagram Reference: 21
