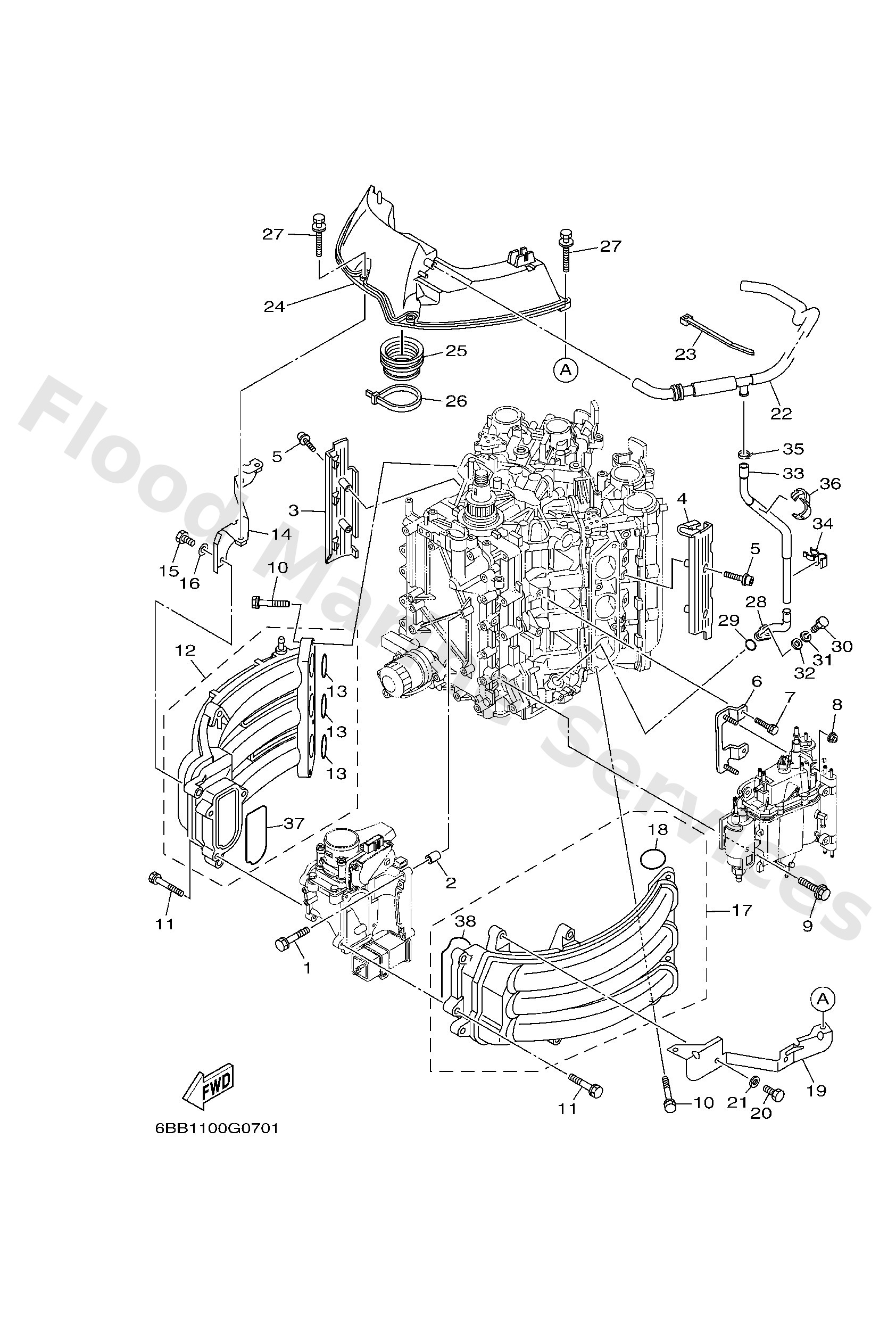

Parts List
Bolt, hexagon w/w deep recess
Diagram Reference: 1
Pin, dowel(3vd)
Diagram Reference: 2
Cover, manifold
Diagram Reference: 3
Cover, manifold 2
Diagram Reference: 4
Bolt, hexagon socket head
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Nut(63v)
Diagram Reference: 8
Bolt, with washer
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 11
Manifold 1
Diagram Reference: 12
Gasket, manifold 1
Diagram Reference: 13
Holder
Diagram Reference: 14
Bolt, hexagon deep recess
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Manifold 2
Diagram Reference: 17
Holder
Diagram Reference: 19
Pipe, breather
Diagram Reference: 22
Clamp
Diagram Reference: 23
Silencer assembly, intake
Diagram Reference: 24
Pipe, silencer
Diagram Reference: 25
Clamp
Diagram Reference: 26
Bolt, with washer
Diagram Reference: 27
Nipple, hose
Diagram Reference: 28
O-ring
Diagram Reference: 29
Bolt(7u8)
Diagram Reference: 30
Washer(6a1)
Diagram Reference: 31
Hose
Diagram Reference: 33
Clamp
Diagram Reference: 34
Clamp
Diagram Reference: 35
Clamp
Diagram Reference: 36
Gasket, manifold 2
Diagram Reference: 37
