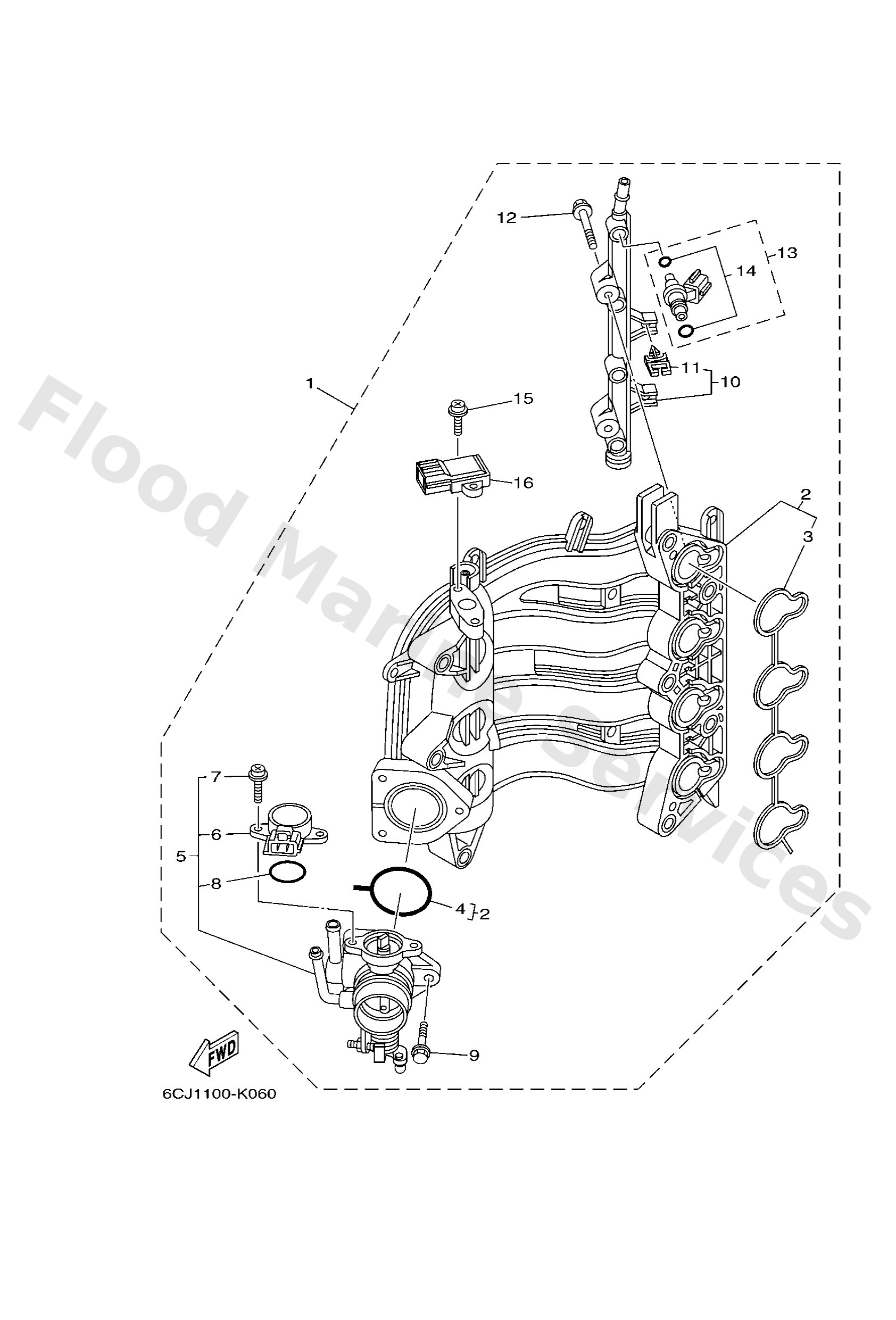

Diagram: INTAKE 1
Parts List
Intake assembly
Diagram Reference: 1
Manifold, intake 1
Diagram Reference: 2
Gasket, manifold 1
Diagram Reference: 3
Gasket
Diagram Reference: 4
Throttle body assembly
Diagram Reference: 5
Throttle sensor assembly
Diagram Reference: 6
Screw 1
Diagram Reference: 7
O-ring 1
Diagram Reference: 8
Bolt
Diagram Reference: 9
Pipe, delivery 1
Diagram Reference: 10
Clamp
Diagram Reference: 11
Bolt
Diagram Reference: 12
Injector assembly
Diagram Reference: 13
Packing kit
Diagram Reference: 14
Screw 2
Diagram Reference: 15
Sensor assembly
