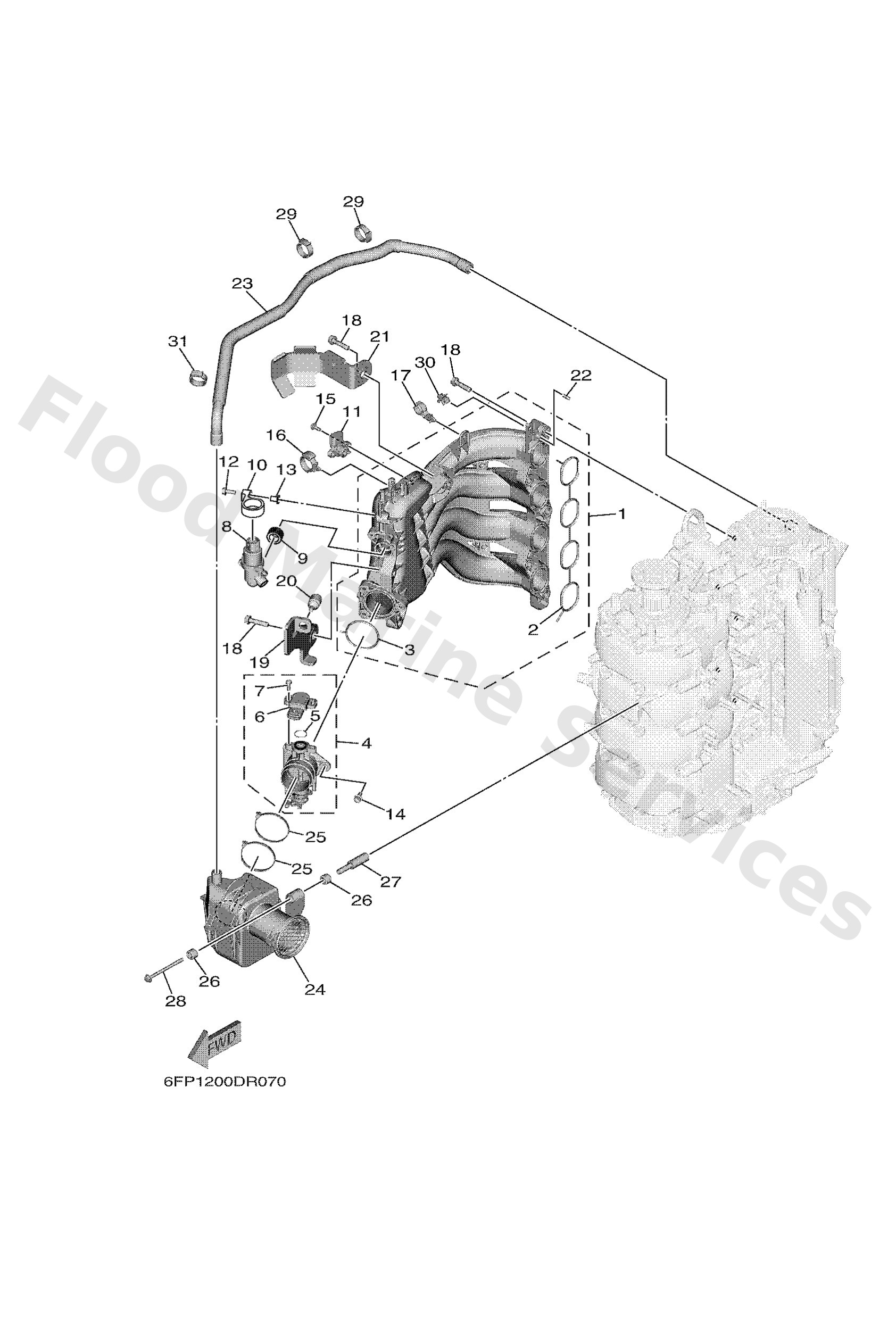

Diagram: INTAKE 1

Diagram

Parts List

6FP1364100
Manifold, intake 1
Diagram Reference: 1
Get Part
6FP1364500
Gasket, manifold 1
Diagram Reference: 2
Get Part
6FP1364600
Gasket, manifold 2
Diagram Reference: 3
Get Part
6FP1375100
Body, throttle 1
Diagram Reference: 4
Get Part
9321017014
O-ring
Diagram Reference: 5
Get Part
8GL8588500
Throttle sensor assembly
Diagram Reference: 6
Get Part
9014905041
Screw
Diagram Reference: 7
Get Part
6C51371300
Valve, idle speed control
Diagram Reference: 8
Get Part
6FP1347600
Gasket
Diagram Reference: 9
Get Part
6FP1338100
Damper
Diagram Reference: 10
Get Part
68F8368810
Sensor assembly
Diagram Reference: 11
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 12
Get Part
9038706289
Collar
Diagram Reference: 13
Get Part
6C51449600
Bolt
Diagram Reference: 14
Get Part
6C58114610
Screw 2
Diagram Reference: 15
Get Part
9046412183
Clamp(jn2)
Diagram Reference: 16
Get Part
9046417006
Clamp
Diagram Reference: 17
Get Part
9011908020
Bolt, with washer
Diagram Reference: 18
Get Part
6FP1337100
Plate
Diagram Reference: 19
Get Part
6FP1443500
Grommet
Diagram Reference: 20
Get Part
6FP1388101
Cover 1
Diagram Reference: 21
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 22
Get Part
6FP1537300
Pipe, breather
Diagram Reference: 23
Get Part
6HV1444000
Silencer assembly, intake
Diagram Reference: 24
Get Part
9046465001
Clamp
Diagram Reference: 25
Get Part
9038608001
Bush
Diagram Reference: 26
Get Part
9038707013
Collar
Diagram Reference: 27
Get Part
9011906113
Bolt, with washer
Diagram Reference: 28
Get Part
9046426001
Clamp
Diagram Reference: 29
Get Part
9046409M47
Clamp(65j)
Diagram Reference: 30
Get Part
