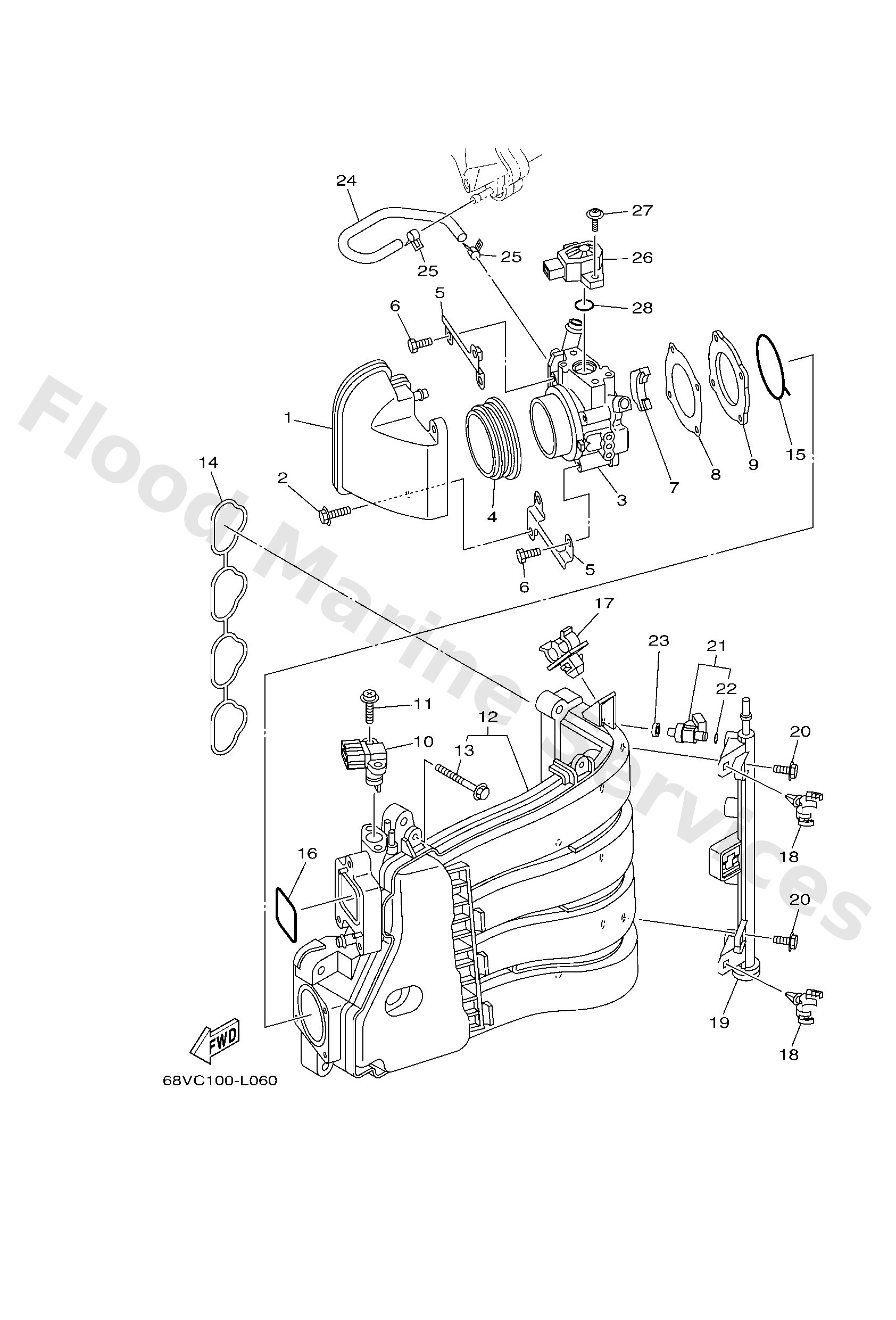

Diagram: INTAKE 1

Diagram

Parts List

68V1444010
Silencer assembly, intake
Diagram Reference: 1
Get Part
9587506020
Bolt, flange(jk3)
Diagram Reference: 2
Get Part
68V1375120
Body, throttle 1
Diagram Reference: 3
Get Part
68V1441J10
Pipe, silencer
Diagram Reference: 4
Get Part
68V1389800
Holder
Diagram Reference: 5
Get Part
68V1449610
Bolt
Diagram Reference: 6
Get Part
68V1427100
Insulator
Diagram Reference: 7
Get Part
68V1355600
Gasket, manifold
Diagram Reference: 8
Get Part
68V1363500
Joint, intake 1
Diagram Reference: 9
Get Part
68F8368810
Sensor assembly
Diagram Reference: 10
Get Part
68V8114700
Screw 3
Diagram Reference: 11
Get Part
68VW136410
Manifold, Intake 1
Diagram Reference: 12
Get Part
9011906266
Bolt, with washer
Diagram Reference: 13
Get Part
68V1364510
Gasket, manifold 1
Diagram Reference: 14
Get Part
68V1364600
Gasket, manifold 2
Diagram Reference: 15
Get Part
68V1364700
Gasket, manifold 3
Diagram Reference: 16
Get Part
9046411012
Clamp
Diagram Reference: 17
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 18
Get Part
68V1316110
Pipe, delivery 1
Diagram Reference: 19
Get Part
6P21444600
Bolt
Diagram Reference: 20
Get Part
68V1376110
Injector
Diagram Reference: 21
Get Part
68V1416A00
O-ring
Diagram Reference: 22
Get Part
68V1376610
Rubber, injector
Diagram Reference: 23
Get Part
68V1358400
Pipe, intake manifold
Diagram Reference: 24
Get Part
68V1357710
Clip
Diagram Reference: 25
Get Part
68V8588510
Throttle sensor assembly
Diagram Reference: 26
Get Part
68V8114501
Screw 1
Diagram Reference: 27
Get Part
68V8182L00
O-ring 1
Diagram Reference: 28
Get Part
