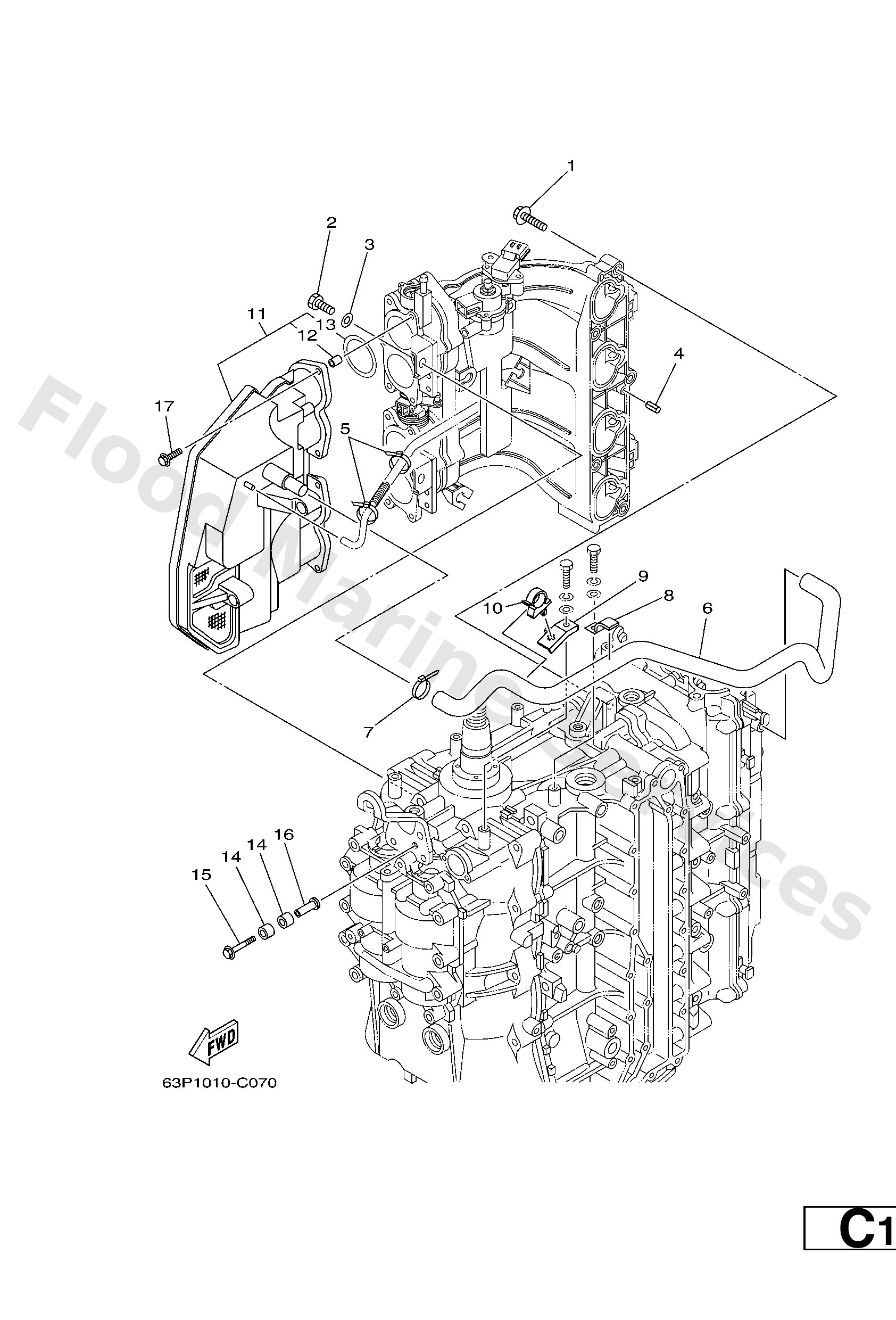

Diagram: INTAKE 1

Diagram

Parts List

9757508540
Bolt, hexagon w/w deep recess
Diagram Reference: 1
Get Part
9701308020
Bolt(6td)
Diagram Reference: 2
Get Part
9290308600
Washer, plain (663)
Diagram Reference: 3
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 4
Get Part
9046511M59 (OLD PARTS)
Clamp(63m)
Diagram Reference: 5
Get Part
63P1537300
Pipe, breather
Diagram Reference: 6
Get Part
9046210023
Clamp
Diagram Reference: 8
Get Part
63P1537800
Holder
Diagram Reference: 9
Get Part
9046420006
Clamp
Diagram Reference: 10
Get Part
63P1444000
Silencer assembly, intake
Diagram Reference: 11
Get Part
63P1444900
Collar
Diagram Reference: 12
Get Part
63P1445700
Seal
Diagram Reference: 13
Get Part
9038608001
Bush
Diagram Reference: 14
Get Part
9011906076
Bolt, with washer
Diagram Reference: 15
Get Part
9038706038
Collar
Diagram Reference: 16
Get Part
9011906M82
Bolt, with washer
Diagram Reference: 17
Get Part
