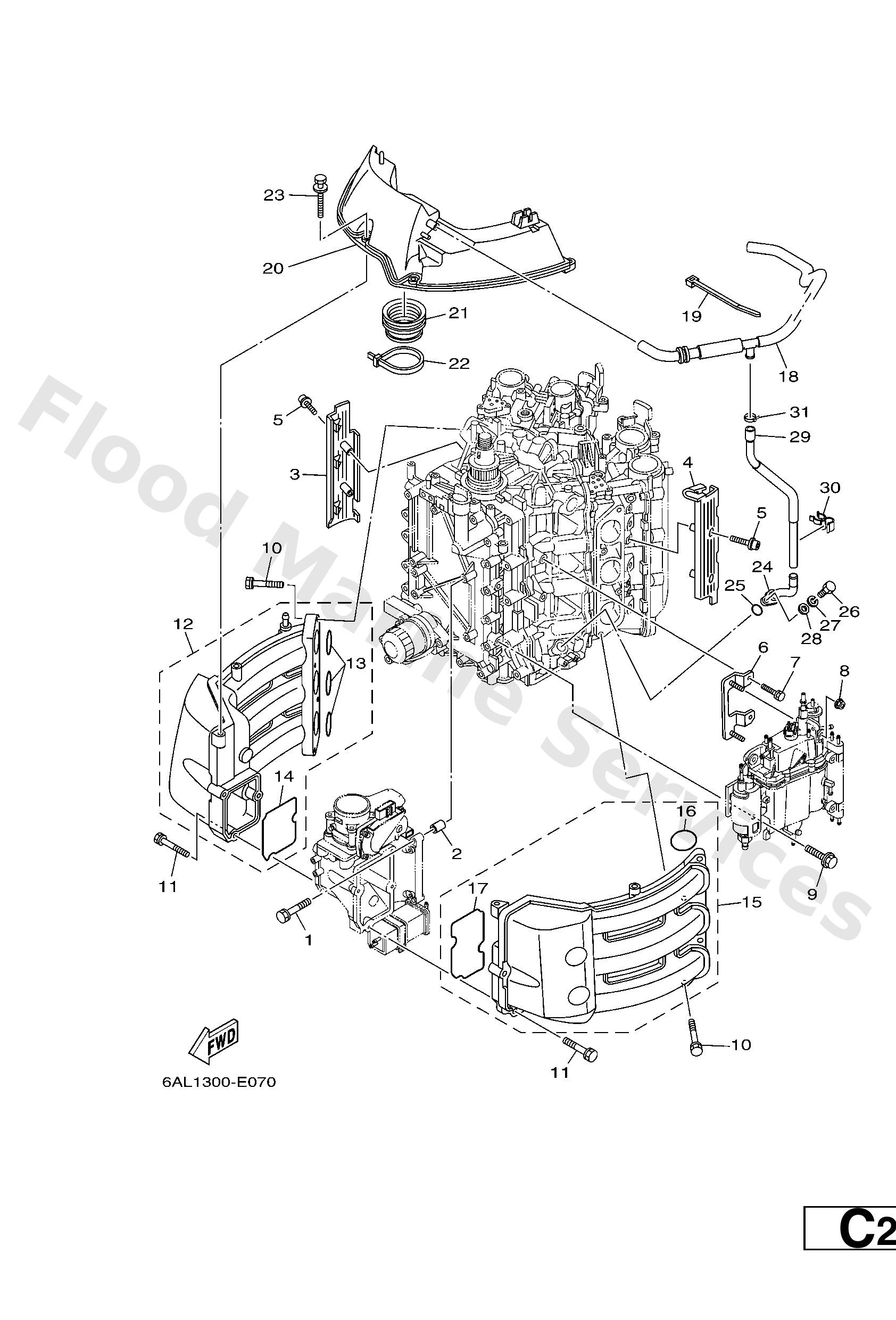

Diagram: INTAKE 1

Diagram

Parts List

9757508540
Bolt, With Washer
Diagram Reference: 1
Get Part
9953010114
Pin, Dowel
Diagram Reference: 2
Get Part
6P21356400
Cover, manifold
Diagram Reference: 3
Get Part
6P21359400
Cover, manifold 2
Diagram Reference: 4
Get Part
9011006038
16
Diagram Reference: 5
Get Part
6P22442200
-
Diagram Reference: 6
Get Part
9757506516
8
Diagram Reference: 7
Get Part
9017906M28
Nut
Diagram Reference: 8
Get Part
9011906M24
Bolt, With Washer
Diagram Reference: 9
Get Part
9011906MA6
Bolt, With Washer
Diagram Reference: 11
Get Part
6P21364100
Manifold 1
Diagram Reference: 12
Get Part
6P21364500
Gasket, manifold 1
Diagram Reference: 13
Get Part
6P21364600
Gasket, manifold 2
Diagram Reference: 14
Get Part
6P21364200
Manifold 2
Diagram Reference: 15
Get Part
6P21364700
Gasket, manifold 3
Diagram Reference: 17
Get Part
6P21537301
Pipe, breather
Diagram Reference: 18
Get Part
9046513M18
Clamp
Diagram Reference: 19
Get Part
6P21444000
Silencer assembly, intake
Diagram Reference: 20
Get Part
6P21441J00
Pipe, Silencer
Diagram Reference: 21
Get Part
9046499004
Clamp
Diagram Reference: 22
Get Part
9011906M35
Bolt, With Washer
Diagram Reference: 23
Get Part
6P21137200
Nipple, hose
Diagram Reference: 24
Get Part
9321019MJ3
O-Ring
Diagram Reference: 25
Get Part
9709506020
Bolt
Diagram Reference: 26
Get Part
9299506100
Washer, Spring
Diagram Reference: 27
Get Part
9299506600
10
Diagram Reference: 28
Get Part
6P21137700
Hose
Diagram Reference: 29
Get Part
9046420011
Clamp
Diagram Reference: 30
Get Part
9046511M10
Clamp
Diagram Reference: 31
Get Part
