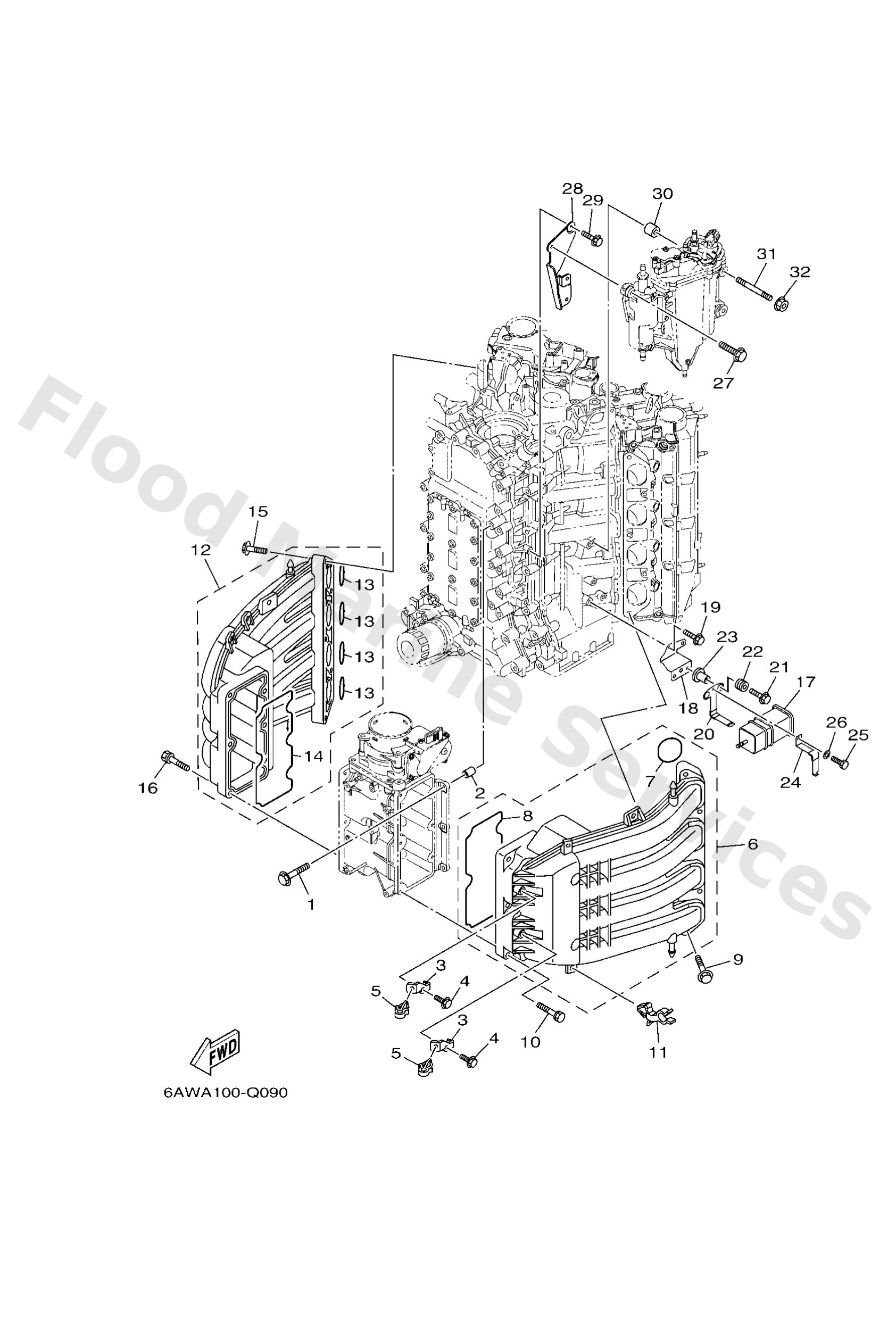

Diagram: INTAKE 1

Diagram

Parts List

9587508035
Bolt, flange
Diagram Reference: 1
Get Part
9953010114
Pin, dowel(3vd)
Diagram Reference: 2
Get Part
6AW1378200
Stay
Diagram Reference: 3
Get Part
9759506512
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Get Part
9046409023
Clamp
Diagram Reference: 5
Get Part
6AW1364110
Manifold 1
Diagram Reference: 6
Get Part
6AW1364500
Gasket, manifold 1
Diagram Reference: 7
Get Part
6AW1364600
Gasket, manifold 2
Diagram Reference: 8
Get Part
9011908022
Bolt, with washer
Diagram Reference: 9
Get Part
9011906MA6
Bolt, with washer
Diagram Reference: 10
Get Part
9046417006
Clamp
Diagram Reference: 11
Get Part
6P22417000
Canister assembly
Diagram Reference: 17
Get Part
6AW2134X10
Bracket, canister
Diagram Reference: 18
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 19
Get Part
69J2134X00
Bracket, canister
Diagram Reference: 20
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 21
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 22
Get Part
9038706289
Collar
Diagram Reference: 23
Get Part
69J2419A01
Holder
Diagram Reference: 24
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 25
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 26
Get Part
9011906M24
Bolt, with washer
Diagram Reference: 27
Get Part
6AW2441900
Brkt., separator
Diagram Reference: 28
Get Part
9038706276
Collar
Diagram Reference: 30
Get Part
9011606046
Bolt, stud
Diagram Reference: 31
Get Part
9017906M28
Nut(63v)
Diagram Reference: 32
Get Part
