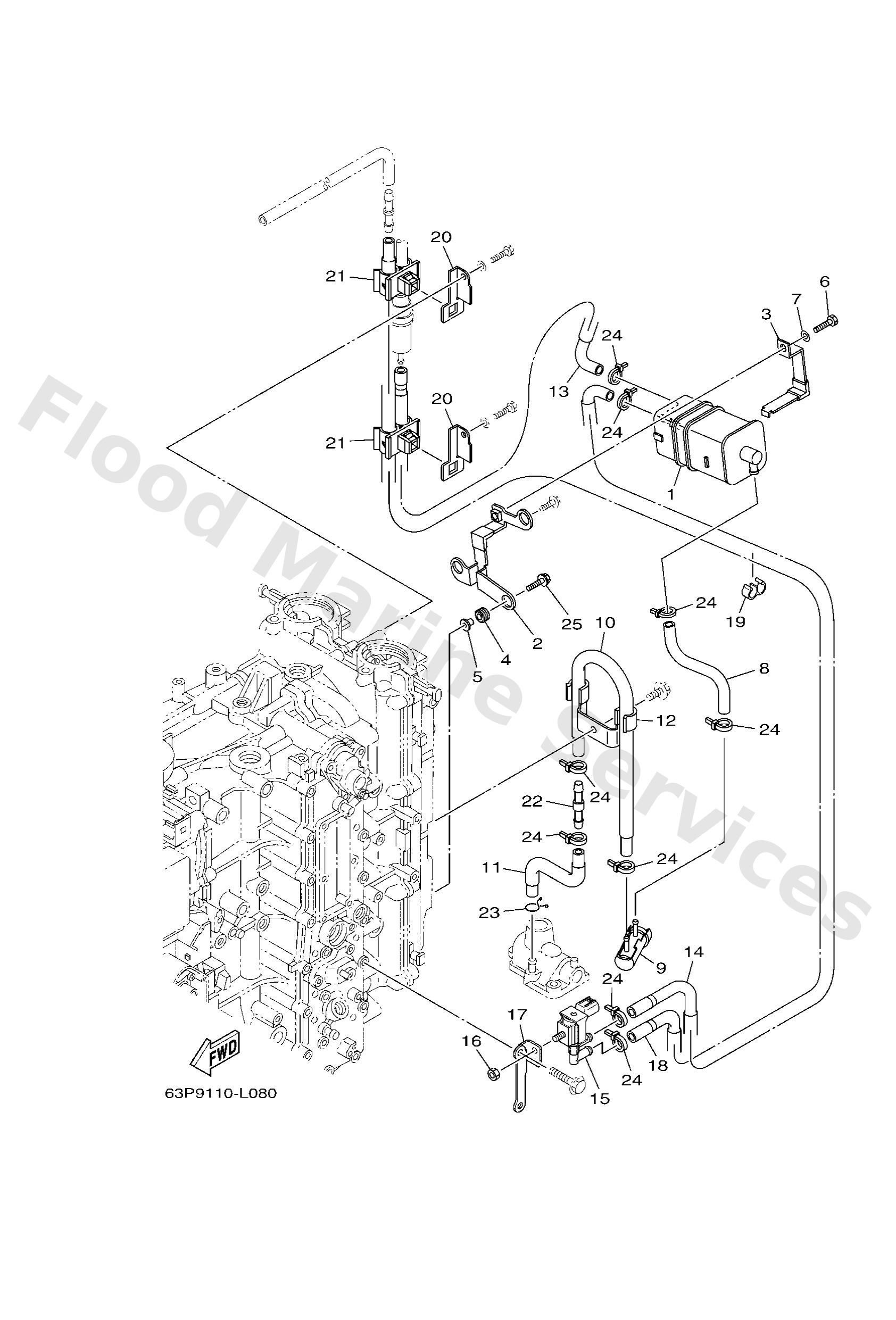

Diagram: INTAKE 2

Diagram

Parts List

6P22417000
Canister assembly
Diagram Reference: 1
Get Part
63P2134X00
Bracket, canister
Diagram Reference: 2
Get Part
63P2419A01
Holder
Diagram Reference: 3
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 4
Get Part
9038706M60
Collar (6h3)
Diagram Reference: 5
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
64P2431300
Pipe 3
Diagram Reference: 8
Get Part
69J2450200
Filter, fuel
Diagram Reference: 9
Get Part
64P2431200
Pipe 2
Diagram Reference: 10
Get Part
64P2431100
Pipe, fuel 1
Diagram Reference: 11
Get Part
63P2436701
Clamp, fuel pipe 2
Diagram Reference: 12
Get Part
64P2431500
Pipe 5
Diagram Reference: 13
Get Part
64P2431600
Pipe 6
Diagram Reference: 14
Get Part
6C58612000
Solenoid valve assembly
Diagram Reference: 15
Get Part
9538006600
Nut(661)
Diagram Reference: 16
Get Part
63P8184510
Plate
Diagram Reference: 17
Get Part
64P2431410
Pipe 4
Diagram Reference: 18
Get Part
9046409M31
Clamp(6m7)
Diagram Reference: 19
Get Part
63P2436401
Stay
Diagram Reference: 20
Get Part
9046411012
Clamp
Diagram Reference: 21
Get Part
6E52437900
Pipe, joint 4
Diagram Reference: 22
Get Part
9046709M09
Clip(6k8)
Diagram Reference: 23
Get Part
9046511M10
Clamp
Diagram Reference: 24
Get Part
9011906135
Bolt, with washer
Diagram Reference: 25
Get Part
