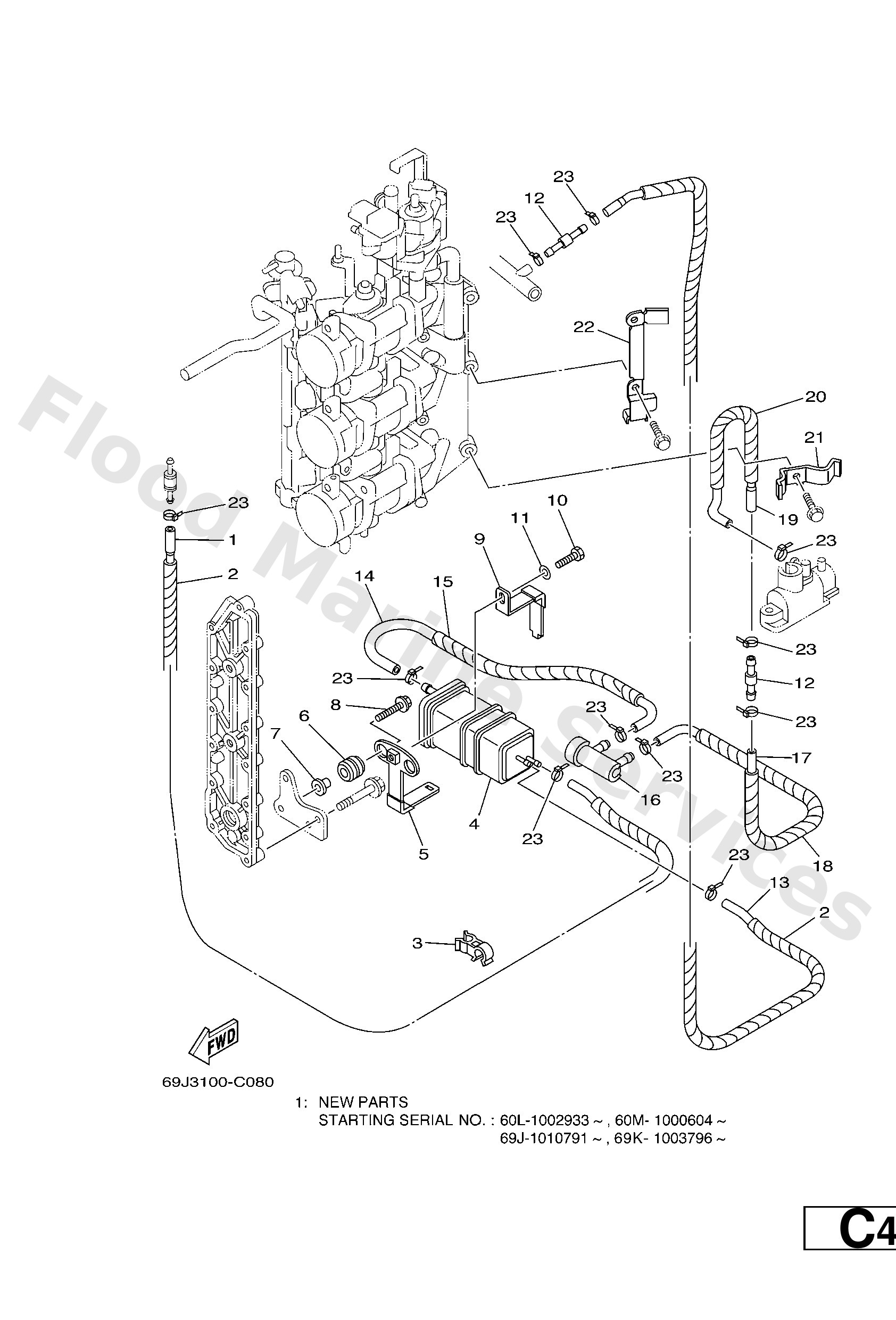

Diagram: INTAKE 2

Diagram

Parts List

60L2431500 (NEW PARTS *1)

Pipe 5

Diagram Reference: 1

9044810005 (NEW PARTS *1)

Hose, with union

Diagram Reference: 2

9046412004 (NEW PARTS *1)

Clamp

Diagram Reference: 3

69J2417000 (NEW PARTS *1)

Canister assembly

Diagram Reference: 4

69J2134X00 (NEW PARTS *1)

Bracket, canister

Diagram Reference: 5

9048010M23 (NEW PARTS *1)

Grommet(6k7)

Diagram Reference: 6

9038706M60 (NEW PARTS *1)

Collar (6h3)

Diagram Reference: 7

9011906M59 (NEW PARTS *1)

Bolt, with washer

Diagram Reference: 8

69J2419A00 (NEW PARTS *1)

Holder

Diagram Reference: 9

9709506016 (NEW PARTS *1)

Bolt, hexagon deep recess

Diagram Reference: 10

9299506600 (NEW PARTS *1)

Washer, plain (646)

Diagram Reference: 11

6E52437900 (NEW PARTS *1)

Pipe, joint 4

Diagram Reference: 12

60L2431400 (NEW PARTS *1)

Pipe 4

Diagram Reference: 13

60L2431300 (NEW PARTS *1)

Pipe 3

Diagram Reference: 14

9044812002 (NEW PARTS *1)

Hose, with union

Diagram Reference: 15

69J2450200 (NEW PARTS *1)

Filter, fuel

Diagram Reference: 16

60L2431200 (NEW PARTS *1)

Pipe 2

Diagram Reference: 17

9044812001 (NEW PARTS *1)

Hose, With Union

Diagram Reference: 18

60L2431100 (NEW PARTS *1)

-

Diagram Reference: 19

9044810002 (NEW PARTS *1)

Hose, With Union

Diagram Reference: 20

60L2436700 (NEW PARTS *1)

Clamp, fuel pipe 2

Diagram Reference: 21

60L2436600 (NEW PARTS *1)

Clamp, fuel pipe 1

Diagram Reference: 22

9046511M10 (NEW PARTS *1)

Clamp

Diagram Reference: 23
