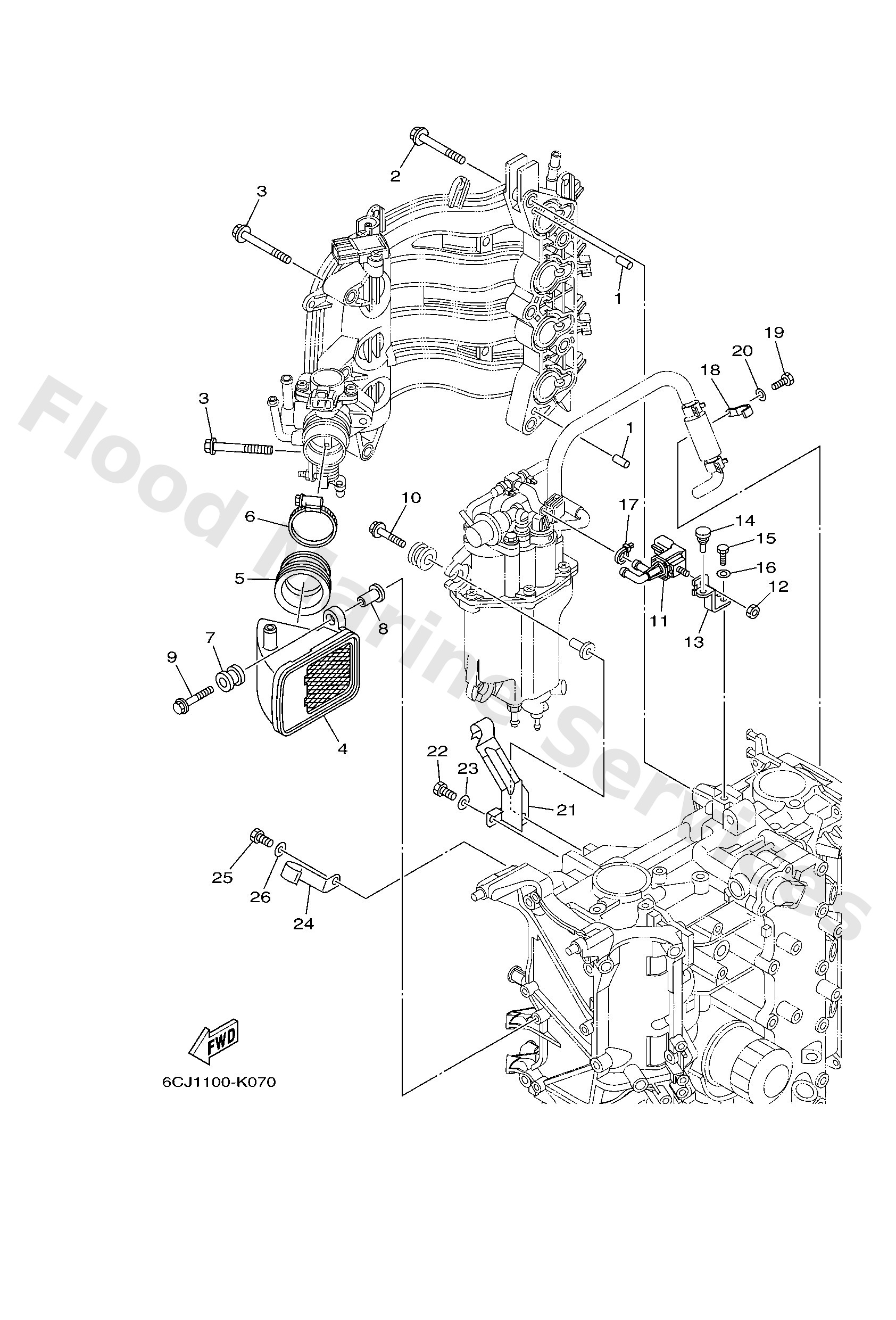

Diagram: INTAKE 2

Diagram

Parts List

9360812M05
Pin, dowel b (6e5)
Diagram Reference: 1
Get Part
9011908069
Bolt, with washer
Diagram Reference: 2
Get Part
9011906087
Bolt, with washer
Diagram Reference: 3
Get Part
6C51444000
Silencer assembly, intake
Diagram Reference: 4
Get Part
6C51445301
Joint, air cleaner 1
Diagram Reference: 5
Get Part
9045050001
Hose Clamp assembly
Diagram Reference: 6
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 7
Get Part
9038706119
Collar
Diagram Reference: 8
Get Part
9011906106
Bolt, with washer
Diagram Reference: 9
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 10
Get Part
6C58612000
Solenoid valve assembly
Diagram Reference: 11
Get Part
9538006600
Nut(661)
Diagram Reference: 12
Get Part
6BG8611200
Stay, solenoid
Diagram Reference: 13
Get Part
9048006M19
Grommet (6e3)
Diagram Reference: 14
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 15
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 16
Get Part
9046511M10
Clamp
Diagram Reference: 17
Get Part
6CJ1342800
Bracket, strainer 1
Diagram Reference: 18
Get Part
6C51537800
Holder
Diagram Reference: 21
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 22
Get Part
6C51537811
Holder
Diagram Reference: 24
