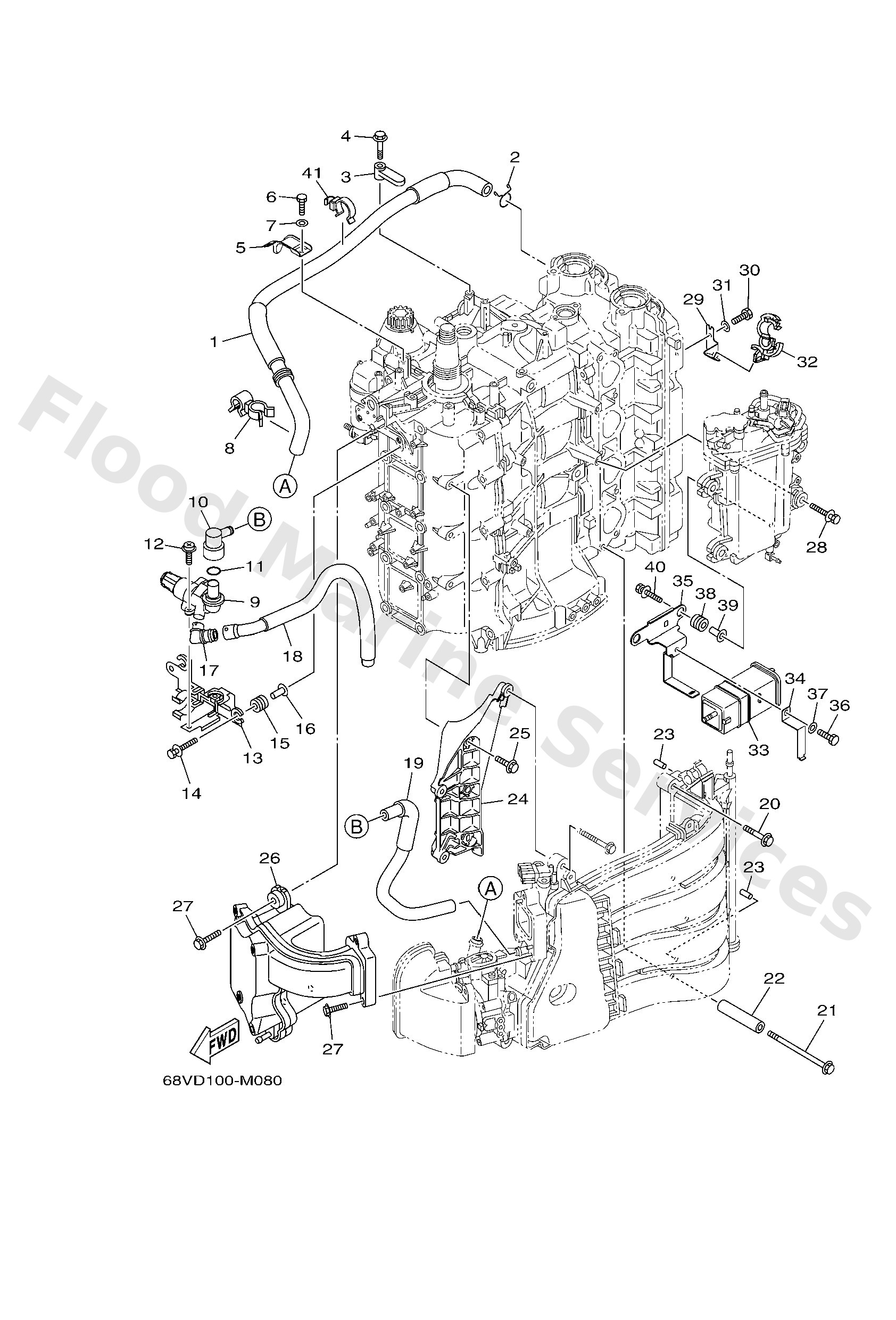

Diagram: INTAKE 2

Diagram

Parts List

68V1537300
Pipe, breather
Diagram Reference: 1
Get Part
9046720M15
Clip
Diagram Reference: 2
Get Part
6D88254400
Clamp
Diagram Reference: 3
Get Part
9587506025
Bolt, flange deep recess
Diagram Reference: 4
Get Part
68V8238900
Plate 2
Diagram Reference: 5
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
9046420011
Clamp
Diagram Reference: 8
Get Part
6C51371300
Valve, idle speed control
Diagram Reference: 9
Get Part
6CJ1137200
Nipple, hose
Diagram Reference: 10
Get Part
9321033003
O-ring
Diagram Reference: 11
Get Part
9798005214
Screw, with washer
Diagram Reference: 12
Get Part
68V1315200
Stay 2
Diagram Reference: 13
Get Part
9011906M17
Bolt, with washer
Diagram Reference: 14
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 15
Get Part
9038706289
Collar
Diagram Reference: 16
Get Part
68V1389700
Pipe, air
Diagram Reference: 17
Get Part
68V1389200
Hose, air 2
Diagram Reference: 18
Get Part
68V1354310
Hose, air
Diagram Reference: 19
Get Part
9010508M87
Bolt, washer based
Diagram Reference: 20
Get Part
9010508242
Bolt, flange
Diagram Reference: 21
Get Part
9038709017
Collar
Diagram Reference: 22
Get Part
9169050014
Pin, spring (647)
Diagram Reference: 23
Get Part
68V1429110
Bracket 1
Diagram Reference: 24
Get Part
9589508020
Bolt, flange deep recess
Diagram Reference: 25
Get Part
68V1364200
Manifold 2
Diagram Reference: 26
Get Part
9589506030
Bolt, flange deep recess
Diagram Reference: 27
Get Part
9011906M24
Bolt, with washer
Diagram Reference: 28
Get Part
68V2145700
Plate, pipe guide
Diagram Reference: 29
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 32
Get Part
6P22417000
Canister assembly
Diagram Reference: 33
Get Part
68V2419A00
Holder
Diagram Reference: 34
Get Part
68V2134X00
Bracket, canister
Diagram Reference: 35
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 36
Get Part
9046426002
Clamp
Diagram Reference: 41
