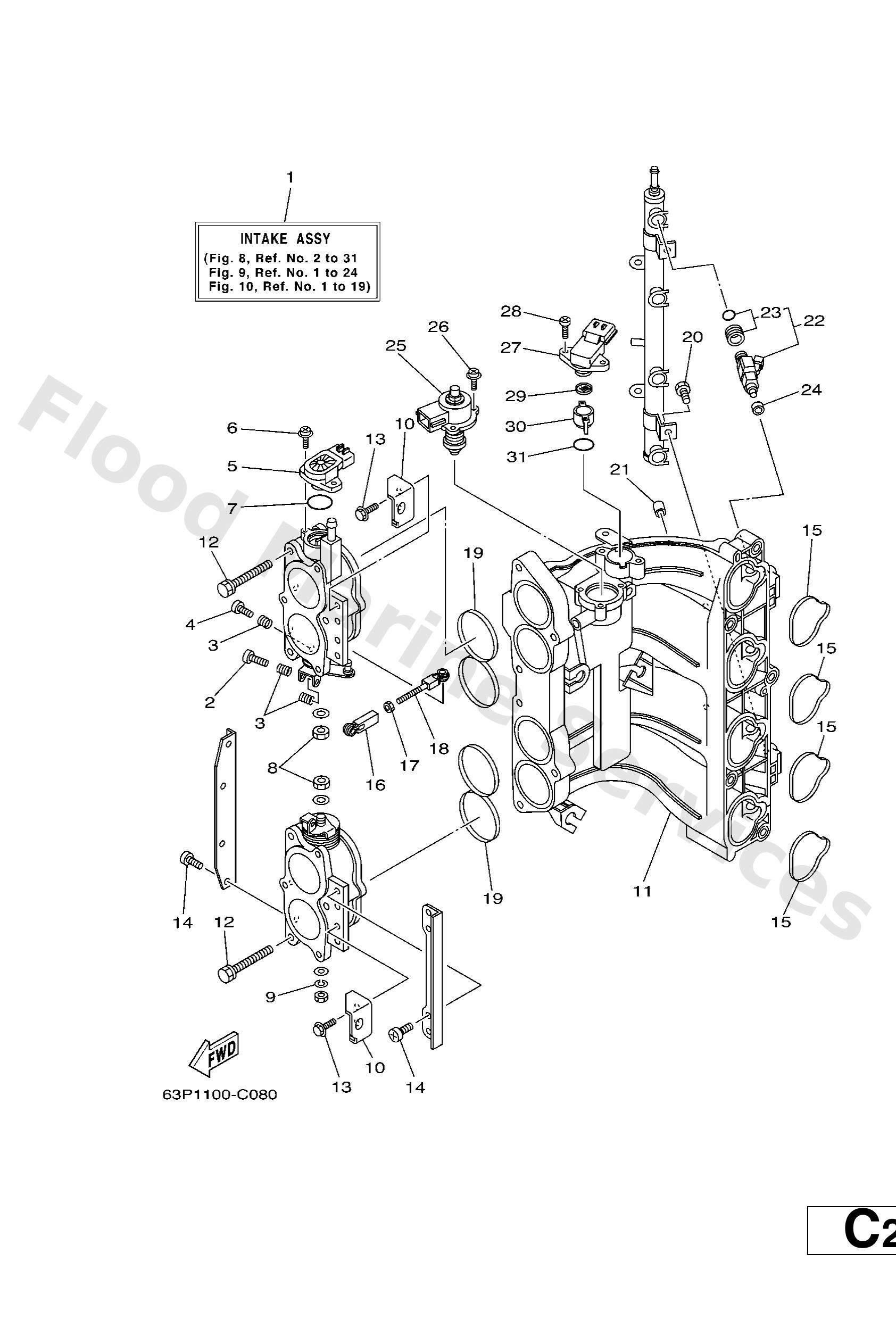

Diagram: INTAKE 2
Parts List
Intake assembly
Diagram Reference: 1
Screw, throttle
Diagram Reference: 2
Spring, throttle valve
Diagram Reference: 3
Screw, air adjusting
Diagram Reference: 4
Throttle sensor assembly
Diagram Reference: 5
Screw 1
Diagram Reference: 6
O-ring 1
Diagram Reference: 7
Washer, spring
Diagram Reference: 9
Bracket 1
Diagram Reference: 10
Manifold 1
Diagram Reference: 11
Bolt
Diagram Reference: 12
Bolt, with washer(6r6)
Diagram Reference: 13
Screw
Diagram Reference: 14
Gasket, manifold 1
Diagram Reference: 15
Joint, link
Diagram Reference: 16
Nut (656)
Diagram Reference: 17
Joint, link
Diagram Reference: 18
Gasket
Diagram Reference: 19
Bolt
Diagram Reference: 20
Cap
Diagram Reference: 21
Injector
Diagram Reference: 22
Packing kit
Diagram Reference: 23
Rubber, injector
Diagram Reference: 24
Valve, control
Diagram Reference: 25
Screw 2
Diagram Reference: 26
Sensor, pressure
Diagram Reference: 27
Screw 3
Diagram Reference: 28
Filter comp.
Diagram Reference: 29
Holder
Diagram Reference: 30
O-ring
Diagram Reference: 31
