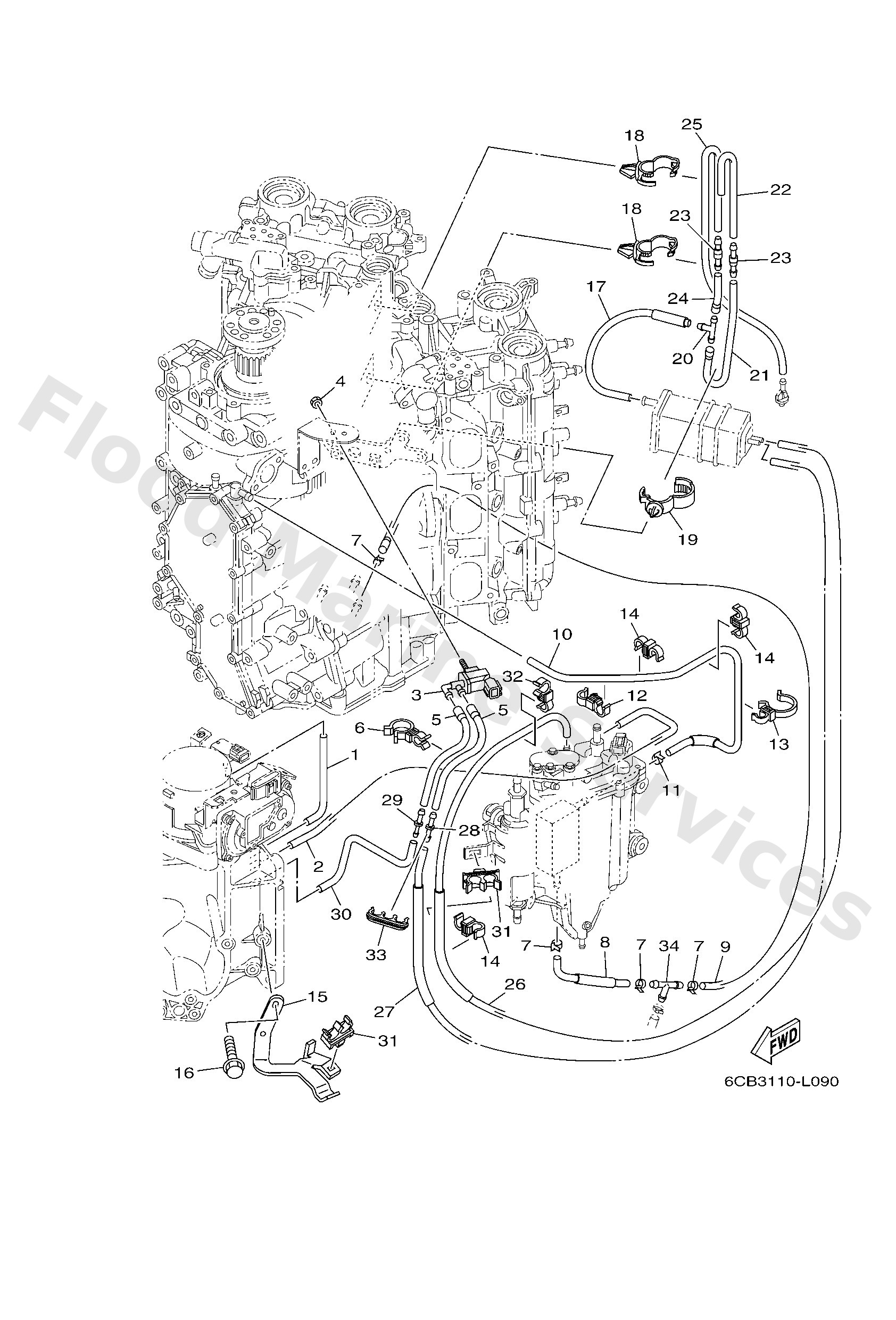

Diagram: INTAKE 2
Parts List
Hose, vacuum sensing 4
Diagram Reference: 1
Hose, vacuum sensing 3
Diagram Reference: 2
Solenoid valve assembly
Diagram Reference: 3
Nut(661)
Diagram Reference: 4
Hose
Diagram Reference: 5
Clamp
Diagram Reference: 6
Clamp
Diagram Reference: 7
Pipe 2
Diagram Reference: 8
Hose (l1500)
Diagram Reference: 9
Pipe 4
Diagram Reference: 10
Clamp
Diagram Reference: 12
Clamp
Diagram Reference: 13
Clamp
Diagram Reference: 14
Stay
Diagram Reference: 15
Bolt, flange deep recess
Diagram Reference: 16
Hose 1
Diagram Reference: 17
Clamp(4ap)
Diagram Reference: 18
Clamp(m80)
Diagram Reference: 19
Pipe, joint
Diagram Reference: 20
Hose 2
Diagram Reference: 21
Hose 3
Diagram Reference: 22
Breezer
Diagram Reference: 23
Hose, air 4
Diagram Reference: 24
Pipe 3
Diagram Reference: 25
Pipe 1
Diagram Reference: 26
Pipe 3
Diagram Reference: 27
Pipe, joint 1
Diagram Reference: 28
Orifice, air vent
Diagram Reference: 29
Pipe 4
Diagram Reference: 30
Clamp
Diagram Reference: 31
Clamp
Diagram Reference: 33
