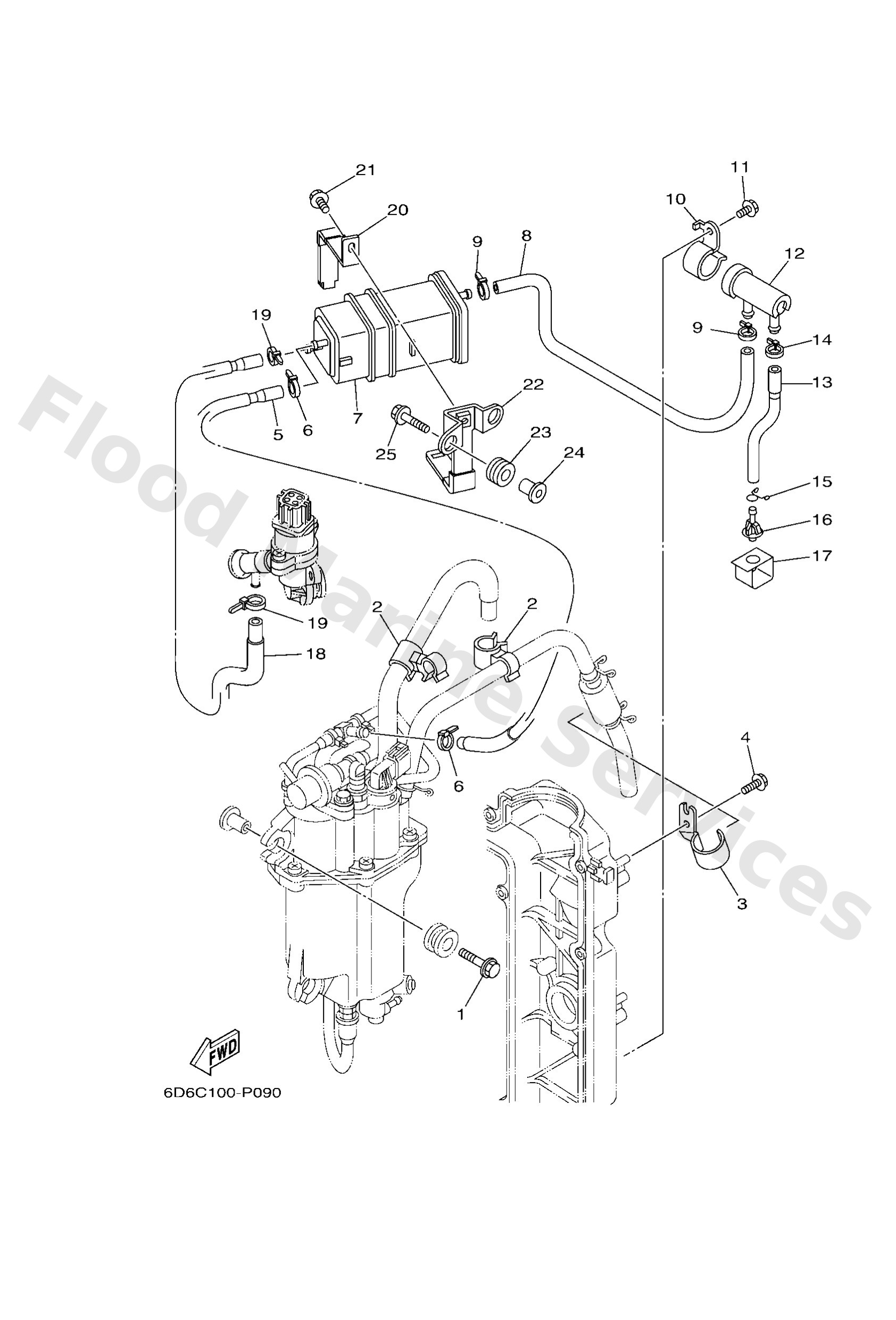

Diagram: INTAKE 3

Diagram

Parts List

9011906M08
Bolt, with washer
Diagram Reference: 1
Get Part
9046415007
Clamp
Diagram Reference: 2
Get Part
6D81342801
Bracket, strainer 1
Diagram Reference: 3
Get Part
9759506512
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Get Part
6D82431401
Pipe 4
Diagram Reference: 5
Get Part
9046511M10
Clamp
Diagram Reference: 6
Get Part
69J2417000
Canister assembly
Diagram Reference: 7
Get Part
6D82431500
Pipe 5
Diagram Reference: 8
Get Part
6D82417H01
Clamp 1
Diagram Reference: 10
Get Part
9759506510
Bolt, hexagon w/w deep recess
Diagram Reference: 11
Get Part
69J2450200
Filter, fuel
Diagram Reference: 12
Get Part
6D82431600
Pipe 6
Diagram Reference: 13
Get Part
9046709M03
Clip(6k8)
Diagram Reference: 15
Get Part
69J4439100
Nipple, hose
Diagram Reference: 16
Get Part
6D82413X01
Plate
Diagram Reference: 17
Get Part
6D82431701
Pipe 7
Diagram Reference: 18
Get Part
69J2419A01
Holder
Diagram Reference: 20
Get Part
9759506516
Bolt, with washer(6r6)
Diagram Reference: 21
Get Part
6D82134X00
Bracket, canister
Diagram Reference: 22
Get Part
9048010M23
Grommet(6k7)
Diagram Reference: 23
Get Part
9038706289
Collar
Diagram Reference: 24
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 25
Get Part
