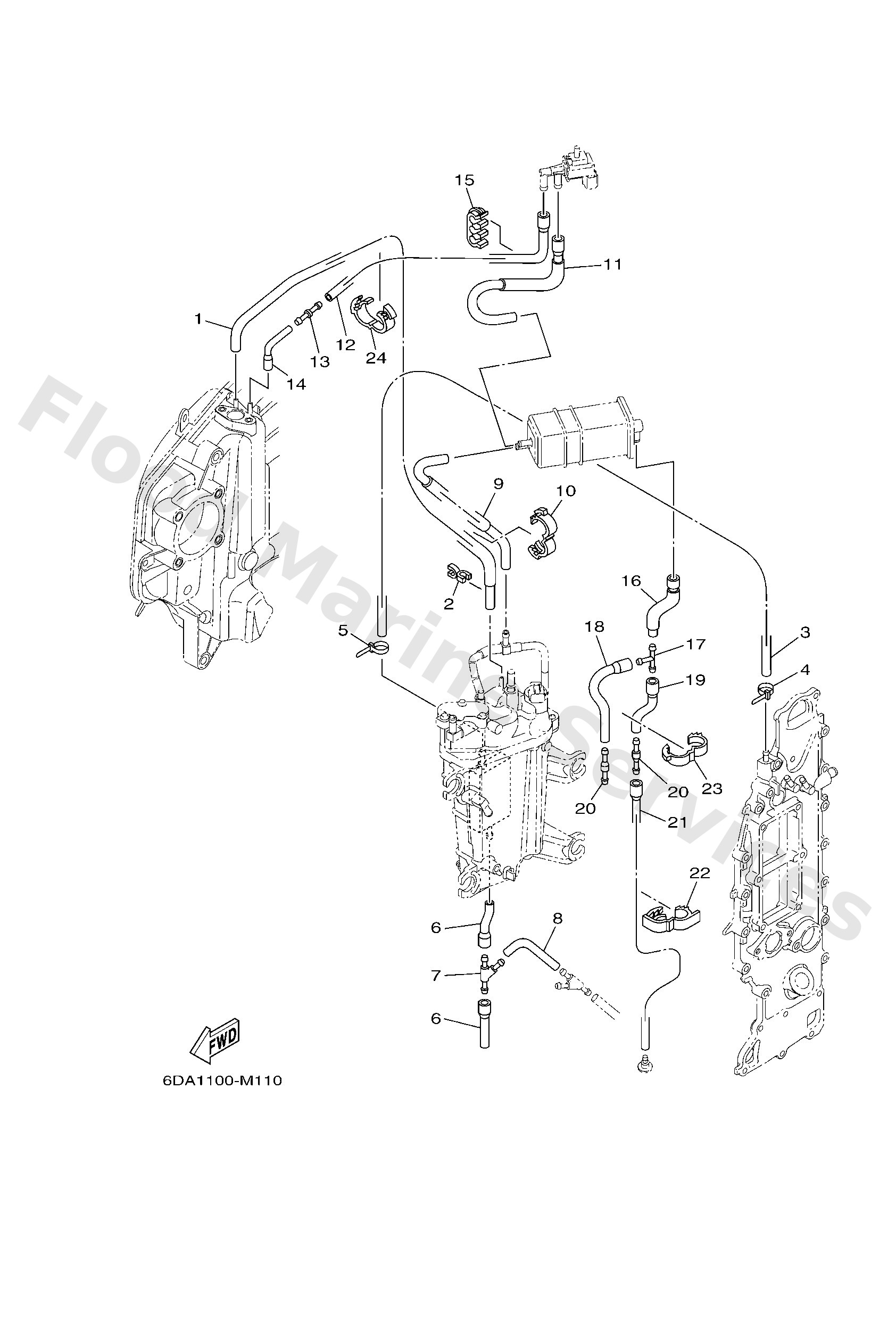

Diagram: INTAKE 3
Parts List
Hose, vacuum sensing 3
Diagram Reference: 1
Clamp(62y)
Diagram Reference: 2
Hose (l1500)
Diagram Reference: 3
Clamp
Diagram Reference: 4
Hose 1
Diagram Reference: 6
Pipe, joint 2
Diagram Reference: 7
Hose (l85)
Diagram Reference: 8
Pipe 1
Diagram Reference: 9
Clamp
Diagram Reference: 10
Pipe 3
Diagram Reference: 11
Hose
Diagram Reference: 12
Orifice, air vent
Diagram Reference: 13
Pipe 4
Diagram Reference: 14
Clamp
Diagram Reference: 15
Hose 1
Diagram Reference: 16
Pipe, joint
Diagram Reference: 17
Hose 2
Diagram Reference: 18
Hose, air 4
Diagram Reference: 19
Breezer
Diagram Reference: 20
Hose 3
Diagram Reference: 21
Clamp
Diagram Reference: 22
