F115AET (2000)
Intake

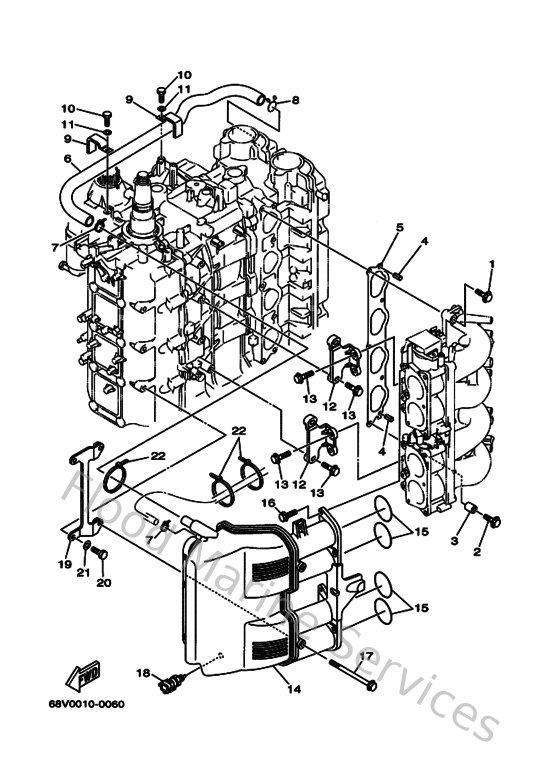

Diagram: Intake
Parts List
Reference
Description
Price
1
975750854000
Bolt, hexagon w/w deep recess
Loading…
↗
2
9011908M6800
Bolt, with washer
Loading…
↗
3
9038708M3200
Collar
Loading…
↗
4
916905001400
Pin, spring (647)
Loading…
↗
5
68V136450000
Gasket, manifold 1
Loading…
↗
6
67F153730000
Pipe, breather
Loading…
↗
7
904651009800
Clamp
Loading…
↗
8
9046720M1500
Clip
Loading…
↗
9
9046512M0300
Clamp, cord (688)
Loading…
↗
10
970950601200
Bolt(gh1)
Loading…
↗
11
929950660000
Washer, plain (646)
Loading…
↗
12
68V142910000
Bracket 1
Loading…
↗
13
9011906M4900
Bolt, with washer
Loading…
↗
14
68V144400000
Silencer assembly Intake
Loading…
↗
15
9321048MJ900
O-ring
Loading…
↗
16
9011906M8200
Bolt, with washer
Loading…
↗
17
9011906ME100
Bolt, with washer
Loading…
↗
18
65L858860000
Thermosensor
Loading…
↗
19
68V142920000
Bracket 2
Loading…
↗
20
970950802000
Bolt, hexagon
Loading…
↗
21
929950860000
Washer, plain (663)
Loading…
↗
22
9046513M1800
Clamp
Loading…
↗
