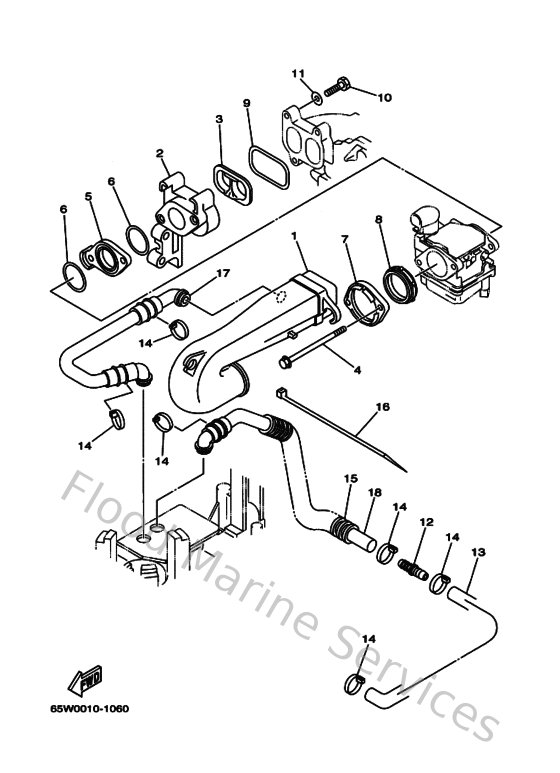

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
65W144400000
Silencer assembly, intake
Loading…

↗
2
65W136400000
Manifold
Loading…

↗
3
65W133230000
Insert
Loading…

↗
4
65W144960000
Bolt
Loading…

↗
5
65W142710000
Insulator
Loading…

↗
6
65W141980000
Gasket
Loading…

↗
7
65W142620000
Flange
Loading…

↗
8
65W144571000
Seal
Loading…

↗
9
65W136450000
Gasket, manifold 1
Loading…

↗
10
970950602500
Bolt
Loading…

↗
11
929900660000
Washer, plain (646)
Loading…

↗
12
65W243770000
Pipe, joint 3
Loading…

↗
13
65W153971000
Pipe
Loading…

↗
14
9046513M3600
Clamp(6h4)
Loading…

↗
15
9044624M8300
Hose
Loading…

↗
16
9046511M5200
Clamp(6e7)
Loading…

↗
17
65W153700000
Breather assembly
Loading…

↗
18
65W153701000
Breather assembly
Loading…

↗
