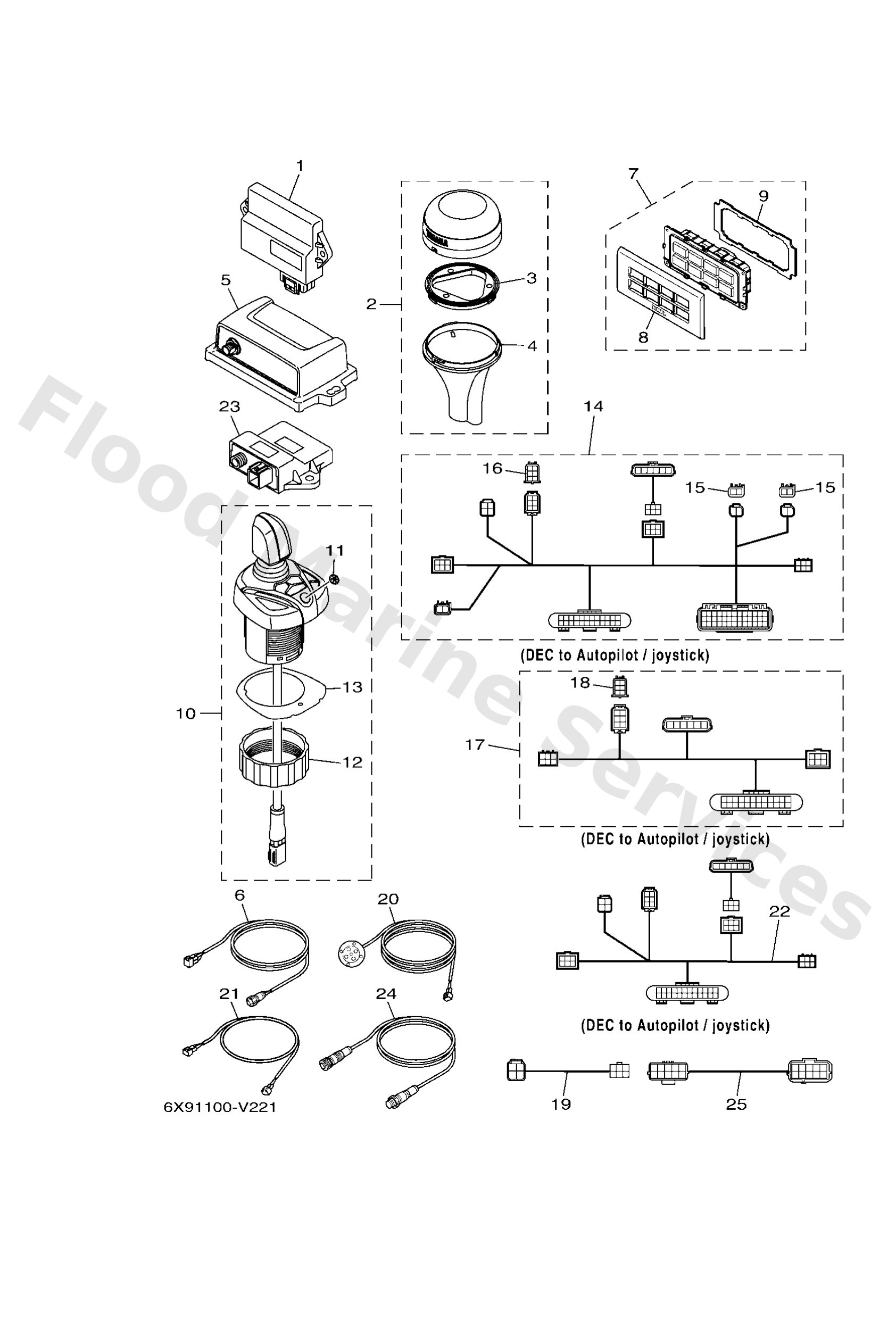

Diagram: JOYSTICK AND AUTOPILOT

Diagram

Parts List

6X98591T22 (UR ASK TO MARINE DIV)

Bcu (ap/joystick twin)

Diagram Reference: 1

6X98591T12 (UR ASK TO MARINE DIV)

Bcu (ap/joystick single)

Diagram Reference: 1

6X98591T50 (UR ASK TO MARINE DIV)

Bcu (ap/joystick quint)

Diagram Reference: 1

6X98591T42 (UR ASK TO MARINE DIV)

-

Diagram Reference: 1

6X98591T32 (UR ASK TO MARINE DIV)

Bcu (ap/joystick triple)

Diagram Reference: 1

6X98810700

Gps unit

Diagram Reference: 2

6X98252H00

Plate, holder

Diagram Reference: 3

6X98255H00

Holder, socket

Diagram Reference: 4

6X98A41000

Sensor unit

Diagram Reference: 5

6YM8355300

Conversion harness cl5-pigtail

Diagram Reference: 6

6X98253V00

Control panel assembly

Diagram Reference: 7

6X98257180

Panel, switch

Diagram Reference: 8

6X92248080

Seal assembly

Diagram Reference: 9

6X9482A000 (ASK TO MARINE DIV)

Joystick assembly blue

Diagram Reference: 10

6X94269700

Tuning fork mark

Diagram Reference: 11

6X94815600

Nut 1

Diagram Reference: 12

6X94823A00

Packing

Diagram Reference: 13

6X98238601

Extension wire harness

Diagram Reference: 14

68V8258210

Cap 1 (2p)

Diagram Reference: 15

6X98258220

Cap 1 (6p)

Diagram Reference: 16

6X98238610 (2ND STATION)

Extension, wire harness

Diagram Reference: 17

6X98355310 (6PIN-4PIN (MAIN BUS-PIGTAIL))

Wire, lead

Diagram Reference: 19

6ES8372001

L.e.d ass'y

Diagram Reference: 20

6X98258620 (UR 6.1M-20FT)

Extension prop lights 6m

Diagram Reference: 21

6X98258630 (UR 9.1M-30FT)

Extension prop lights 9m

Diagram Reference: 21

6X98258640 (UR 12.2M-40FT)

Extension prop lights 12m

Diagram Reference: 21

6X98238620 (FOR QUINT ENGINE)

Bcu harness (quint/main st)

Diagram Reference: 22

6YG8A2D010 (FOR OTHER COMPATIBLE MFD)

Gateway

Diagram Reference: 23

6YG8252100

Wire, lead

Diagram Reference: 24

6X98258600 (UR)

Extension, wire harness

Diagram Reference: 25

6X98258610 (UR)

Extension, wire harness

Diagram Reference: 25
