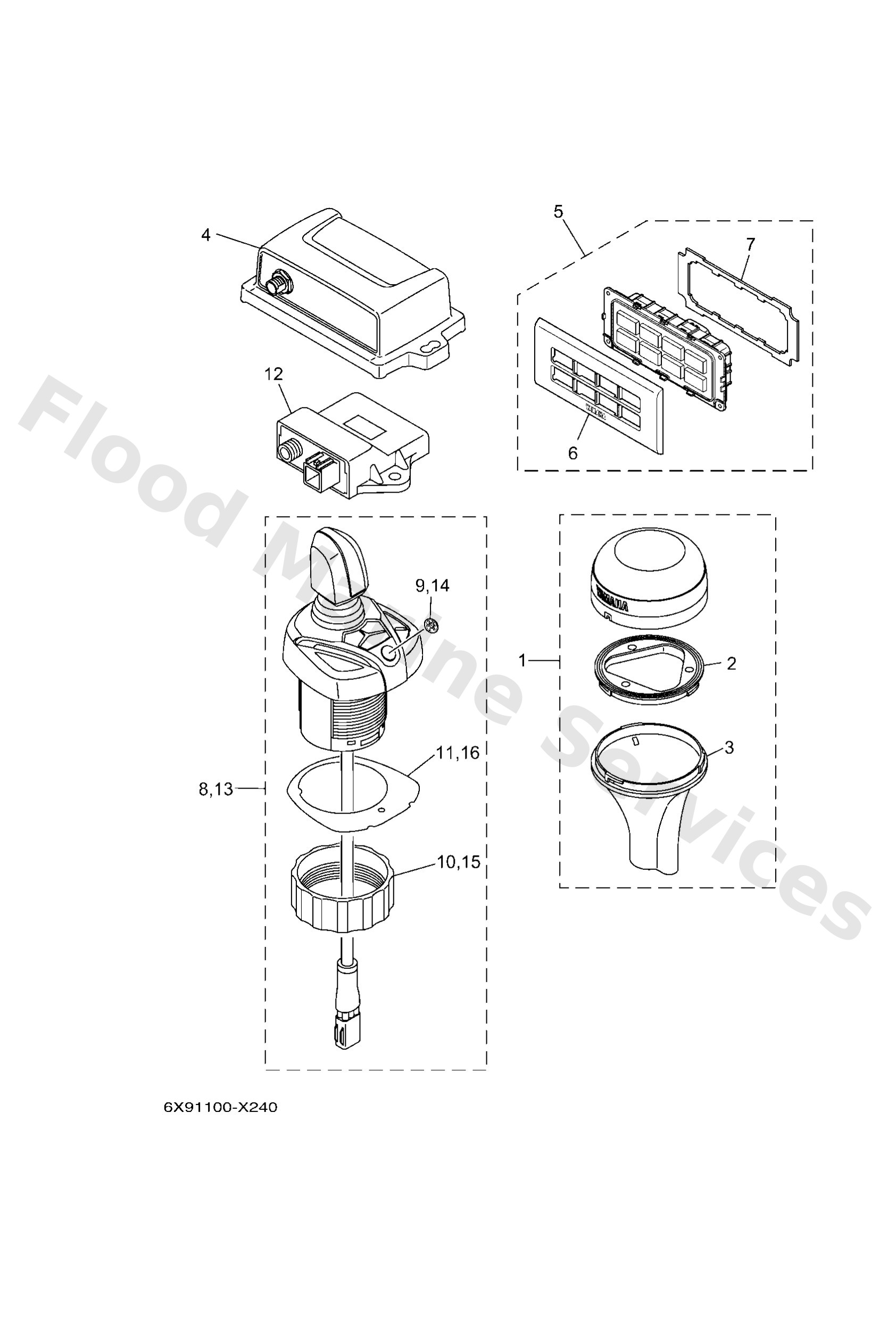

Diagram: JOYSTICK AND AUTOPILOT

Diagram

Parts List

6X98810702
Gps unit
Diagram Reference: 1
Get Part
6X98252H00
Plate, holder
Diagram Reference: 2
Get Part
6X98255H00
Holder, socket
Diagram Reference: 3
Get Part
6X98A41001
Heading Sensor
Diagram Reference: 4
Get Part
6X98253V01
Control panel assembly
Diagram Reference: 5
Get Part
6X98257180
Panel, switch
Diagram Reference: 6
Get Part
6X92248080
Seal assembly
Diagram Reference: 7
Get Part
6X9482A002 (ASK TO MARINE DIV)
Joystick assembly multicolor
Diagram Reference: 8
Get Part
6X94269700
Tuning fork mark
Diagram Reference: 9
Get Part
6X94815600
Nut 1
Diagram Reference: 10
Get Part
6X94823A00
Packing
Diagram Reference: 11
Get Part
6YG8A2D013 (FOR OTHER COMPATIBLE MFD)
Gateway
Diagram Reference: 12
Get Part
6X9482A010 (BLACK ASK TO MARINE DIV)
Joystick assembly
Diagram Reference: 13
Get Part
