Yamaha Outboard Parts - Kits De Reparation 1 - 6CMH (1997) | Flood Marine

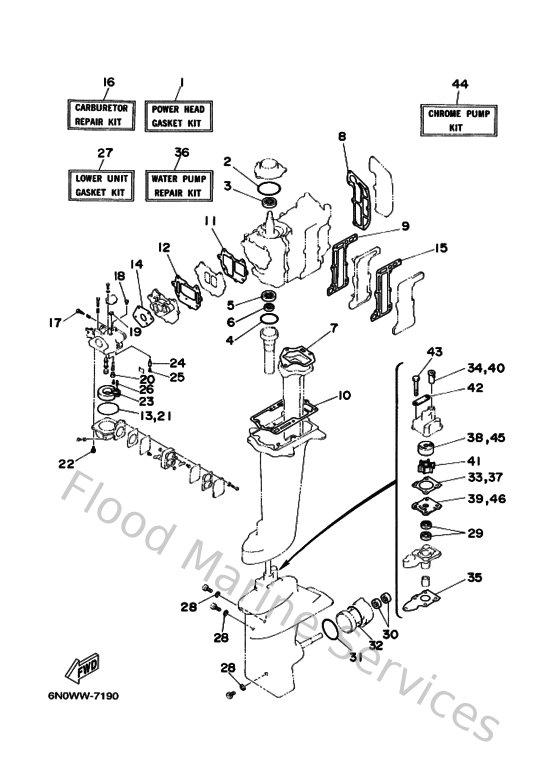

Diagram: Kits De Reparation 1

Diagram

Parts List

Reference
Description
Price


1
6N0W0001A000
Power head gasket kit
Loading…

↗
2
9321054M5400
O-ring (6g1)
Loading…

↗
3
9310220M2500
Oil seal (6e0)
Loading…

↗
4
932104215900
O-ring (647)
Loading…

↗
5
9310120M2900
Oil seal(6j1)
Loading…

↗
6
9310112M2600
Oil seal(6g1)
Loading…

↗
7
6G141133A000
Gasket, exhaust manifold 1
Loading…

↗
8
6G111193A100
Gasket, head cover 1
Loading…

↗
9
6G141112A100
Gasket, exhaust inner cover
Loading…

↗
10
6G141113A100
Outer cover, exhaust
Loading…

↗
11
6G113621A100
Gasket, valve seat
Loading…

↗
12
6G113645A100
Gasket, intake manifold
Loading…

↗
13
6G1149840000
Gasket, float chamber
Loading…

↗
14
6G114198A100
Gasket
Loading…

↗
15
6G141114A000
Gasket, exhaust outer cover
Loading…

↗
16
6N0W00930000
Carburetor repair kit
Loading…

↗
17
679149230000
Screw, pilot
Loading…

↗
18
6G1149660000
Cap
Loading…

↗
19
6G1141260000
Packing
Loading…

↗
20
679149660000
Rubber cap
Loading…

↗
22
979800411400
Screw, pan head(ga5)
Loading…

↗
23
6G1149850000
Float comp.
Loading…

↗
24
6G1145460100
Valve, needle
Loading…

↗
25
676141860000
Pin, valve
Loading…

↗
26
688145480000
Pin, arm
Loading…

↗
27
6N0W0001C000
Lower unit gasket kit
Loading…

↗
28
904300800300
Gasket
Loading…

↗
29
9310111M2300
Oil seal (6g1)
Loading…

↗
30
931011507400
Oil seal (655)
Loading…

↗
31
932104904600
O-ring (620)
Loading…

↗
32
9321053M0800
O-ring(50m)
Loading…

↗
33
6G144315A000
Gasket,water pump
Loading…

↗
34
647443660000
Damper, water seal 2
Loading…

↗
35
6G145315A000
Packing, lower casing
Loading…

↗
36
6N0W0078A000
Water pump repair kit
Loading…

↗
38
6G1443220000
Insert, cartridge
Loading…

↗
39
6G1443230000
Outer plate, cartridge
Loading…

↗
41
6G1443520000
Impeller
Loading…

↗
42
6G1443280000
Plate
Loading…

↗
43
973950604500
Bolt, hexagon
Loading…

↗
44
6N0W00780A00
Chrome pump kit
Loading…

↗
45
6G1443224000
Insert, cartridge
Loading…

↗
46
6G1443234000
Outer plate, cartridge
Loading…

↗
