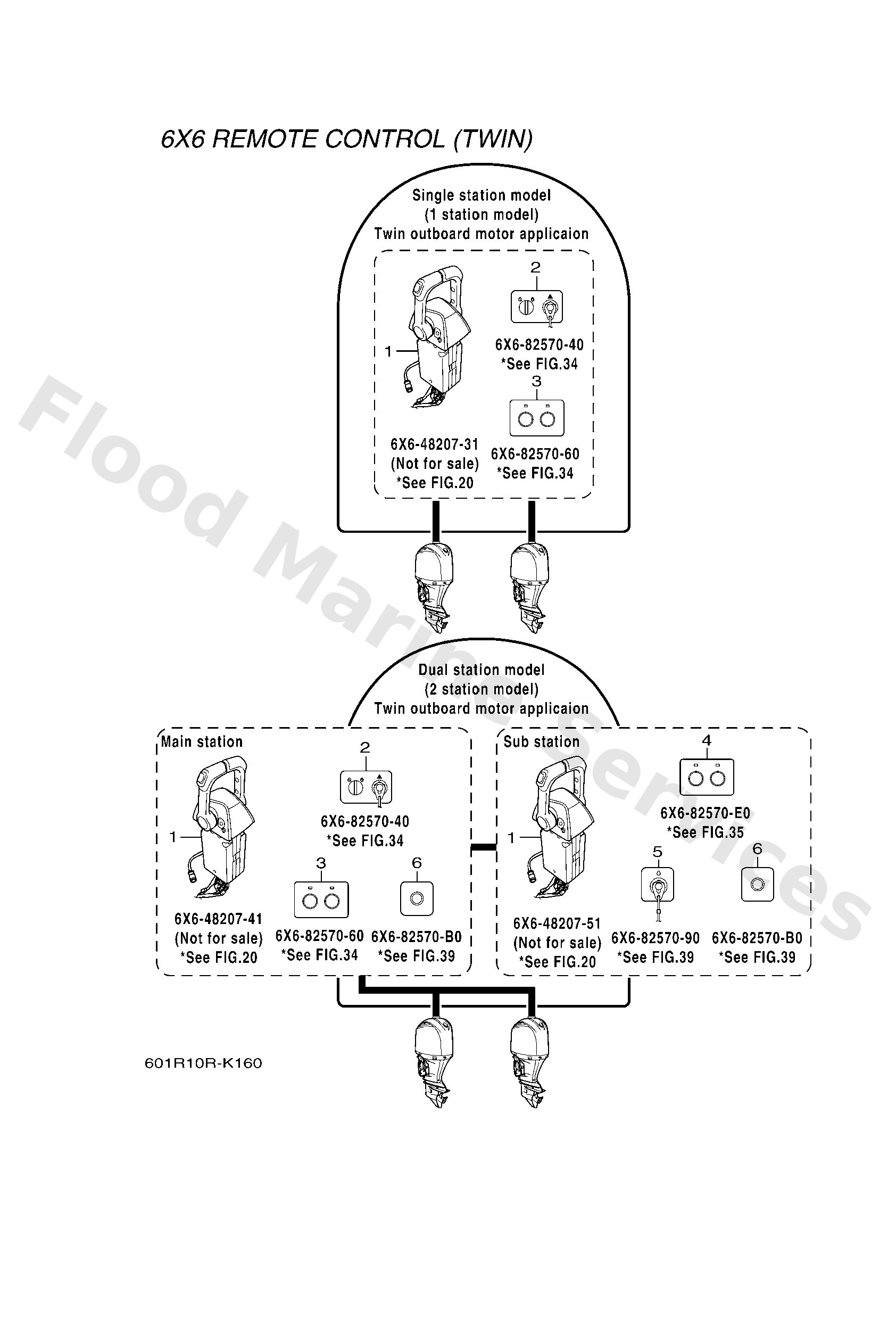

Diagram: LAYOUT CHART 2 (TWIN)

Diagram

Parts List

6X64820731 (NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X64820741 (NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X64820751 (NOT FOR SALE)
-
Diagram Reference: 1
Get Part
6X68257040 (& 2 STATION MAIN)
Switch panel dbw (twin)
Diagram Reference: 2
Get Part
6X68257060 (& 2 STATION MAIN)
Panel Switch assembly
Diagram Reference: 3
Get Part
6X682570E0 (STATION SUB)
Panel switch assembly
Diagram Reference: 4
Get Part
6X68257090 (STATION SUB)
Lanyard switch -2nd station
Diagram Reference: 5
Get Part
6X682570B0 (STATION MAIN & SUB)
Switch - station dual selector
Diagram Reference: 6
Get Part
