Yamaha Outboard Parts - LAYOUT CHART 4 (QUAD) - Rigging - Remote Control (2011)

6X64820901 (NOT FOR SALE)

-

Diagram Reference: 1

6X64820911 (NOT FOR SALE)

-

Diagram Reference: 1

6X682570R0 (& 2 STATION MAIN)

Panel switch assembly

Diagram Reference: 2

6X682570S0 (& 2 STATION MAIN)

Panel switch assembly

Diagram Reference: 3

6X682570T0 (& 2 STATION MAIN)

Panel switch assembly

Diagram Reference: 4

6X682570U0 (& 2 STATION MAIN)

Panel switch assembly

Diagram Reference: 5

6X682570V0 (STATION MAIN & SUB)

Panel switch assembly

Diagram Reference: 6

6X682570J0 (STATION SUB)

Panel switch assembly

Diagram Reference: 7

6X682570K0 (STATION SUB)

Panel switch assembly

Diagram Reference: 8

6X682570L0 (STATION MAIN & SUB)

Panel switch assembly

Diagram Reference: 9

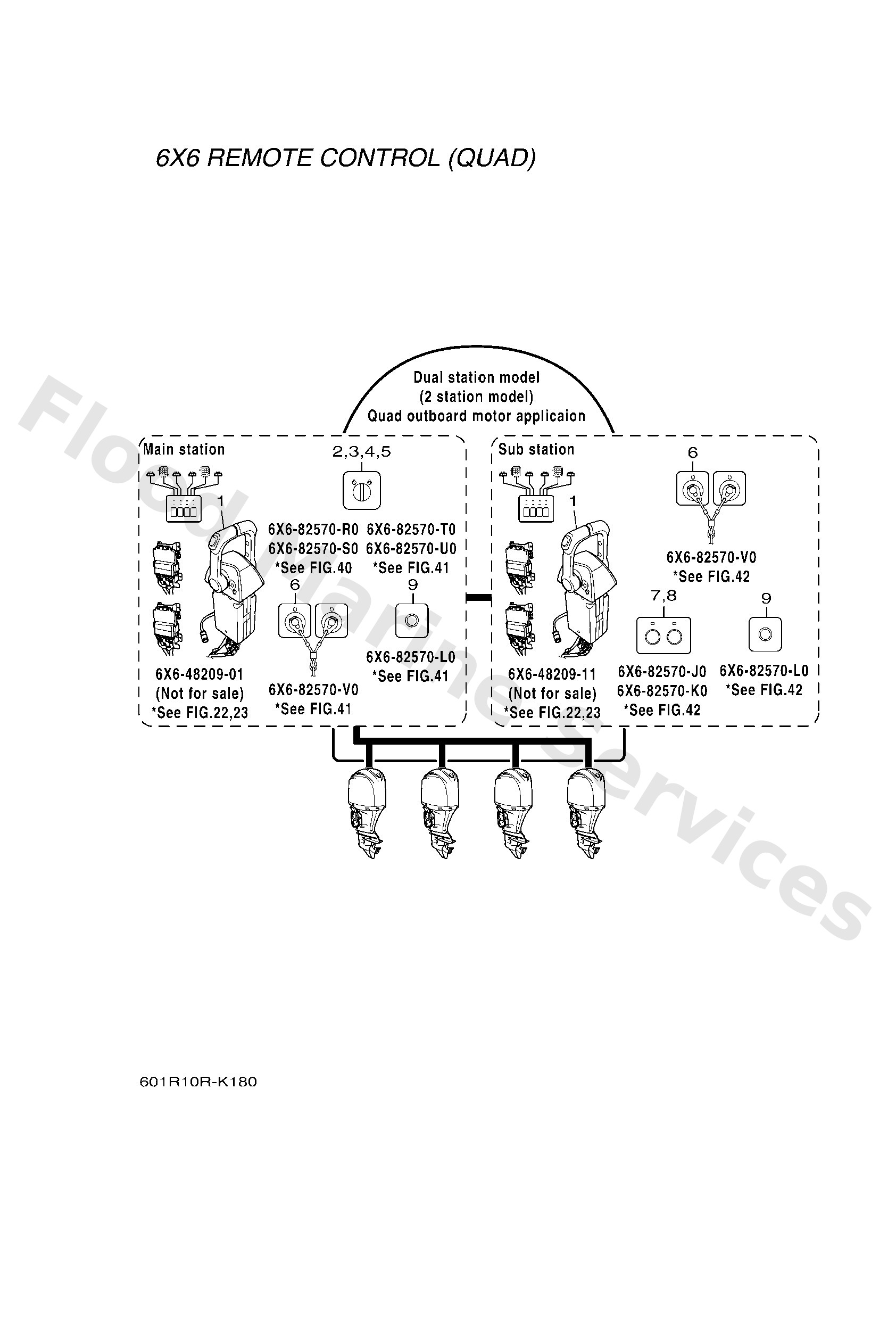

Diagram: LAYOUT CHART 4 (QUAD)
