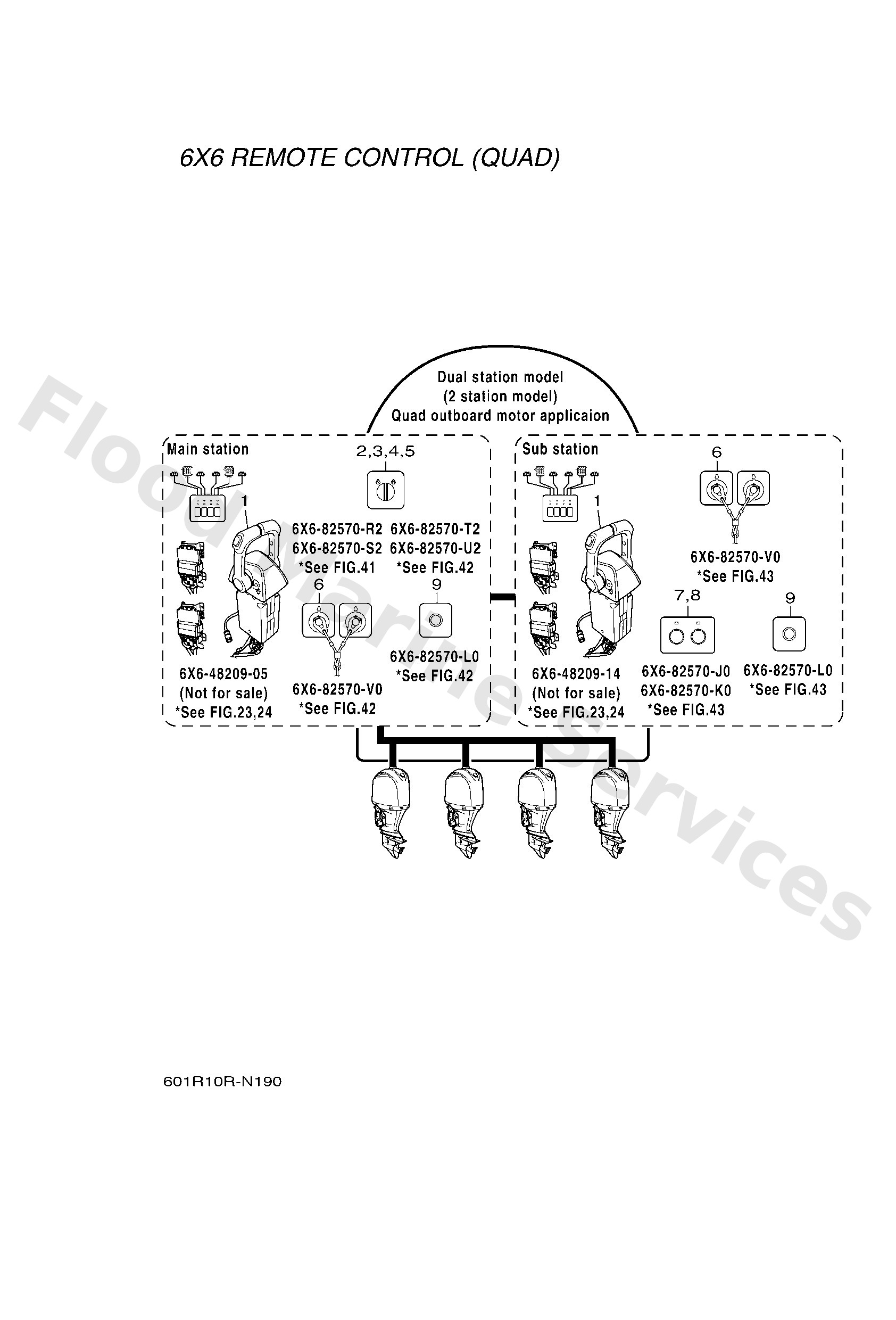

Diagram: LAYOUT CHART 4 (QUAD)

Diagram

Parts List

6X64820905 (NOT FOR SALE)
Remote Control assembly (Quad)
Diagram Reference: 1
Get Part
6X64820914 (NOT FOR SALE)
Remote Control assembly (Quad)
Diagram Reference: 1
Get Part
6X682570R2 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 2
Get Part
6X682570S2 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 3
Get Part
6X682570T2 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 4
Get Part
6X682570U2 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 5
Get Part
6X682570V0 (STATION MAIN & SUB)
Panel switch assembly
Diagram Reference: 6
Get Part
6X682570J0 (STATION SUB)
Panel switch assembly
Diagram Reference: 7
Get Part
6X682570K0 (STATION SUB)
Panel switch assembly
Diagram Reference: 8
Get Part
6X682570L0 (STATION MAIN & SUB)
Panel switch assembly
Diagram Reference: 9
Get Part
