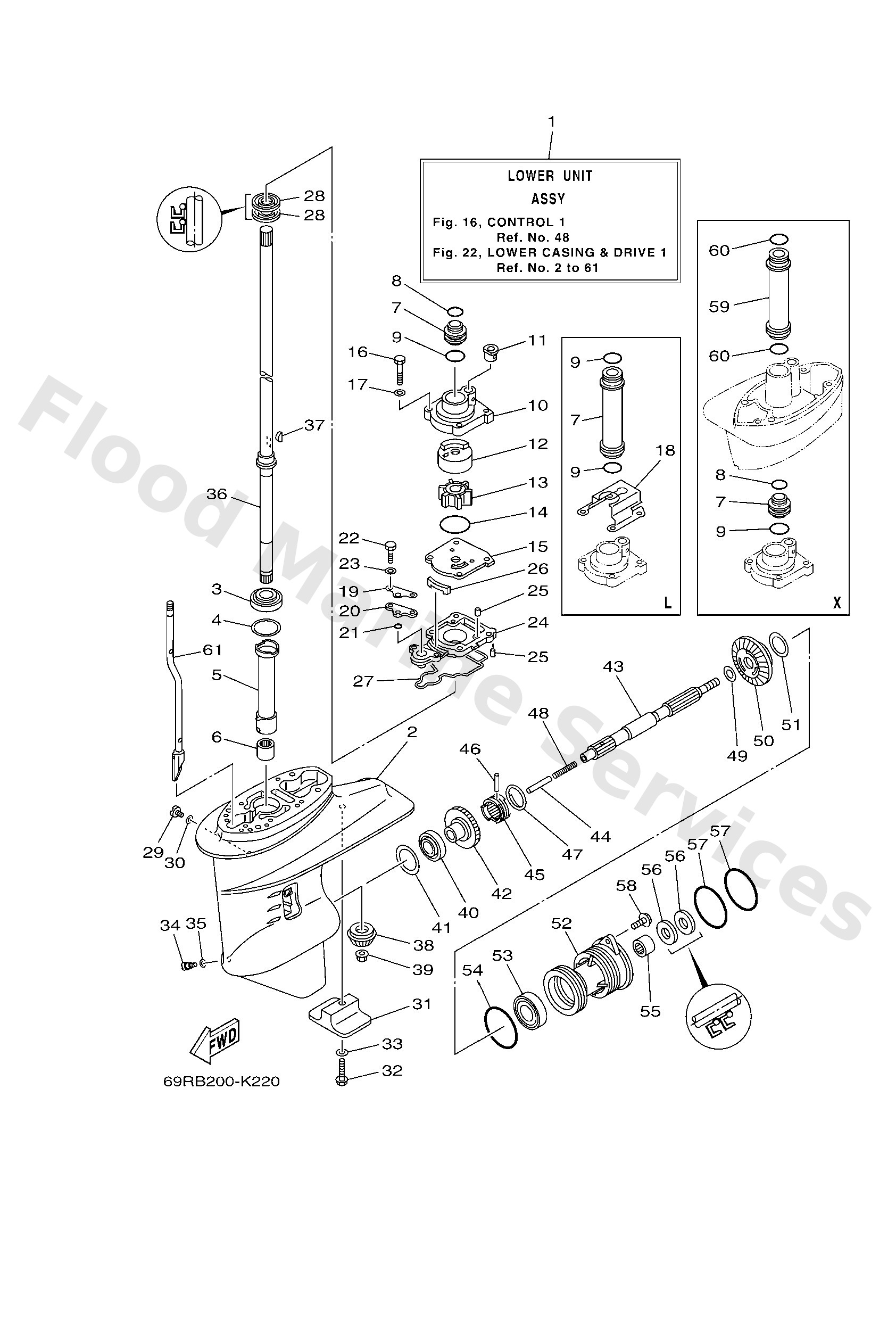

Parts List
Lower unit assembly
Diagram Reference: 1
Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Bearing(61n)
Diagram Reference: 3
Shim (t:0.70mm)
Diagram Reference: 4
Shim (t:1.0mm)
Diagram Reference: 4
Shim (t:1.1mm)
Diagram Reference: 4
Shim (t:1.2mm)
Diagram Reference: 4
Shim (t:1.3mm)
Diagram Reference: 4
Shim (t:1.4mm)
Diagram Reference: 4
Shim (t:1.5mm)
Diagram Reference: 4
Shim (t:1.6mm)
Diagram Reference: 4
Sleeve, drive shaft
Diagram Reference: 5
Bearing, cylindrical(6j8)
Diagram Reference: 6
Tube, water
Diagram Reference: 7
Tube, water
Diagram Reference: 7
O-ring
Diagram Reference: 8
O-ring
Diagram Reference: 9
Housing, water pump
Diagram Reference: 10
Damper, water seal 3
Diagram Reference: 11
Insert, cartridge
Diagram Reference: 12
Insert, cartridge
Diagram Reference: 12
Impeller
Diagram Reference: 13
O-ring
Diagram Reference: 14
Outer plate, cartridge
Diagram Reference: 15
Outer plate, cartridge
Diagram Reference: 15
Bolt (682)
Diagram Reference: 16
Washer, plain (646)
Diagram Reference: 17
Plate
Diagram Reference: 18
Bracket
Diagram Reference: 19
Plate
Diagram Reference: 20
O-ring
Diagram Reference: 21
Bolt
Diagram Reference: 22
Housing, bearing
Diagram Reference: 24
Pin, dowel (688)
Diagram Reference: 25
Seal
Diagram Reference: 26
Packing, lower casing
Diagram Reference: 27
Oil seal (22x36x6-663)
Diagram Reference: 28
Plug, straight screw
Diagram Reference: 29
Gasket
Diagram Reference: 30
Anode
Diagram Reference: 31
Bolt, flange(4nx)
Diagram Reference: 32
Washer, tooth
Diagram Reference: 33
Plug, drain
Diagram Reference: 34
Drive shaft assembly
Diagram Reference: 36
Drive shaft assembly
Diagram Reference: 36
Drive Shaft assembly
Diagram Reference: 36
Key, woodruff (697)
Diagram Reference: 37
Pinion
Diagram Reference: 38
Nut(6j8)
Diagram Reference: 39
Brg,cyl-cal roller 0.19g nt
Diagram Reference: 40
Shim (t:1.0mm)
Diagram Reference: 41
Shim (t:1.1mm)
Diagram Reference: 41
Shim (t:1.2mm)
Diagram Reference: 41
Shim (t:1.3mm)
Diagram Reference: 41
Shim (t:1.4mm)
Diagram Reference: 41
Gear
Diagram Reference: 42
Shaft, propeller
Diagram Reference: 43
Plunger,shift
Diagram Reference: 44
Clutch, dog
Diagram Reference: 45
Pin straight 648456320000
Diagram Reference: 46
Ring, cross pin
Diagram Reference: 47
Spring compression648456360000
Diagram Reference: 48
Washer, plate(663)
Diagram Reference: 49
Gear
Diagram Reference: 50
Shim (t:1.0mm)
Diagram Reference: 51
Shim (t:1.1mm)
Diagram Reference: 51
Shim (t:1.2mm)
Diagram Reference: 51
Shim (t:1.3mm)
Diagram Reference: 51
Cap, lower casing
Diagram Reference: 52
Bearing(2hr)
Diagram Reference: 53
O-ring
Diagram Reference: 54
Brg,cyl-cal roller 21g nt
Diagram Reference: 55
Oil seal
Diagram Reference: 56
O-ring
Diagram Reference: 57
Bolt, hexagon w/w deep recess
Diagram Reference: 58
Shift cam assembly
Diagram Reference: 61
Shift cam assembly
Diagram Reference: 61
Shift cam assembly
Diagram Reference: 61
