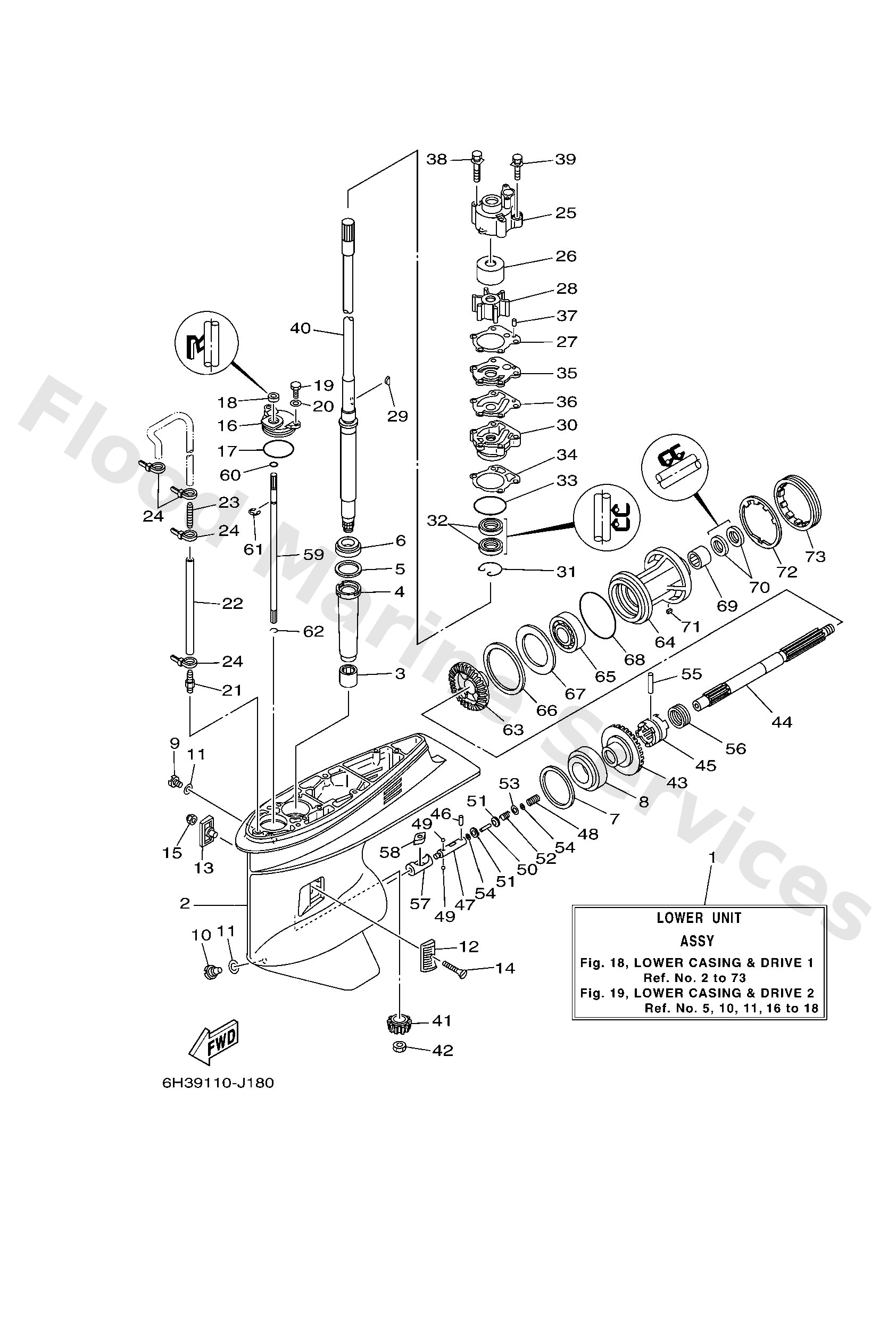

Parts List
Lower unit assembly
Diagram Reference: 1
Lower casing set
Diagram Reference: 2
Bearing, needle (688)
Diagram Reference: 3
Sleeve, drive shaft
Diagram Reference: 4
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Shim (t:0.40mm)
Diagram Reference: 5
Shim (t:0.50mm)
Diagram Reference: 5
Shim (t:0.10mm)
Diagram Reference: 5
Brg,tapered roller 50mm (688)
Diagram Reference: 6
Shim (t:0.15mm)
Diagram Reference: 7
Shim (t:0.50mm)
Diagram Reference: 7
Shim (t:0.40mm)
Diagram Reference: 7
Shim (t:0.30mm)
Diagram Reference: 7
Shim (t:0.18mm)
Diagram Reference: 7
Shim (t:0.12mm)
Diagram Reference: 7
Shim (t:0.10mm)
Diagram Reference: 7
Bearing(6b0)
Diagram Reference: 8
Plug, straight screw
Diagram Reference: 9
Plug, drain
Diagram Reference: 10
Gasket
Diagram Reference: 11
Cover, water inlet
Diagram Reference: 12
Cover, water inlet
Diagram Reference: 13
Screw, countersunk(692)
Diagram Reference: 14
Nut nylon (sus)(ex4)
Diagram Reference: 15
Plate
Diagram Reference: 16
O-ring (620)
Diagram Reference: 17
Oil seal
Diagram Reference: 18
Bolt, hexagon deep recess
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Nipple, hose
Diagram Reference: 21
Hose (l250)
Diagram Reference: 22
End, nipple
Diagram Reference: 23
Clamp
Diagram Reference: 24
Housing, water pump 1
Diagram Reference: 25
Insert, cartridge
Diagram Reference: 26
Gasket,water pump 1
Diagram Reference: 27
Impeller
Diagram Reference: 28
Key, woodruff (688)
Diagram Reference: 29
Housing, water pump
Diagram Reference: 30
Circlip
Diagram Reference: 31
Oil seal
Diagram Reference: 32
O-ring
Diagram Reference: 33
Gasket,water pump 2
Diagram Reference: 34
Outer plate, cartridge
Diagram Reference: 35
Gasket,cartridge 0uter plate
Diagram Reference: 36
Pin, dowel (688)
Diagram Reference: 37
Bolt, with washer(6h0)
Diagram Reference: 38
Bolt, with washer(6h0)
Diagram Reference: 39
Drive shaft comp.
Diagram Reference: 40
Pinion
Diagram Reference: 41
Nut, hexagon (688)
Diagram Reference: 42
Gear
Diagram Reference: 43
Shaft, propeller
Diagram Reference: 44
Clutch, dog
Diagram Reference: 45
Pin, dowel(6h1)
Diagram Reference: 46
Slide, shift
Diagram Reference: 47
Spring, compression(6h1)
Diagram Reference: 48
Ball
Diagram Reference: 49
Shaft, free 1
Diagram Reference: 50
Plunger, shift
Diagram Reference: 51
Spring (6h1)
Diagram Reference: 52
Washer, plate 8077743700
Diagram Reference: 53
Nut, spring (6h1)
Diagram Reference: 54
Pin, straight (688)
Diagram Reference: 55
Ping, cross pin
Diagram Reference: 56
Shifter
Diagram Reference: 57
Cam, shift
Diagram Reference: 58
Rod, shift 2
Diagram Reference: 59
O-ring (11m)
Diagram Reference: 60
Circlip(2r6)
Diagram Reference: 61
Circlip (6e5)
Diagram Reference: 62
Gear 2
Diagram Reference: 63
Housing, bearing
Diagram Reference: 64
Brg,r-b 6207 72mm 280g (688)
Diagram Reference: 65
Shim (t:0.18mm)
Diagram Reference: 66
Shim (t:0.15mm)
Diagram Reference: 66
Shim (t:0.12mm)
Diagram Reference: 66
Shim (t:0.10mm)
Diagram Reference: 66
Shim (t:0.30mm)
Diagram Reference: 66
Shim (t:0.40mm)
Diagram Reference: 66
Shim (t:0.50mm)
Diagram Reference: 66
Washer, thrust 2
Diagram Reference: 67
O-ring(6h1)
Diagram Reference: 68
Brg,needle
Diagram Reference: 69
Key, strait(663)
Diagram Reference: 71
Washer, claw
Diagram Reference: 72
Nut
Diagram Reference: 73
