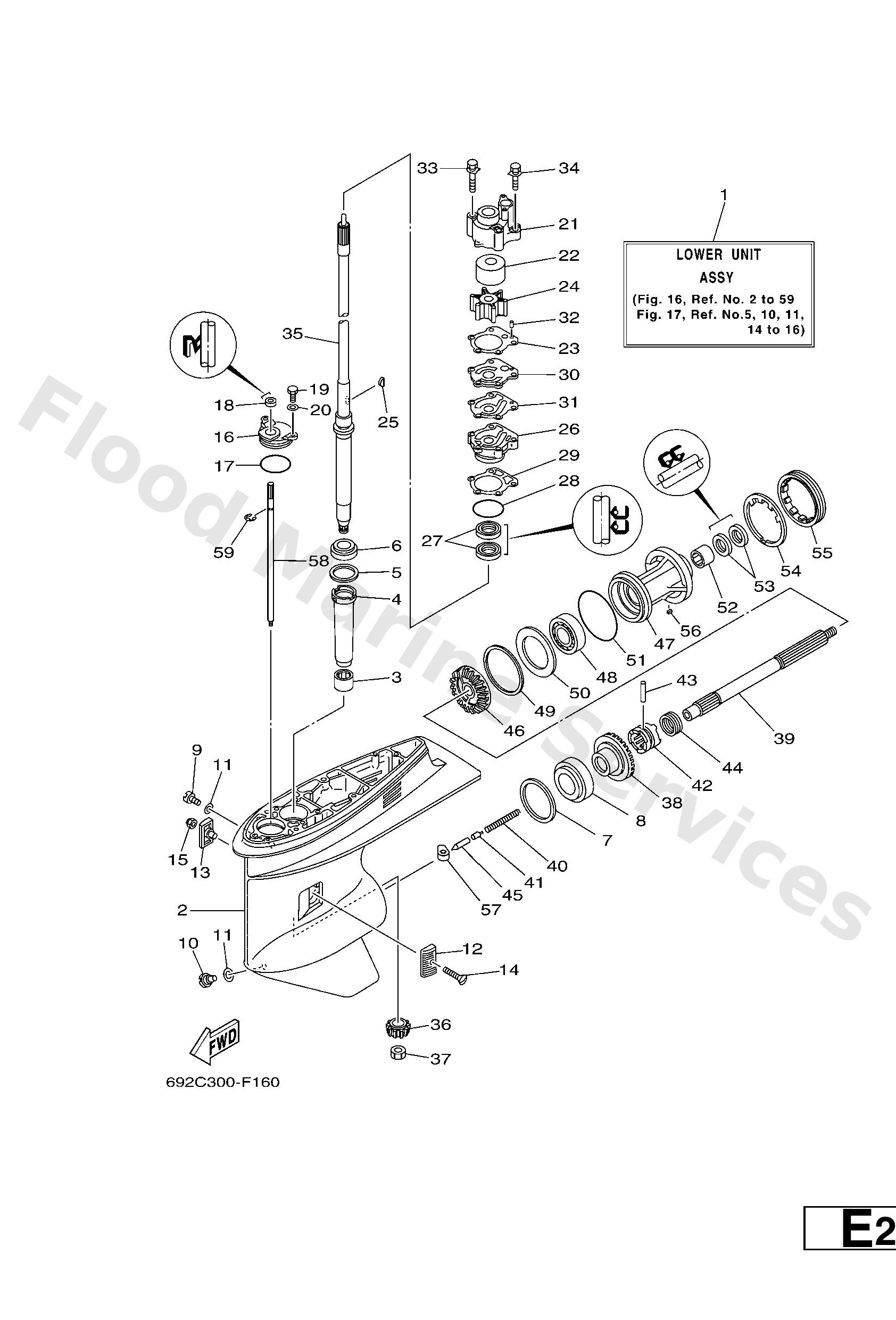

Parts List
Lower unit assembly
Diagram Reference: 1
Lower casing set
Diagram Reference: 2
Bearing, needle (688)
Diagram Reference: 3
Sleeve, drive shaft
Diagram Reference: 4
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Shim (t:0.40mm)
Diagram Reference: 5
Shim (t:0.50mm)
Diagram Reference: 5
Shim (t:0.10mm)
Diagram Reference: 5
Brg,tapered roller 50mm (688)
Diagram Reference: 6
Shim (t:0.10mm)
Diagram Reference: 7
Shim (t:0.50mm)
Diagram Reference: 7
Shim (t:0.40mm)
Diagram Reference: 7
Shim (t:0.30mm)
Diagram Reference: 7
Shim (t:0.18mm)
Diagram Reference: 7
Shim (t:0.15mm)
Diagram Reference: 7
Shim (t:0.12mm)
Diagram Reference: 7
Bearing(6b0)
Diagram Reference: 8
Plug, straight screw
Diagram Reference: 9
Plug, drain
Diagram Reference: 10
Gasket
Diagram Reference: 11
Cover, water inlet
Diagram Reference: 12
Cover, water inlet
Diagram Reference: 13
Screw, countersunk(692)
Diagram Reference: 14
Nut nylon (sus)(ex4)
Diagram Reference: 15
Plate
Diagram Reference: 16
O-ring (620)
Diagram Reference: 17
Oil seal
Diagram Reference: 18
Bolt, hexagon deep recess
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Housing, water pump 1
Diagram Reference: 21
Insert, cartridge
Diagram Reference: 22
Gasket,water pump 1
Diagram Reference: 23
Impeller
Diagram Reference: 24
Key, woodruff (688)
Diagram Reference: 25
Housing, water pump set
Diagram Reference: 26
Oil seal
Diagram Reference: 27
O-ring
Diagram Reference: 28
Gasket,water pump 2
Diagram Reference: 29
Outer plate, cartridge
Diagram Reference: 30
Gasket,cartridge 0uter plate
Diagram Reference: 31
Pin, dowel (688)
Diagram Reference: 32
Bolt, with washer(6h0)
Diagram Reference: 33
Bolt, with washer(6h0)
Diagram Reference: 34
Drive shaft comp.
Diagram Reference: 35
Pinion
Diagram Reference: 36
Nut, hexagon (688)
Diagram Reference: 37
Gear 1 (26t)
Diagram Reference: 38
Shaft, propeller
Diagram Reference: 39
Spring compression(663)
Diagram Reference: 40
Slide, shift
Diagram Reference: 41
Clutch, dog
Diagram Reference: 42
Pin, straight (688)
Diagram Reference: 43
Ping, cross pin
Diagram Reference: 44
Plunger, shift
Diagram Reference: 45
Gear 2 (26t)
Diagram Reference: 46
Housing, bearing
Diagram Reference: 47
Brg,r-b 6207 72mm 280g (688)
Diagram Reference: 48
Shim (t:0.10mm)
Diagram Reference: 49
Shim (t:0.12mm)
Diagram Reference: 49
Shim (t:0.15mm)
Diagram Reference: 49
Shim (t:0.18mm)
Diagram Reference: 49
Shim (t:0.30mm)
Diagram Reference: 49
Shim (t:0.40mm)
Diagram Reference: 49
Shim (t:0.50mm)
Diagram Reference: 49
Washer, thrust 2
Diagram Reference: 50
O-ring(6h1)
Diagram Reference: 51
Brg,needle
Diagram Reference: 52
Washer, claw
Diagram Reference: 54
Nut
Diagram Reference: 55
Key, strait(663)
Diagram Reference: 56
Cam, shift
Diagram Reference: 57
Rod, shift 2
Diagram Reference: 58
Circlip(2r6)
Diagram Reference: 59
