DEDHTC (2013)
LOWER CASING & DRIVE 1

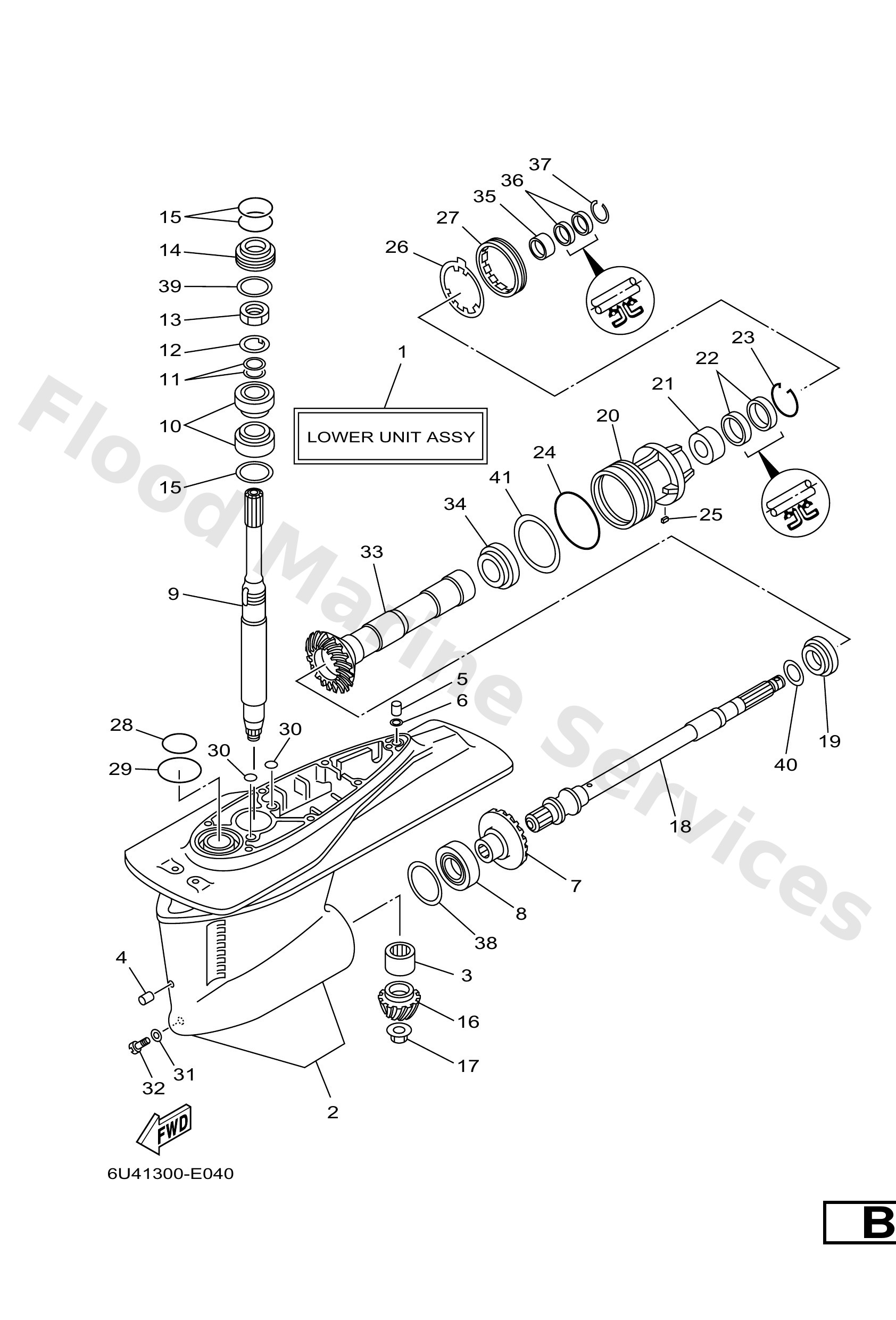

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
7
6U44556100
GR=1.784
Gear 1
Loading…
↗
12
1
6Yf-82580-C0
Loading…
↗
12
9021430M08
Washer, claw
Loading…
↗
13
9017030M18
Nut(6t5)
Loading…
↗
14
26
BEARING 1
-
Loading…
↗
14
6U1455380094
Spacer 1
Loading…
↗
15
27
-
Loading…
↗
18
6U44561101
Shaft, propeller
Loading…
↗
19
9333200099
Bearing
Loading…
↗
23
9345058M07
Circlip
Loading…
↗
26
6U14538310
Washer, claw
Loading…
↗
28
30
-
Loading…
↗
29
40
NUT 1
-
Loading…
↗
8
6T54558730
UR
Shim (t:0.18mm)
Loading…
↗
16
6U44557810
UR
Shim (t:0.12mm)
Loading…
↗
16
6T54558760
UR
Shim (t:0.50mm)
Loading…
↗
29
9321076MF8
O-ring(6u1)
Loading…
↗
34
93332000UC
Bearing
Loading…
↗
36
9310228M45
Oil seal
Loading…
↗
38
6T54558750
UR
Shim (t:0.40mm)
Loading…
↗
38
6T54558740
UR
Shim (t:0.30mm)
Loading…
↗
38
6U14556730
UR
Shim (t:0.18mm)
Loading…
↗
38
6U14556740
UR
Shim (t:0.30mm)
Loading…
↗
38
6U14556720
UR
Shim (t:0.15mm)
Loading…
↗
38
6U14556710
UR
Shim (t:0.12mm)
Loading…
↗
38
6U14556700
UR
Shim (t:0.10mm)
Loading…
↗
39
6T54558710
UR
Shim (t:0.12mm)
Loading…
↗
39
6T54558720
UR
Shim (t:0.15mm)
Loading…
↗
39
6T54558700
UR
Shim (t:0.10mm)
Loading…
↗
10
6U14557730
UR
Shim (t:0.18mm)
Loading…
↗
12
6U14557720
UR
Shim (t:0.15mm)
Loading…
↗
33
6U14557760
UR
Shim (t:0.50mm)
Loading…
↗
34
6U14557750
UR
Shim (t:0.40mm)
Loading…
↗
39
6U44557860
UR
Shim (t:0.50mm)
Loading…
↗
41
6U14557740
UR
Shim (t:0.30mm)
Loading…
↗
