Parts List

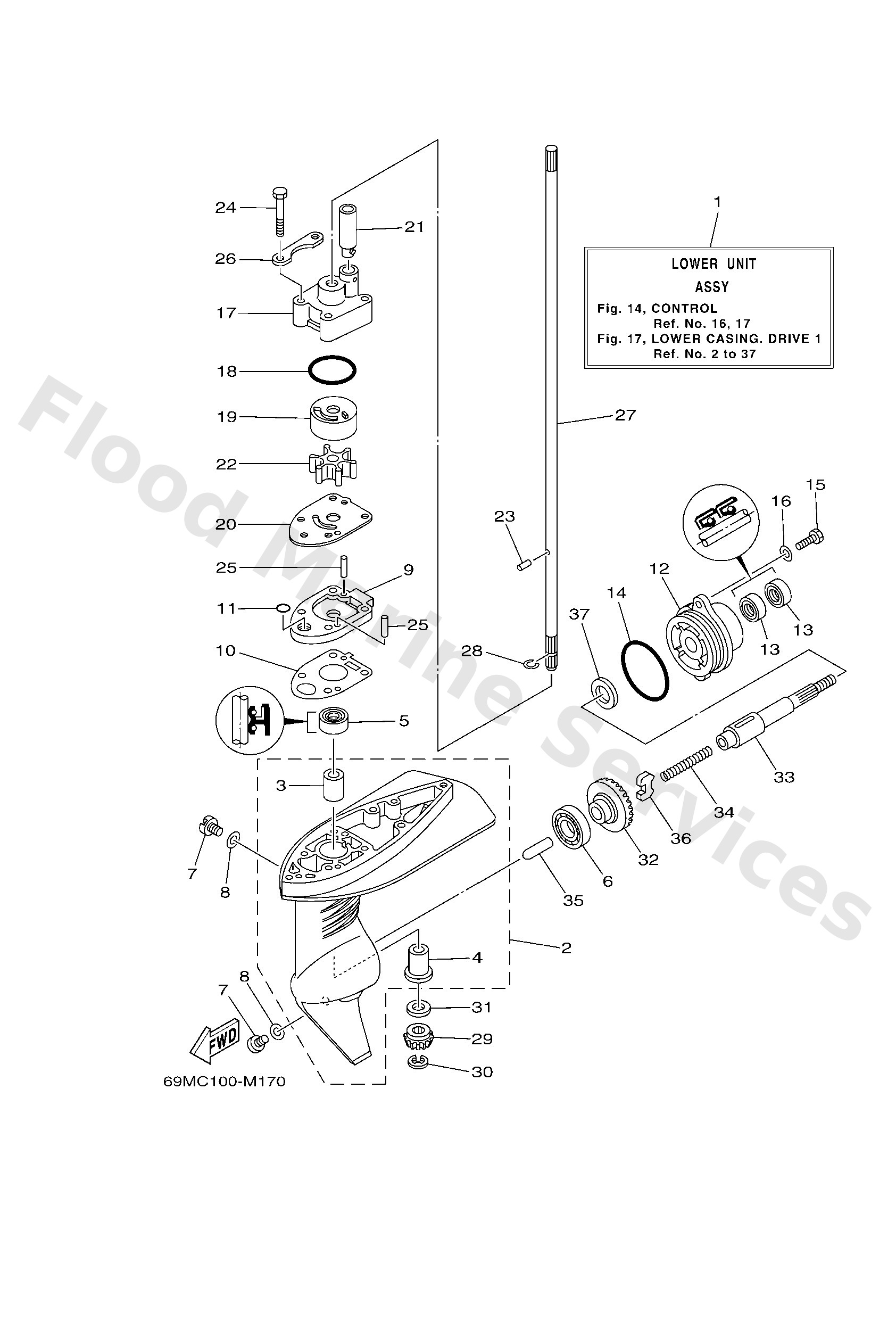

Lower Unit assembly
Diagram Reference: 1
Lower unit ass.f2.5 court
Diagram Reference: 1
Casing,lower
Diagram Reference: 2
Bushing, d/shaft 1 90380-09m23
Diagram Reference: 3
Bushing, d/shaft 2 90381-09m08
Diagram Reference: 4
Oil seal
Diagram Reference: 5
Bearing
Diagram Reference: 6
Plug, straight screw
Diagram Reference: 7
Gasket
Diagram Reference: 8
Plate
Diagram Reference: 9
Packing,lower casing
Diagram Reference: 10
O-ring
Diagram Reference: 11
Cap,lower casing
Diagram Reference: 12
Oil seal
Diagram Reference: 13
O-ring
Diagram Reference: 14
Bolt, hexagon deep recess
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Housing, water pump
Diagram Reference: 17
O-ring(6l5)
Diagram Reference: 18
Insert, cartridge
Diagram Reference: 19
Outer plate,cartridge
Diagram Reference: 20
Damper, water seal 2
Diagram Reference: 21
Impeller
Diagram Reference: 22
Pin, dowel(6l5)
Diagram Reference: 23
Bolt (682)
Diagram Reference: 24
Pin. dowel. (647)
Diagram Reference: 25
Plate
Diagram Reference: 26
Shaft, drive
Diagram Reference: 27
Shaft, drive
Diagram Reference: 27
Circlip
Diagram Reference: 28
Pinion
Diagram Reference: 29
Circlip(53l)
Diagram Reference: 30
Shim (T)2.0Mm)
Diagram Reference: 31
Shim (t:2.1mm)
Diagram Reference: 31
Shim (t:2.2mm)
Diagram Reference: 31
Shim (t:2.3mm)
Diagram Reference: 31
Gear
Diagram Reference: 32
Shaft, propeller
Diagram Reference: 33
Spring, compression 6164563600
Diagram Reference: 34
Plunger, shift
Diagram Reference: 35
Clutch, dog
Diagram Reference: 36
Washer 6474556600
Diagram Reference: 37
