Parts List

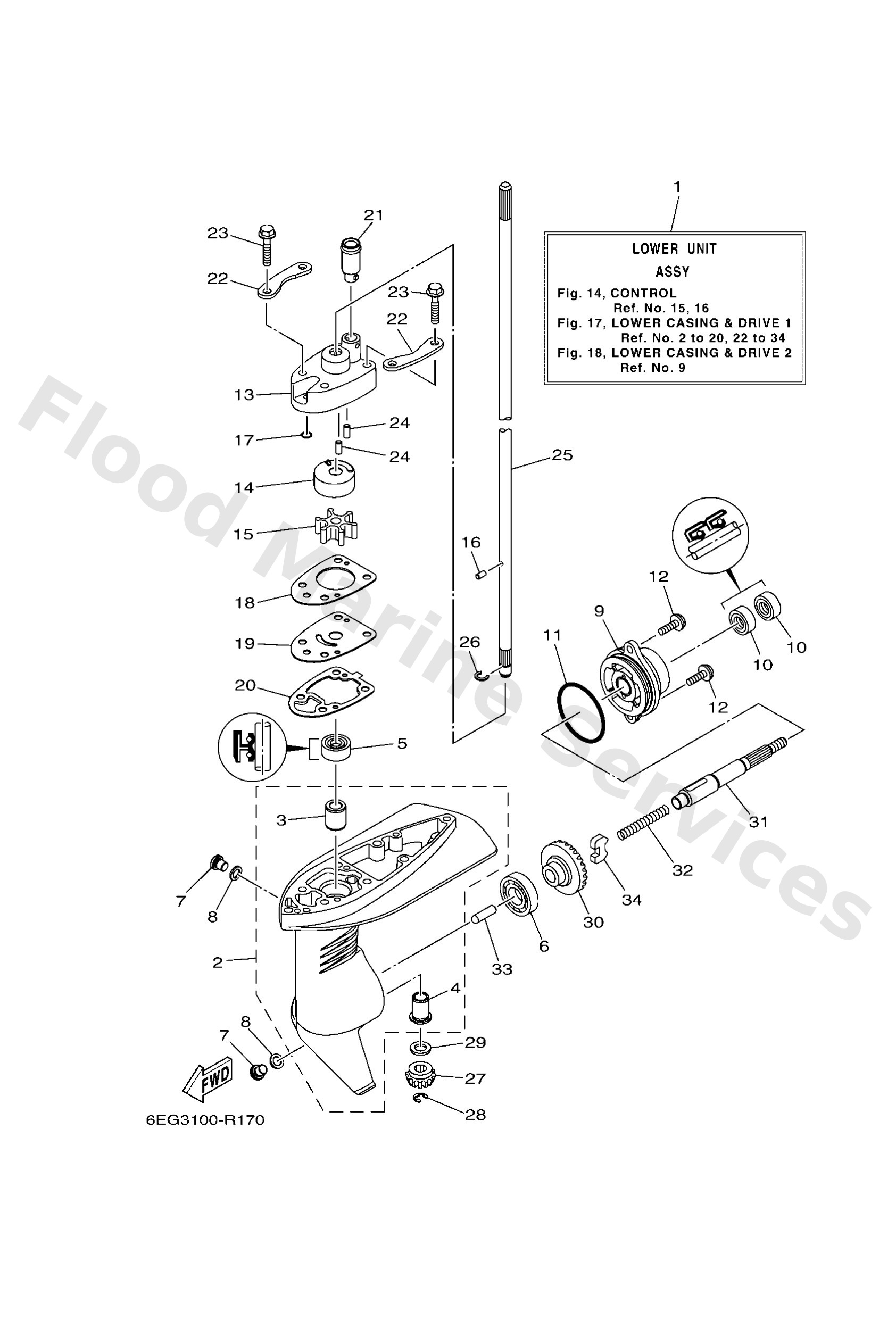

Lower unit assembly
Diagram Reference: 1
Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Bushing, d/shaft 1 90380-09m23
Diagram Reference: 3
Bushing, d/shaft 2 90381-09m08
Diagram Reference: 4
Oil seal
Diagram Reference: 5
Bearing
Diagram Reference: 6
Plug, straight screw
Diagram Reference: 7
Gasket
Diagram Reference: 8
Cap, lower casing
Diagram Reference: 9
Oil seal
Diagram Reference: 10
O-ring
Diagram Reference: 11
Bolt, with washer(6r6)
Diagram Reference: 12
Housing, water pum
Diagram Reference: 13
Insert, cartridge
Diagram Reference: 14
Impeller
Diagram Reference: 15
Pin, dowel(6l5)
Diagram Reference: 16
O-ring
Diagram Reference: 17
Gasket, water pump
Diagram Reference: 18
Outer plate, cartr
Diagram Reference: 19
Packing, lower cas
Diagram Reference: 20
Damper, water seal 2
Diagram Reference: 21
Plate
Diagram Reference: 22
Bolt(j52)
Diagram Reference: 23
Pin, dowel (688)
Diagram Reference: 24
Shaft, drive
Diagram Reference: 25
Shaft, drive
Diagram Reference: 25
Clip(6l5)
Diagram Reference: 26
Pinion
Diagram Reference: 27
Circlip(53l)
Diagram Reference: 28
Shim
Diagram Reference: 29
Gear
Diagram Reference: 30
Shaft, propeller
Diagram Reference: 31
Spring, compression 6164563600
Diagram Reference: 32
Plunger, shift
Diagram Reference: 33
Clutch, dog
Diagram Reference: 34
