Parts List

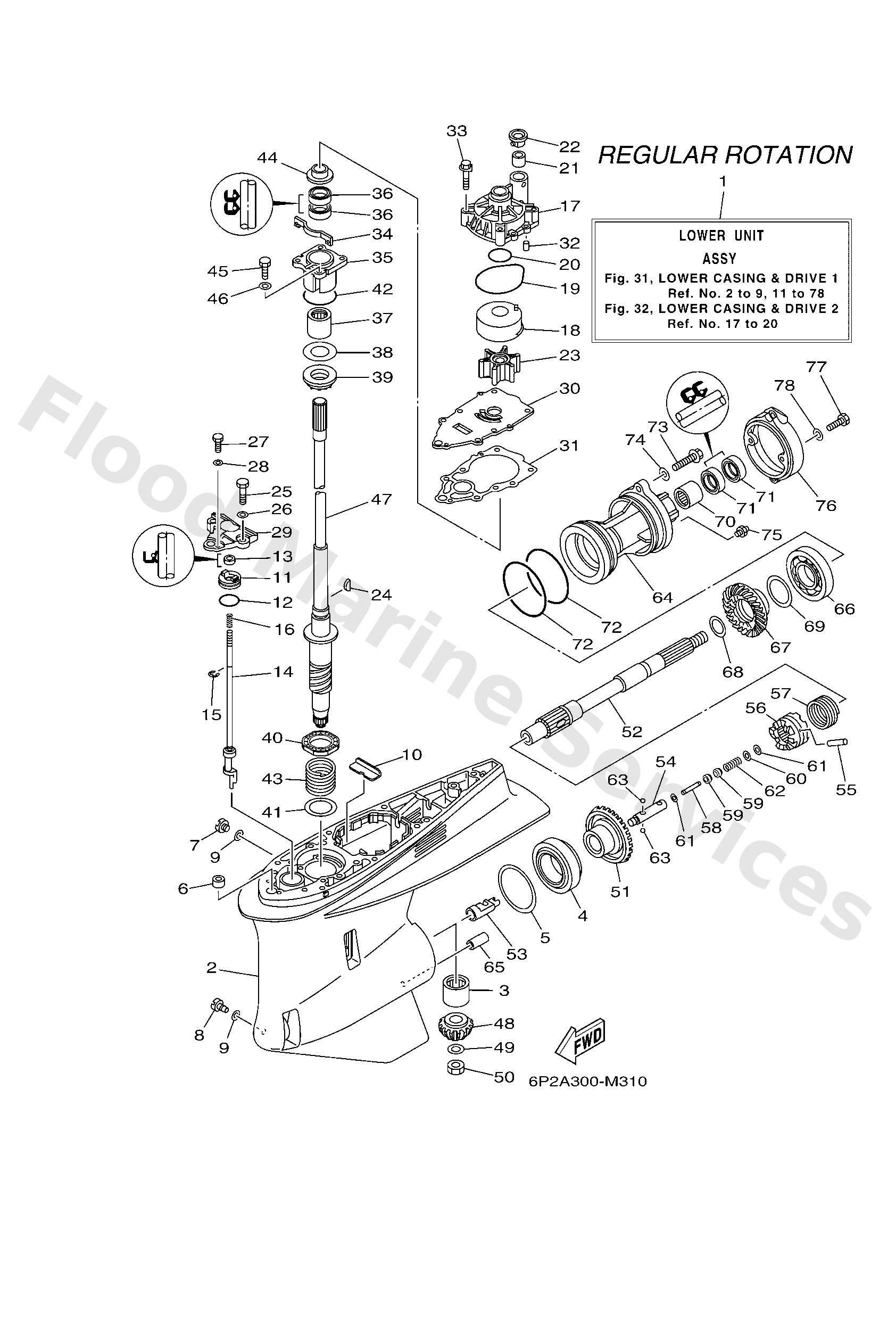

Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Ball bearing
Diagram Reference: 3
Bearing(61a)
Diagram Reference: 4
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Shim (t:0.40mm)
Diagram Reference: 5
Shim (t:0.50mm)
Diagram Reference: 5
Shim (t:0.10mm)
Diagram Reference: 5
Damper, water seal 2
Diagram Reference: 6
Plug, straight screw
Diagram Reference: 7
Plug, drain
Diagram Reference: 8
Gasket
Diagram Reference: 9
Guide, seal damper
Diagram Reference: 10
Plate
Diagram Reference: 11
O-ring(6l5)
Diagram Reference: 12
Oil seal
Diagram Reference: 13
Shift cam assembly
Diagram Reference: 14
Circlip(2r6)
Diagram Reference: 15
Spring, compression (663)
Diagram Reference: 16
Housing, water pump
Diagram Reference: 17
Insert, cartridge
Diagram Reference: 18
O-ring (6e5)
Diagram Reference: 19
O-ring (6g8)
Diagram Reference: 20
Damper, water seal 1
Diagram Reference: 21
Cover, water pump housing
Diagram Reference: 22
Impeller
Diagram Reference: 23
Key, woodruff (6e5)
Diagram Reference: 24
Bolt, hexagon (fj1)
Diagram Reference: 25
Washer, plain (663)
Diagram Reference: 26
Bolt, hexagon deep recess
Diagram Reference: 27
Washer, plain (646)
Diagram Reference: 28
Cover, water pump housing
Diagram Reference: 29
Outer plate, cartridge
Diagram Reference: 30
Gasket, water pump
Diagram Reference: 31
Pin, dowel (614)
Diagram Reference: 32
Bolt, with washer
Diagram Reference: 33
Plate, seal
Diagram Reference: 34
Housing, bearing
Diagram Reference: 35
Oil seal (6e5)
Diagram Reference: 36
Bearing, cylindrical(6k0)
Diagram Reference: 37
Shim (t:0.10mm)
Diagram Reference: 38
Shim (t:0.12mm)
Diagram Reference: 38
Shim (t:0.15mm)
Diagram Reference: 38
Shim (t:0.18mm)
Diagram Reference: 38
Shim (t:0.30mm)
Diagram Reference: 38
Shim (t:0.40mm)
Diagram Reference: 38
Shim (t:0.50mm)
Diagram Reference: 38
Bearing
Diagram Reference: 39
Bearing
Diagram Reference: 40
Washer, plate
Diagram Reference: 41
O-ring (70e)
Diagram Reference: 42
Spring, compression
Diagram Reference: 43
Cover, oil seal
Diagram Reference: 44
Bolt (62g)
Diagram Reference: 45
Drive shaft comp.
Diagram Reference: 47
Pinion
Diagram Reference: 48
Washer, plate(6t5)
Diagram Reference: 49
Nut(6t5)
Diagram Reference: 50
Gear set
Diagram Reference: 51
Shaft, propeller
Diagram Reference: 52
Shifter
Diagram Reference: 53
Slide, shift
Diagram Reference: 54
Pin, cross
Diagram Reference: 55
Clutch, dog
Diagram Reference: 56
Ring, cross pin
Diagram Reference: 57
Shaft, free 1
Diagram Reference: 58
Plunger, shift
Diagram Reference: 59
Washer, plate(61a)
Diagram Reference: 60
Nut, spring (6h1)
Diagram Reference: 61
Spring, compression(61a)
Diagram Reference: 62
Ball
Diagram Reference: 63
Housing, bearing
Diagram Reference: 64
Pin, dowel
Diagram Reference: 65
Bearing(61a)
Diagram Reference: 66
Gear
Diagram Reference: 67
Shim (t:1.80mm)
Diagram Reference: 68
Shim (t:1.90mm)
Diagram Reference: 68
Shim (t:2.00mm)
Diagram Reference: 68
Shim (t:2.10mm)
Diagram Reference: 68
Shim (t:2.20mm)
Diagram Reference: 68
Shim (t:0.30mm)
Diagram Reference: 69
Shim (t:0.50mm)
Diagram Reference: 69
Shim (t:0.40mm)
Diagram Reference: 69
Shim (t:0.18mm)
Diagram Reference: 69
Shim (t:0.15mm)
Diagram Reference: 69
Shim (t:0.12mm)
Diagram Reference: 69
Shim (t:0.10mm)
Diagram Reference: 69
Bearing
Diagram Reference: 70
Oil seal
Diagram Reference: 71
O-ring (705)
Diagram Reference: 72
Bolt, flange
Diagram Reference: 73
Washer, plate
Diagram Reference: 74
Nipple, grease(6t4)
Diagram Reference: 75
Cap, lower casing
Diagram Reference: 76
Bolt, hexagon
Diagram Reference: 77
