Parts List

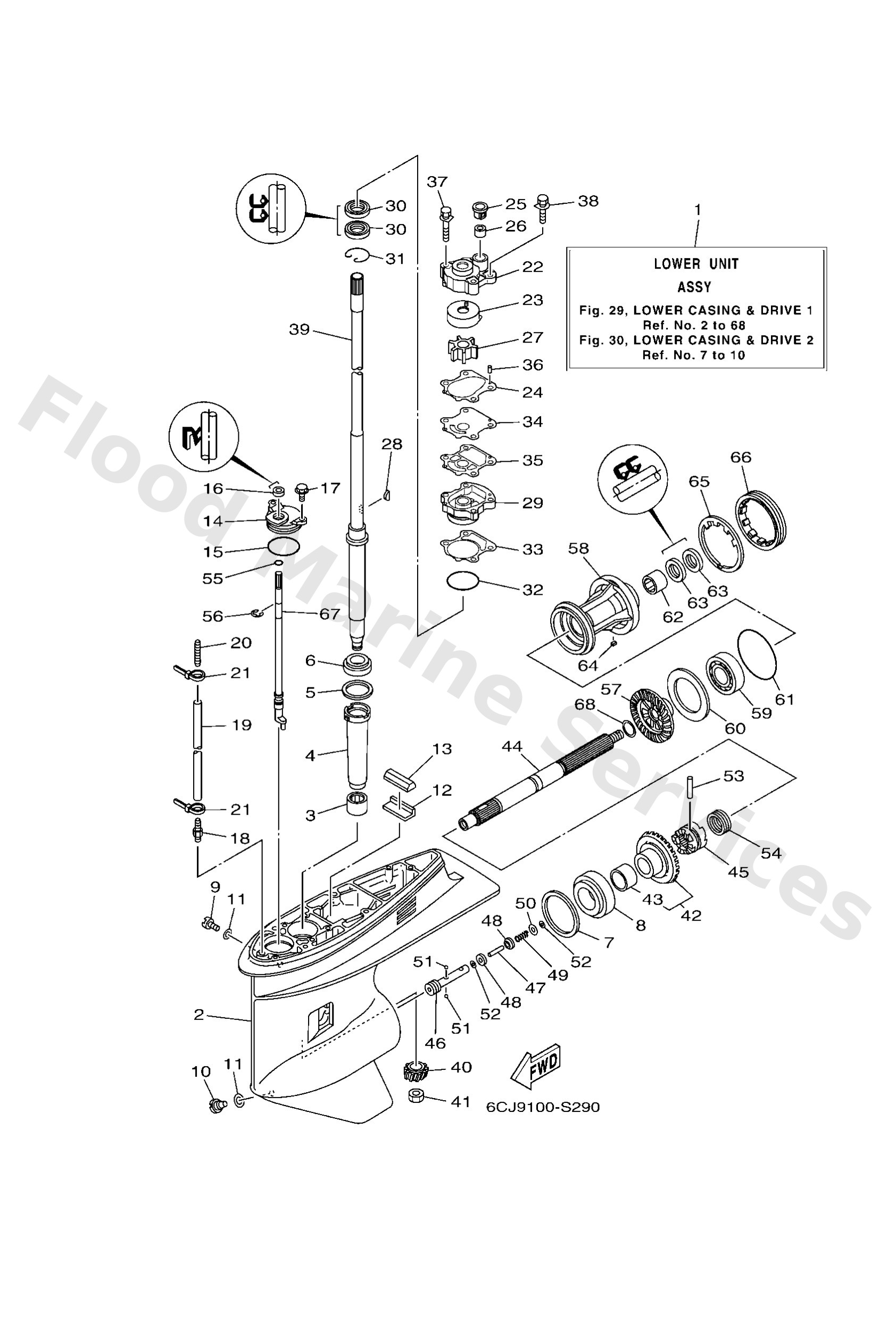

Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Bearing
Diagram Reference: 3
Sleeve, drive shaft
Diagram Reference: 4
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Shim (t:0.40mm)
Diagram Reference: 5
Shim (t:0.50mm)
Diagram Reference: 5
Shim (t:0.10mm)
Diagram Reference: 5
Brg,tapered roller 50mm (688)
Diagram Reference: 6
Shim (t:0.12mm)
Diagram Reference: 7
Shim (t:0.50mm)
Diagram Reference: 7
Shim (t:0.40mm)
Diagram Reference: 7
Shim (t:0.30mm)
Diagram Reference: 7
Shim (t:0.18mm)
Diagram Reference: 7
Shim (t:0.15mm)
Diagram Reference: 7
Shim (t:0.10mm)
Diagram Reference: 7
Bearing
Diagram Reference: 8
Plug, straight screw
Diagram Reference: 9
Plug, drain
Diagram Reference: 10
Gasket
Diagram Reference: 11
Guide, seal damper
Diagram Reference: 12
Damper, seal 2
Diagram Reference: 13
Plate
Diagram Reference: 14
O-ring (620)
Diagram Reference: 15
Oil seal
Diagram Reference: 16
Bolt, hexagon w/w deep recess
Diagram Reference: 17
Nipple, hose
Diagram Reference: 18
Hose (l250)
Diagram Reference: 19
End, nipple
Diagram Reference: 20
Clamp
Diagram Reference: 21
Housing, water pump
Diagram Reference: 22
Insert, cartridge
Diagram Reference: 23
Gasket, water pump
Diagram Reference: 24
Cover, water pump housing
Diagram Reference: 25
Damper, water seal 2
Diagram Reference: 26
Impellar
Diagram Reference: 27
Key, woodruff (697)
Diagram Reference: 28
Housing, water pump
Diagram Reference: 29
Oil seal (663)
Diagram Reference: 30
Circlip
Diagram Reference: 31
O-ring
Diagram Reference: 32
Gasket, water pump
Diagram Reference: 33
Outer plate, cartridge
Diagram Reference: 34
Gasket, cartridge
Diagram Reference: 35
Pin, dowel (688)
Diagram Reference: 36
Bolt, with washer(6b0)
Diagram Reference: 37
Bolt, with washer
Diagram Reference: 38
Drive shaft comp. (l, d: 18mm)
Diagram Reference: 39
Pinion (12t)
Diagram Reference: 40
Nut, hexagon (688)
Diagram Reference: 41
Gear 1 (28t)
Diagram Reference: 42
Bearing
Diagram Reference: 43
Shaft, propeller
Diagram Reference: 44
Clutch, dog
Diagram Reference: 45
Slide, shift
Diagram Reference: 46
Shaft, free 1
Diagram Reference: 47
Plunger, shift
Diagram Reference: 48
Spring (6h1)
Diagram Reference: 49
Washer, plate 8077743700
Diagram Reference: 50
Ball
Diagram Reference: 51
Nut, spring (6h1)
Diagram Reference: 52
Pin, straight (688)
Diagram Reference: 53
Ping, cross pin
Diagram Reference: 54
O-ring (11m)
Diagram Reference: 55
Circlip(2r6)
Diagram Reference: 56
Gear
Diagram Reference: 57
Housing, bearing
Diagram Reference: 58
Brg,r-b 6207 72mm 280g (688)
Diagram Reference: 59
Washer, thrust 2
Diagram Reference: 60
O-ring (6e5)
Diagram Reference: 61
Brg,needle
Diagram Reference: 62
Oil seal
Diagram Reference: 63
Key, strait(663)
Diagram Reference: 64
Washer, claw
Diagram Reference: 65
Nut
Diagram Reference: 66
Shift cam assembly
Diagram Reference: 67
Washer, plate
Diagram Reference: 68
