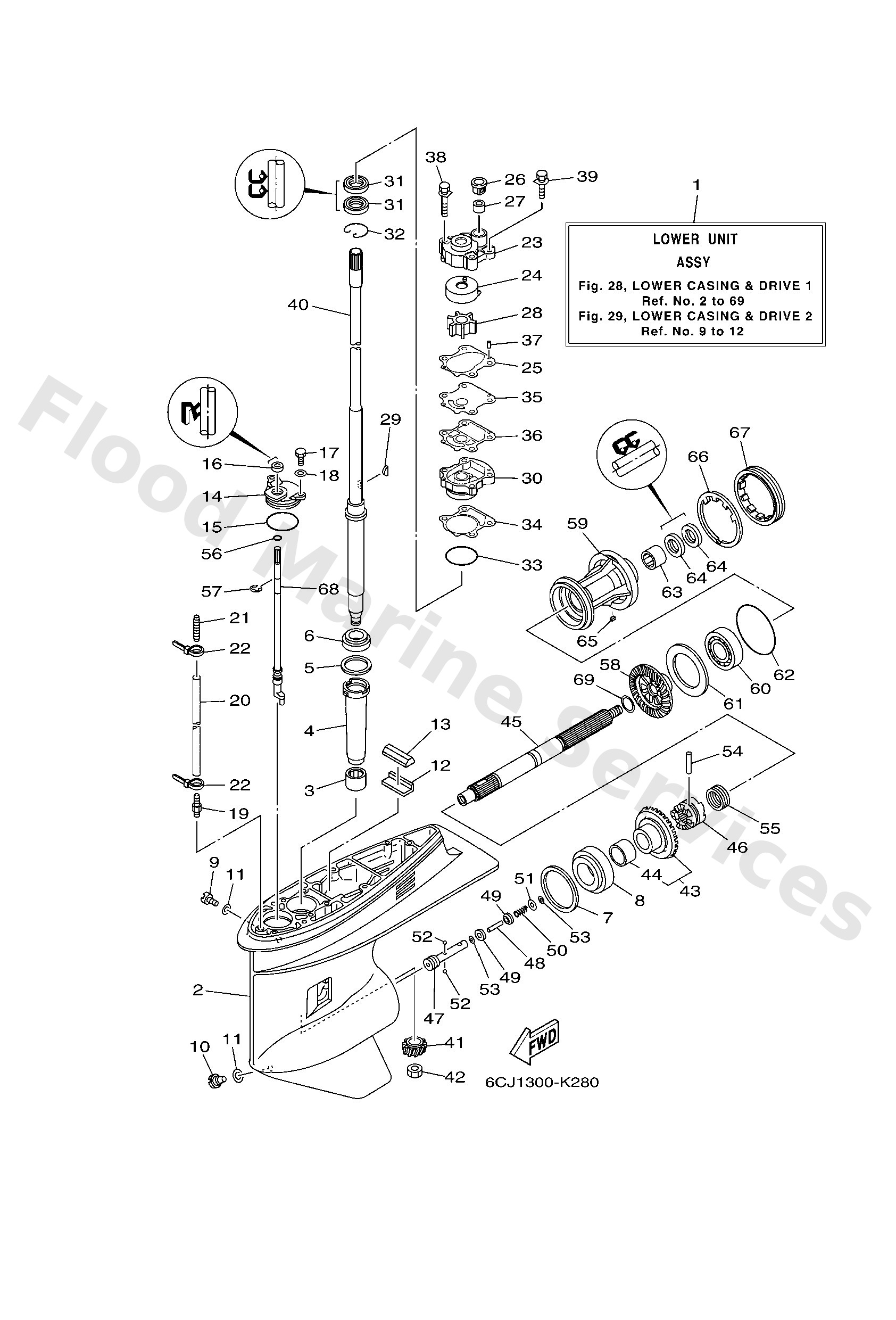

Parts List
Lower unit assembly
Diagram Reference: 1
Lower unit assembly
Diagram Reference: 1
Casing, lower
Diagram Reference: 2
Bearing
Diagram Reference: 3
Sleeve, drive shaft
Diagram Reference: 4
Shim (t:0.10mm)
Diagram Reference: 5
Shim (t:0.12mm)
Diagram Reference: 5
Shim (t:0.15mm)
Diagram Reference: 5
Shim (t:0.18mm)
Diagram Reference: 5
Shim (t:0.30mm)
Diagram Reference: 5
Shim (t:0.40mm)
Diagram Reference: 5
Shim (t:0.50mm)
Diagram Reference: 5
Brg,tapered roller 50mm (688)
Diagram Reference: 6
Shim (t:0.10mm)
Diagram Reference: 7
Shim (t:0.50mm)
Diagram Reference: 7
Shim (t:0.40mm)
Diagram Reference: 7
Shim (t:0.30mm)
Diagram Reference: 7
Shim (t:0.18mm)
Diagram Reference: 7
Shim (t:0.15mm)
Diagram Reference: 7
Shim (t:0.12mm)
Diagram Reference: 7
Bearing
Diagram Reference: 8
Plug, straight screw
Diagram Reference: 9
Plug, drain
Diagram Reference: 10
Gasket
Diagram Reference: 11
Guide, seal damper
Diagram Reference: 12
Damper, seal 2
Diagram Reference: 13
Plate
Diagram Reference: 14
O-ring (620)
Diagram Reference: 15
Oil seal
Diagram Reference: 16
Bolt, hexagon deep recess
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Nipple, hose
Diagram Reference: 19
Hose (l200)
Diagram Reference: 20
Hose (l250)
Diagram Reference: 20
End, nipple
Diagram Reference: 21
Clamp
Diagram Reference: 22
Housing, water pump
Diagram Reference: 23
Insert, cartridge
Diagram Reference: 24
Gasket, water pump
Diagram Reference: 25
Cover, water pump housing
Diagram Reference: 26
Damper, water seal 2
Diagram Reference: 27
Impellar
Diagram Reference: 28
Key, woodruff (697)
Diagram Reference: 29
Housing, water pump
Diagram Reference: 30
Oil seal (663)
Diagram Reference: 31
Circlip
Diagram Reference: 32
O-ring
Diagram Reference: 33
Gasket, water pump
Diagram Reference: 34
Outer plate, cartridge
Diagram Reference: 35
Gasket, cartridge
Diagram Reference: 36
Pin, dowel (688)
Diagram Reference: 37
Bolt, with washer(6b0)
Diagram Reference: 38
Bolt, with washer
Diagram Reference: 39
Drive shaft comp. (l, d: 18mm)
Diagram Reference: 40
Drive shaft comp. (x, d: 18mm)
Diagram Reference: 40
Pinion (12t)
Diagram Reference: 41
Nut, hexagon (688)
Diagram Reference: 42
Gear 1 (28t)
Diagram Reference: 43
Bearing
Diagram Reference: 44
Shaft, propeller
Diagram Reference: 45
Clutch, dog
Diagram Reference: 46
Slide, shift
Diagram Reference: 47
Shaft, free 1
Diagram Reference: 48
Plunger, shift
Diagram Reference: 49
Spring (6h1)
Diagram Reference: 50
Washer, plate 8077743700
Diagram Reference: 51
Ball
Diagram Reference: 52
Nut, spring (6h1)
Diagram Reference: 53
Pin, straight (688)
Diagram Reference: 54
Ping, cross pin
Diagram Reference: 55
O-ring (11m)
Diagram Reference: 56
Circlip(2r6)
Diagram Reference: 57
Gear
Diagram Reference: 58
Housing, bearing
Diagram Reference: 59
Brg,r-b 6207 72mm 280g (688)
Diagram Reference: 60
Washer, thrust 2
Diagram Reference: 61
O-ring (6e5)
Diagram Reference: 62
Brg,needle
Diagram Reference: 63
Oil seal
Diagram Reference: 64
Key, strait(663)
Diagram Reference: 65
Washer, claw
Diagram Reference: 66
Nut
Diagram Reference: 67
Shift cam assembly
Diagram Reference: 68
Washer, plate
Diagram Reference: 69
